- Secures 9U of 19 in. rack equipment up to 20.5 in. deep
- Mounts to wall or rolls on floor (with optional SRCASTER)
- Maximum load capacity of 200 lb.
- Locking steel cabinet vented at sides, front, top and bottom
- Flow-through ventilation keeps equipment cool
Application/Usage: Form Factor: Wall MountableColor: BlackMaximum Weight Capacity: 90.72 kgStatic/Stationary Weight Capacity: 90.72 kgHeight: 19.88" (504.95 mm)Width: 23.63" (600.20 mm)Depth: 21.70" (551.18 mm)Rack Height: 9URack Width: 19" (482.60 mm)Rack Depth: 20.50" (520.70 mm)Weight (Approximate): 23.50 kgPackage Contents: - SmartRack 9U Low-Profile Switch-Depth-Plus Wall-Mount Rack Enclosure Cabinet
- 18 x M6 Screws
- 18 x M6 Cage Nuts
- 18 x M6 Cup Washers
- 18 x 18-24 Screws
- Removable Mounting Plate
- 3 x Mounting Plate Screws
- 2 x Keys
- Owner's Manual
Assembly Required: NoEnvironmentally Friendly: YesEnvironmental Certification: RoHSLimited Warranty: 5 Year
[custom-specifications]
SpecificationsManufacturer: Tripp Lite
Manufacturer Part Number: SRW9UDP
Manufacturer Website Address: http://www.tripplite.com
Brand Name: Tripp Lite
Product Line: SmartRack
Product Model: SRW9UDP
Product Name: SmartRack 9U Low-Profile Switch-Depth-Plus Wall-Mount Rack Enclosure Cabinet
Marketing Information: The SRW9UDP SmartRack 9U Low-Profile Switch-Depth-Plus Wall-Mount Rack Enclosure Cabinet is designed to house EIA-standard 19-inch rack equipment in network wiring closets, retail locations, classrooms, back offices and other areas with limited floor space where you need equipment to be secure, organized and out of the way. Constructed from heavy-duty steel with a durable black powder-coated finish, the cabinet has a maximum load capacity of 200 pounds.
The side panels and front door lock securely to help prevent damage, tampering or theft. The front, top, bottom and removable side panels are vented, which allows air to flow freely and keep equipment cool. The reversible front door can open left or right by rotating the cabinet 180° before mounting. Convenient top and bottom ports allow easy cable routing.

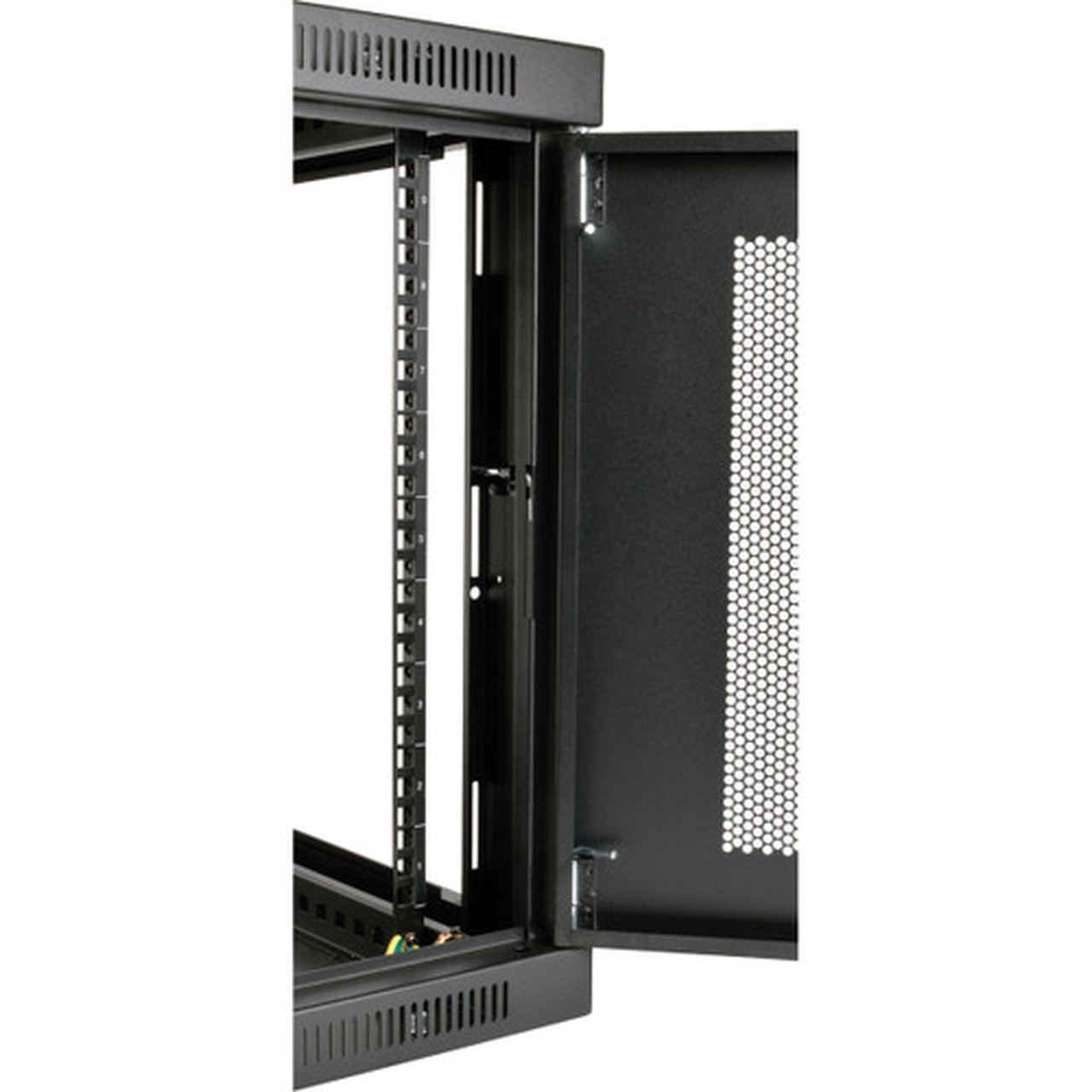

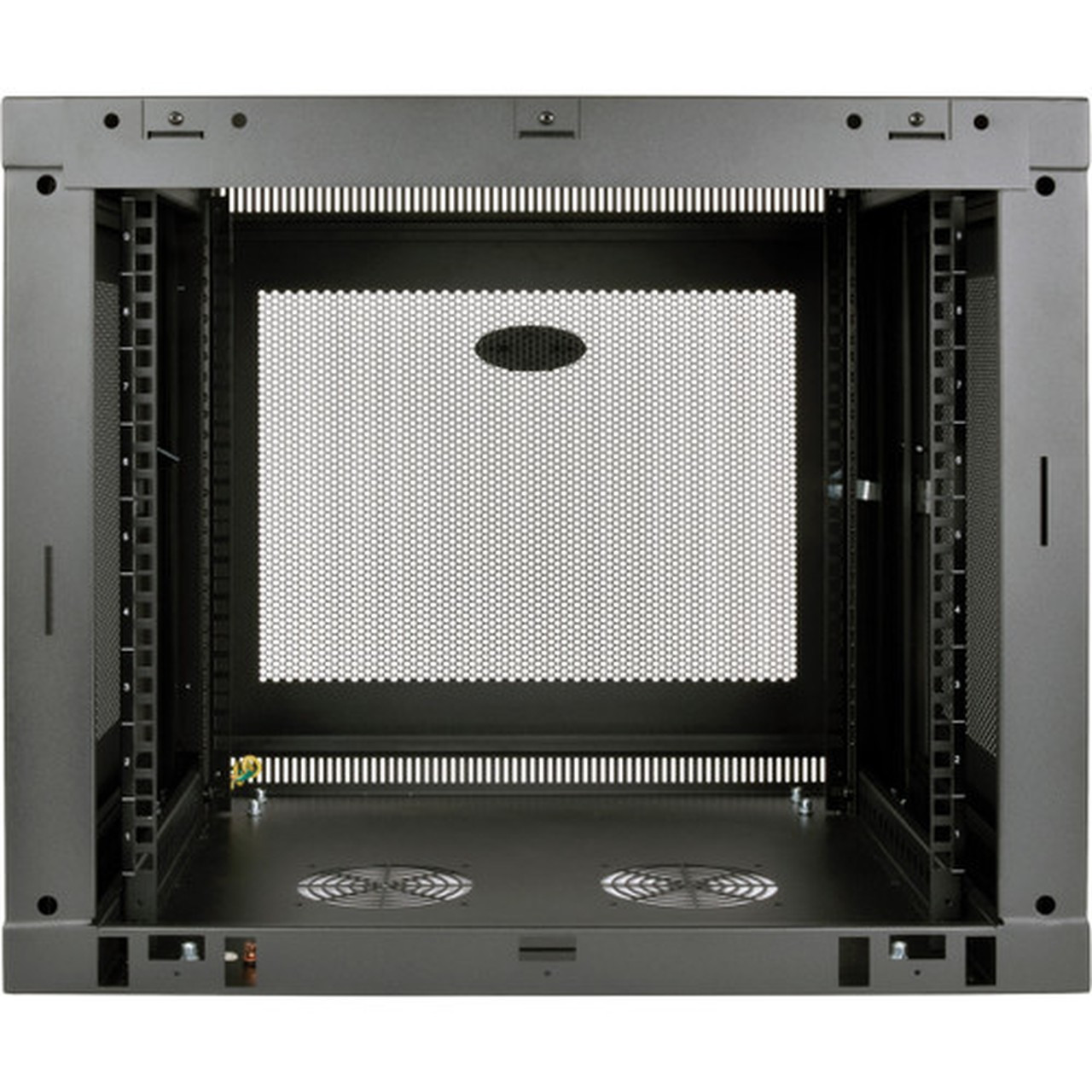

The SRW9UDP comes fully assembled and ready to mount to the wall, or use Tripp Lite's optional SRCASTER rolling caster kit to make it a mobile rack. Square and threaded mounting holes and numbered rack spaces make equipment installation easy. The vertical mounting rails adjust in 7/8-inch increments to accommodate equipment up to 20.5 inches deep, such as network switches and patch panels.
Product Type: Rack Cabinet
Technical InformationApplication/Usage:
Physical CharacteristicsForm Factor: Wall Mountable
Color: Black
Maximum Weight Capacity: 90.72 kg
Static/Stationary Weight Capacity: 90.72 kg
Height: 19.88" (504.95 mm)
Width: 23.63" (600.20 mm)
Depth: 21.70" (551.18 mm)
Rack Height: 9U
Rack Width: 19" (482.60 mm)
Rack Depth: 20.50" (520.70 mm)
Weight (Approximate): 23.50 kg
MiscellaneousPackage Contents:
- SmartRack 9U Low-Profile Switch-Depth-Plus Wall-Mount Rack Enclosure Cabinet
- 18 x M6 Screws
- 18 x M6 Cage Nuts
- 18 x M6 Cup Washers
- 18 x 18-24 Screws
- Removable Mounting Plate
- 3 x Mounting Plate Screws
- 2 x Keys
- Owner's Manual
Assembly Required: No
Environmentally Friendly: Yes
Environmental Certification: RoHS
WarrantyLimited Warranty: 5 Year
