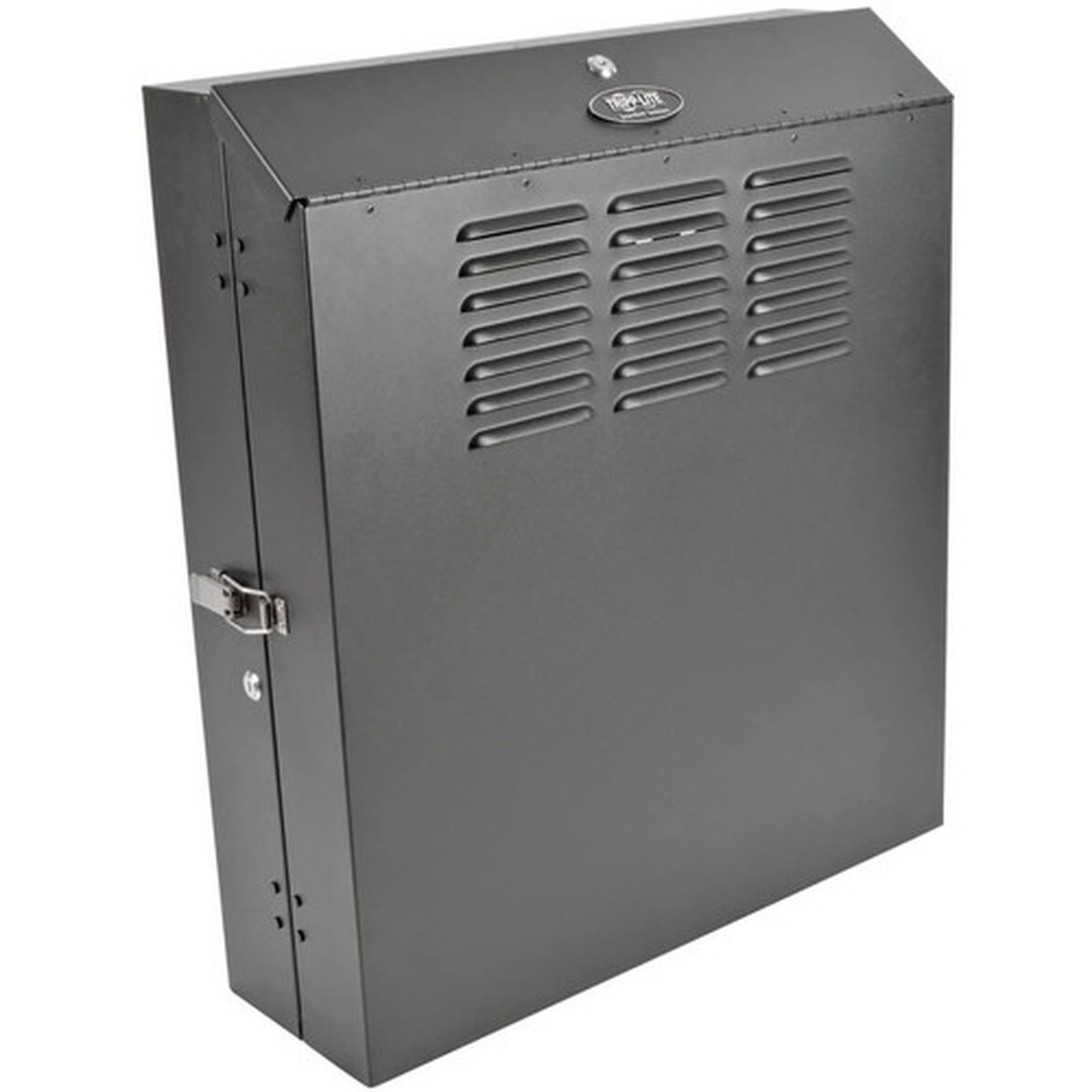

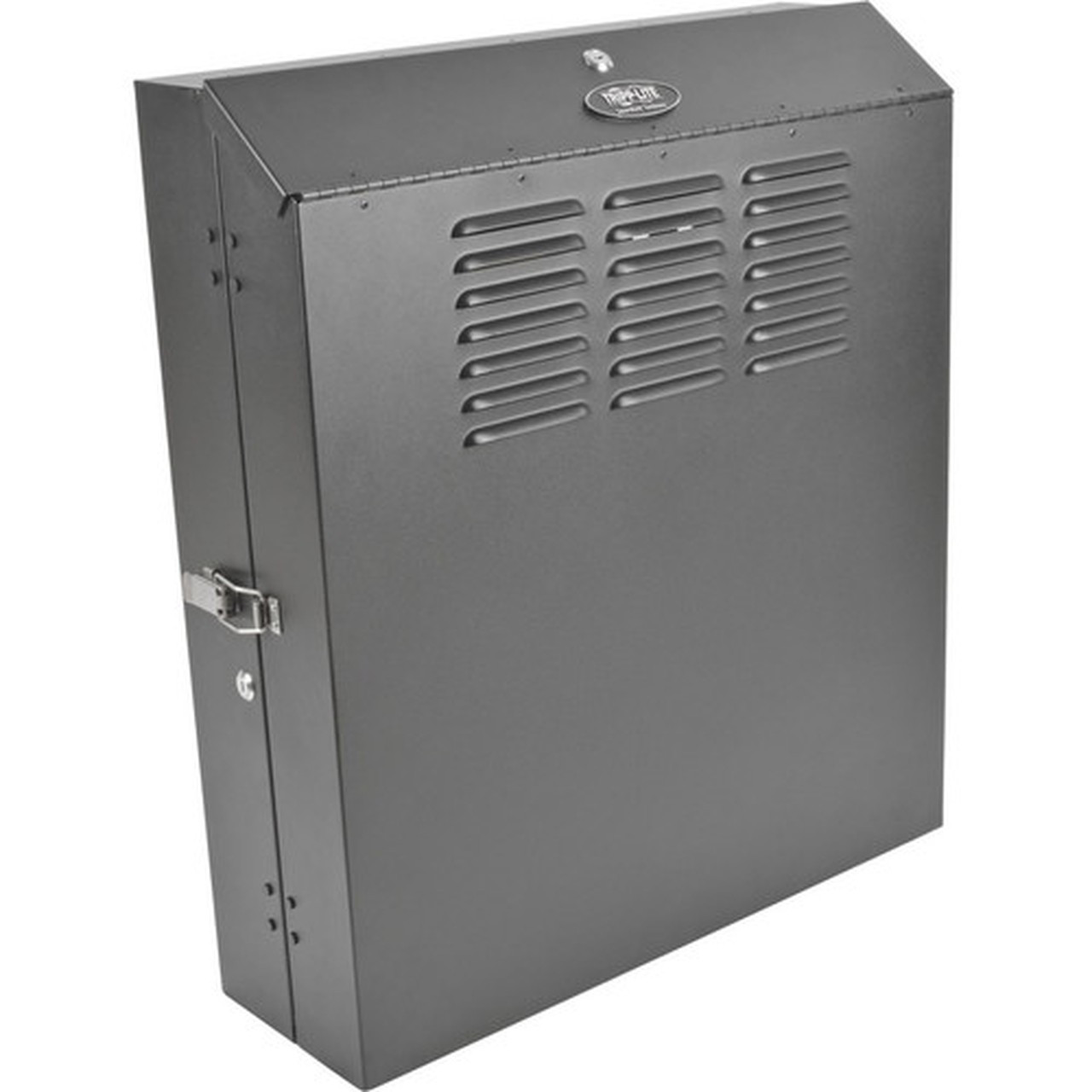

Tripp Lite SmartRack SRWF4U Rack Cabinet - For Patch Panel, LAN Switch - 4U Rack Height x 19" (482.60 mm) Rack Width x 20" (508 mm) - (SRWF4U)
- Maximum load capacity of 150 lb.
- Locking steel cabinet vented to keep equipment cool
- Secures 4U of 19 in. rack equipment up to 20 in. deep
- Includes additional 2U of space for patch panels
- Ships fully assembled for quick installation
- Marketing Information:
- Perfect for network wiring closets, retail locations, classrooms, back offices and other areas with limited floor space where you need equipment to be secure, organized and out of the way
- Houses EIA-standard 19 in. rack equipment in 4U of space
- Low-profile vertical-mount cabinet extends only 8 in. from the wall while housing equipment up to 20 in. deep, including network switches and patch panels

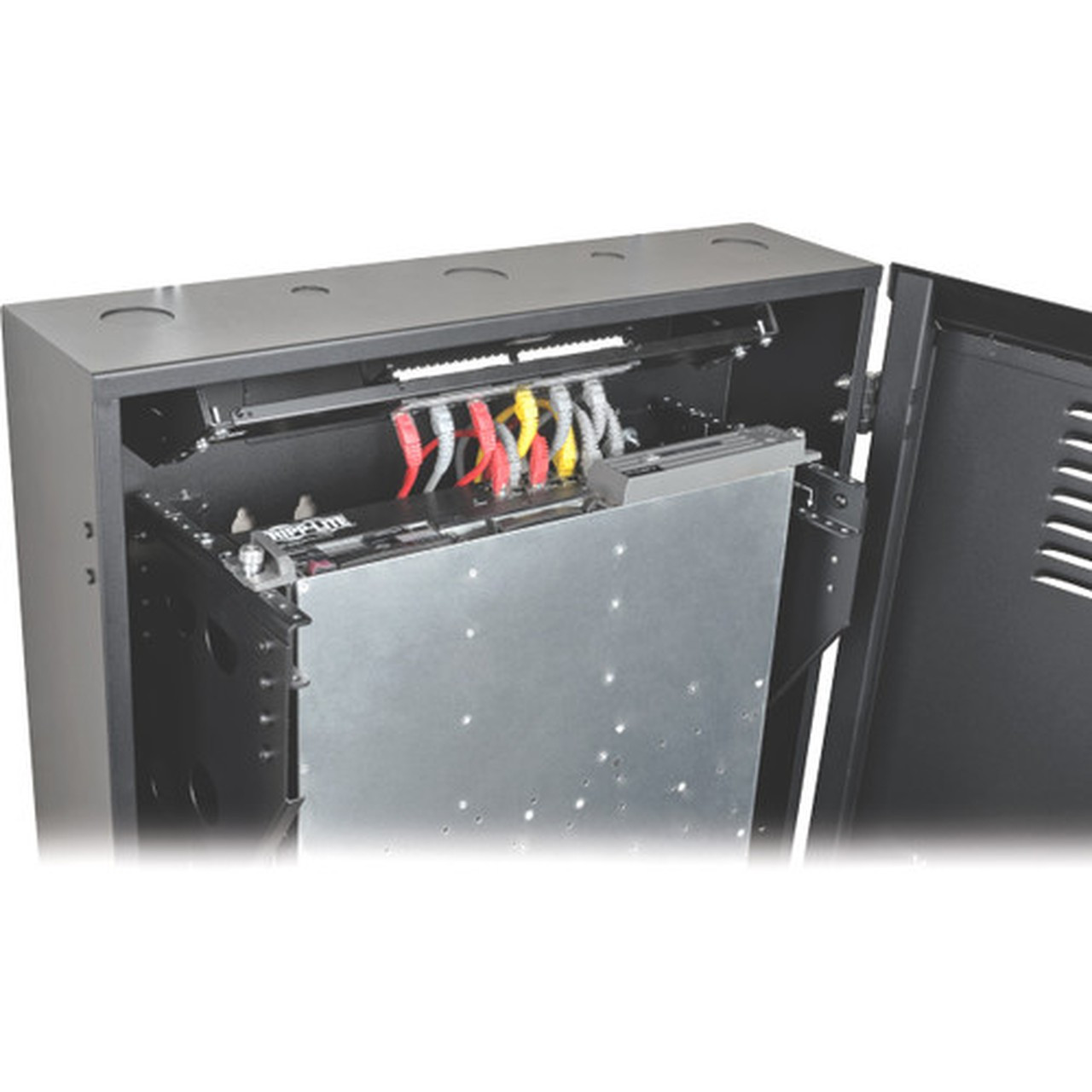

- Also includes a slide-out 2U mounting bracket at the top of the enclosure for patch panels up to 2.5 in. deep
- Maximum load capacity of 150 lb.
- Top panel and reversible front door lock securely to help prevent damage, tampering or theft
- Front door latch also accommodates a user-supplied padlock for added security

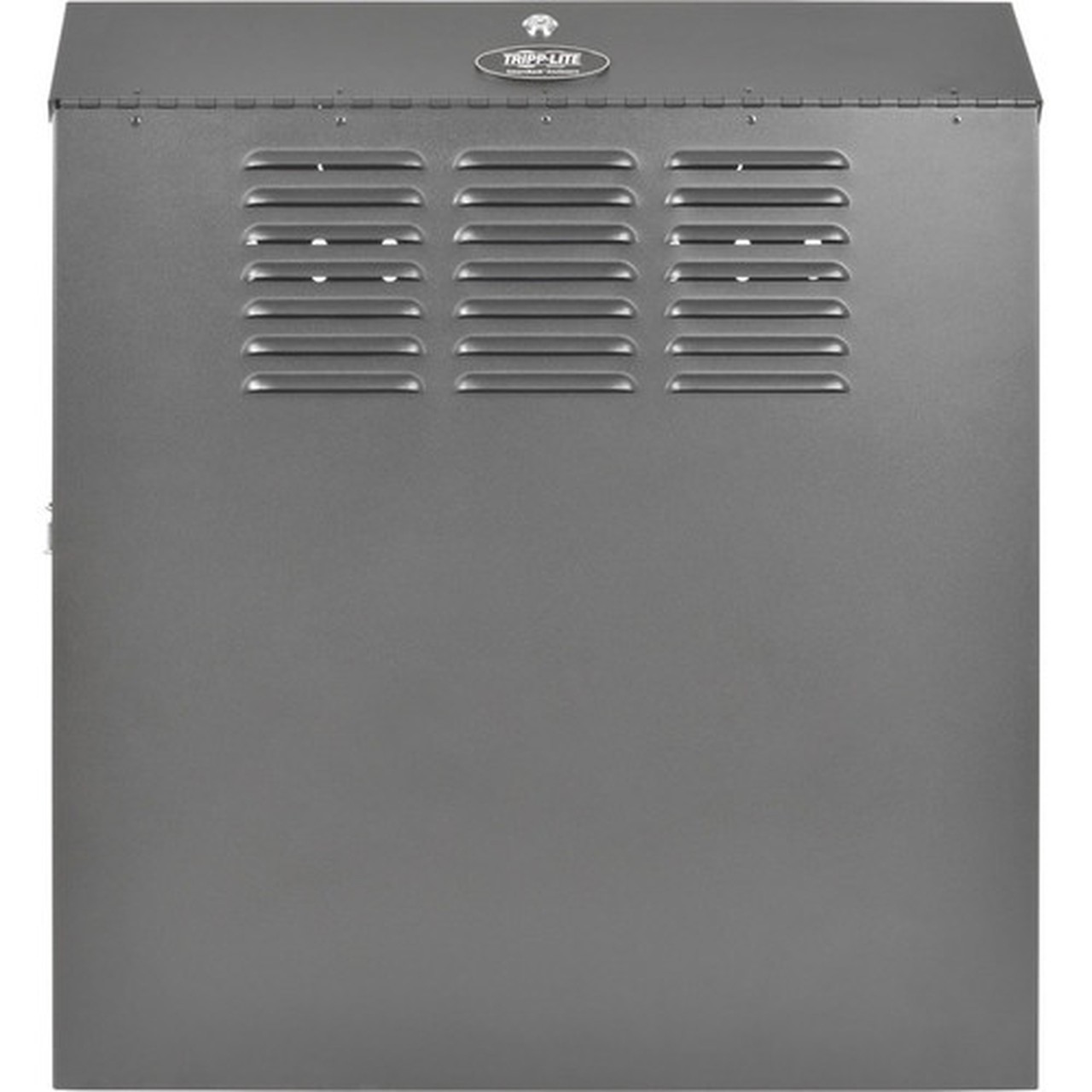

- Vented cabinet keeps equipment cool
- Convenient ports with removable covers allow cable routing through top and bottom
- Ships fully assembled for quick installation

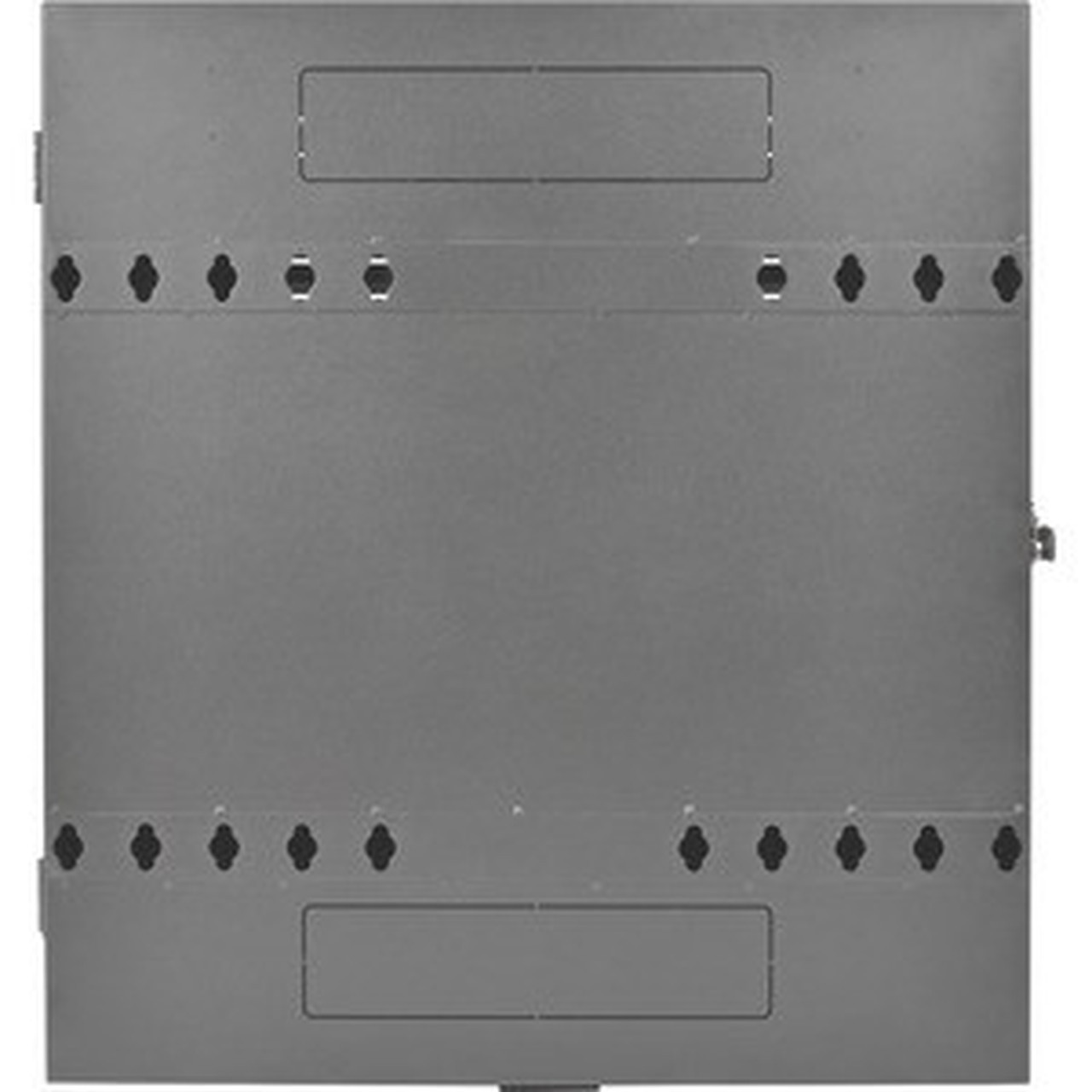

- Wall-mounting holes spaced 16 in. apart for standard wall stud placement
- Rails adjust easily-unscrew them, slide them to desired depth, and screw them back in
- Threaded mounting holes support M6 or 12-24 mounting
- Rack spaces marked for easy reference
- Provides physical equipment and media security required for PCI DSS (Payment Card Industry Data Security Standard) compliance
- Patch Panel
- LAN Switch
- SmartRack SRWF4U Rack Cabinet
- 12 x M6 Screws
- 12 x M6 Cup Washers
- 12 x 12-24 Screws
- 2 x Keys
- Owner's Manual
The SRWF4U SmartRack 4U Low-Profile Vertical-Mount Switch-Depth Wall-Mount Rack Enclosure Cabinet is designed to house EIA-standard 19-inch rack equipment in network wiring closets, retail locations, classrooms, back offices and other areas with limited floor space where you need equipment to be secure, organized and out of the way. Constructed from heavy-duty steel with a durable black powder-coated finish, the cabinet has a maximum load capacity of 150 pounds.
Because the low-profile cabinet mounts vertically, it extends only eight inches from the wall while housing equipment up to 20 inches deep, including network switches and patch panels. In addition to 4U of rack space in the primary mounting area, it also includes a slide-out 2U mounting bracket at the top of the enclosure for patch panels up to 2.5 inches deep.
The top panel and front door lock securely to help prevent damage, tampering or theft. The cabinet is vented, which allows air to flow freely and keep equipment cool. The reversible front door can open left or right. Convenient top and bottom ports allow easy cable routing.
The SRWF4U comes fully assembled and ready to mount to the wall. Equipment installation is easy with threaded mounting holes and hardware that support M6 or 12-24 mounting.
Saves Valuable Workspace
Keeps Important Equipment Secure
Easy Enclosure and Equipment Installation
Meets Payment Card Industry Standards
[custom-specifications]
Manufacturer: Tripp Lite by Eaton
Manufacturer Part Number: SRWF4U
Manufacturer Website Address: https://tripplite.eaton.com/
Brand Name: Tripp Lite
Product Line: SmartRack
Product Model: SRWF4U
Product Name: SmartRack SRWF4U Rack Cabinet
Product Type: Rack Cabinet
Technical Information
Application/Usage:
- Patch Panel
- LAN Switch
Physical Characteristics
Form Factor: Wall Mountable
Product Color: Black Powder Coat
Product Material: Steel
Maximum Weight Capacity: 68.04 kg
Static/Stationary Weight Capacity: 68.04 kg
Height: 28.80" (731.52 mm)
Width: 25.60" (650.24 mm)
Depth: 9.70" (246.38 mm)
Rack Height: 4U
Rack Width: 19" (482.60 mm)
Rack Depth: 20" (508 mm)
Weight (Approximate): 13.15 kg
Miscellaneous
Package Contents:
- SmartRack SRWF4U Rack Cabinet
- 12 x M6 Screws
- 12 x M6 Cup Washers
- 12 x 12-24 Screws
- 2 x Keys
- Owner's Manual
Assembly Required: No
Environmentally Friendly: Yes
Country of Origin: China
Warranty
Limited Warranty: 5 Year
[/custom-specifications]
