Tripp Lite SRW12US33G SmartRack 12U Server-Depth Wall-Mount Rack Enclosure Cabinet - For LAN Switch, Patch Panel, Server, PDU - 12U x (SRW12US33G)

(No reviews) Write a Review
$933.98
$1,465.37
$857.38
(You save $76.60 )
SKU: SRW12US33G
UPC: 037332187352
Weight: 109.00 LBS
Adding to cart… The item has been added
  • Maximum load capacity of 250 lb.
  • Swings away from wall bracket on a hinge for easy access
  • Locking steel cabinet vented at sides, top and bottom
  • Secures 12U of 19 in. rack equipment up to 32.5 in. deep
  • Mounts to wall or rolls on floor (with optional SRCASTER)
    Marketing Information: The SRW12US33G SmartRack 12U Server-Depth Wall-Mount Rack Enclosure Cabinet is ideal for storing 19-inch rack equipment up to 32.5 inches in depth in areas with limited floor space where you need equipment to be secure, organized and out of the way. Constructed from heavy-duty steel with a durable black powder-coated finish, the cabinet has a maximum load capacity of 250 pounds.

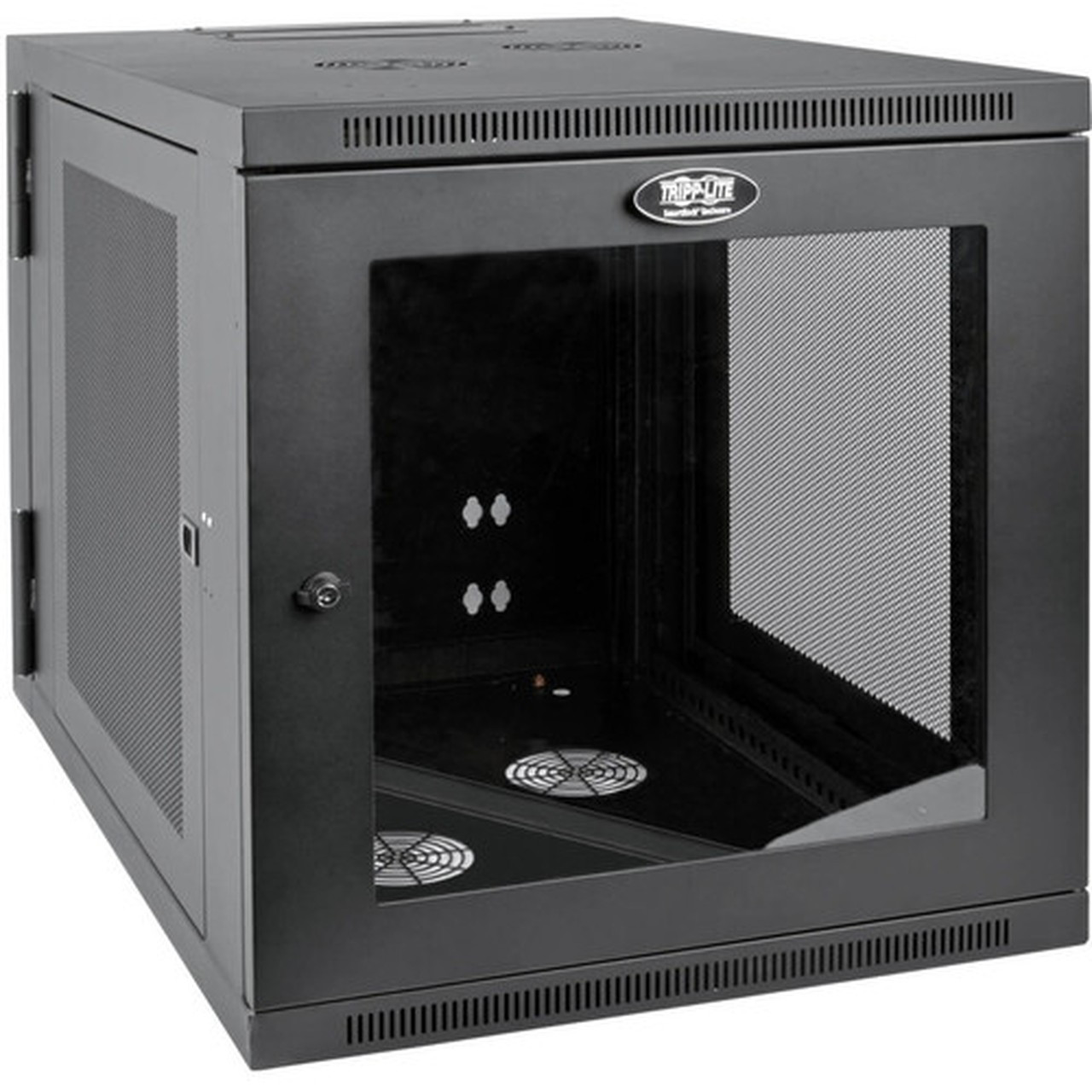

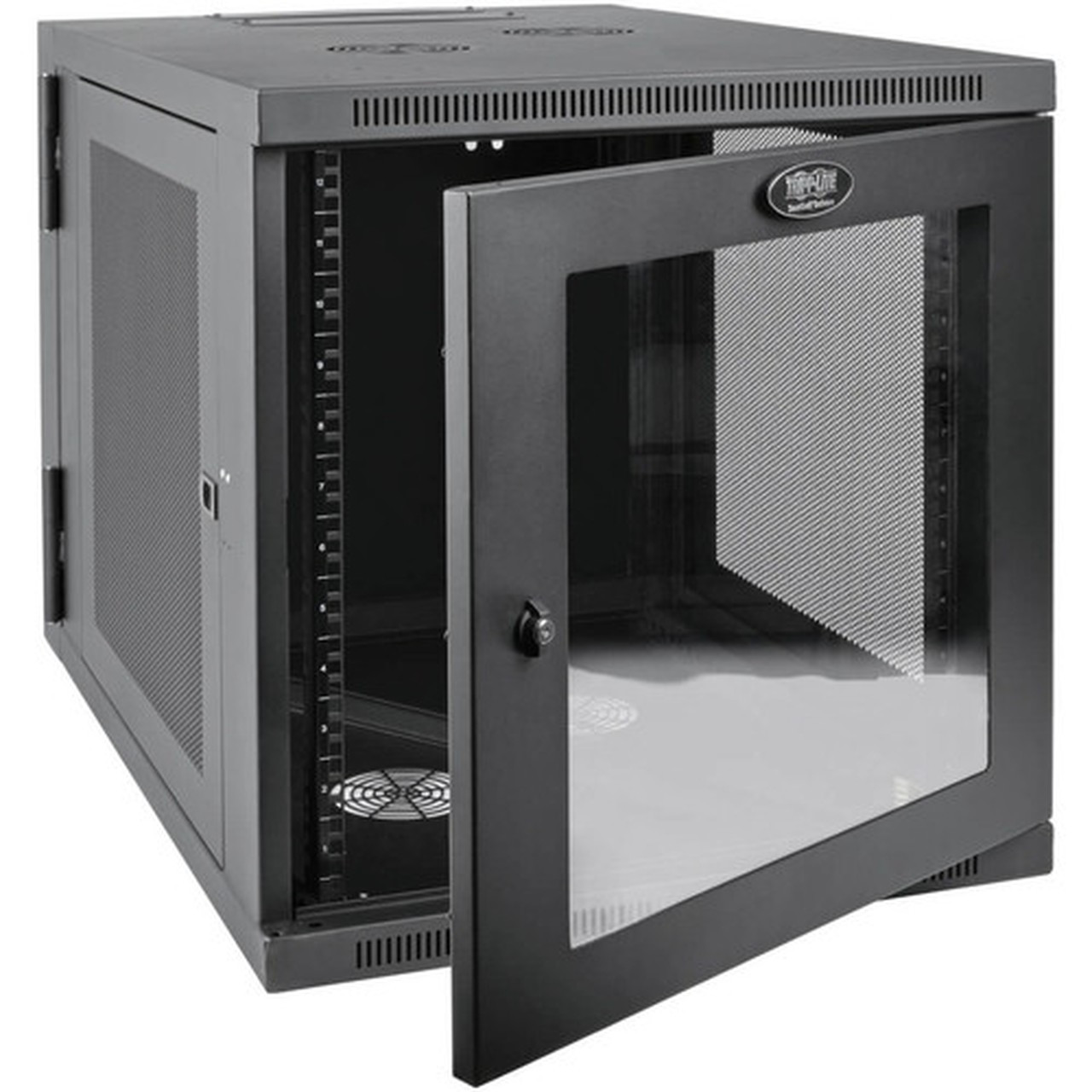

    The front door features a shatter-resistant clear acrylic window that lets you monitor equipment readouts without unlocking the enclosure. Not only does the window help prevent equipment tampering and reduce acoustic noise, but it also adds visual flair to your IT installation.

    The cabinet swings away from the wall on a sturdy hinge, allowing easy access to equipment and cabling during installation and maintenance. To ensure your valuable equipment stays secure, the doors and side panels lock. The top, bottom and removable side panels are vented, which allows air to flow freely through the rack to keep equipment cool. The reversible doors can open left or right by rotating the cabinet 180° before mounting. Convenient top and bottom ports allow easy cable routing through the cabinet.

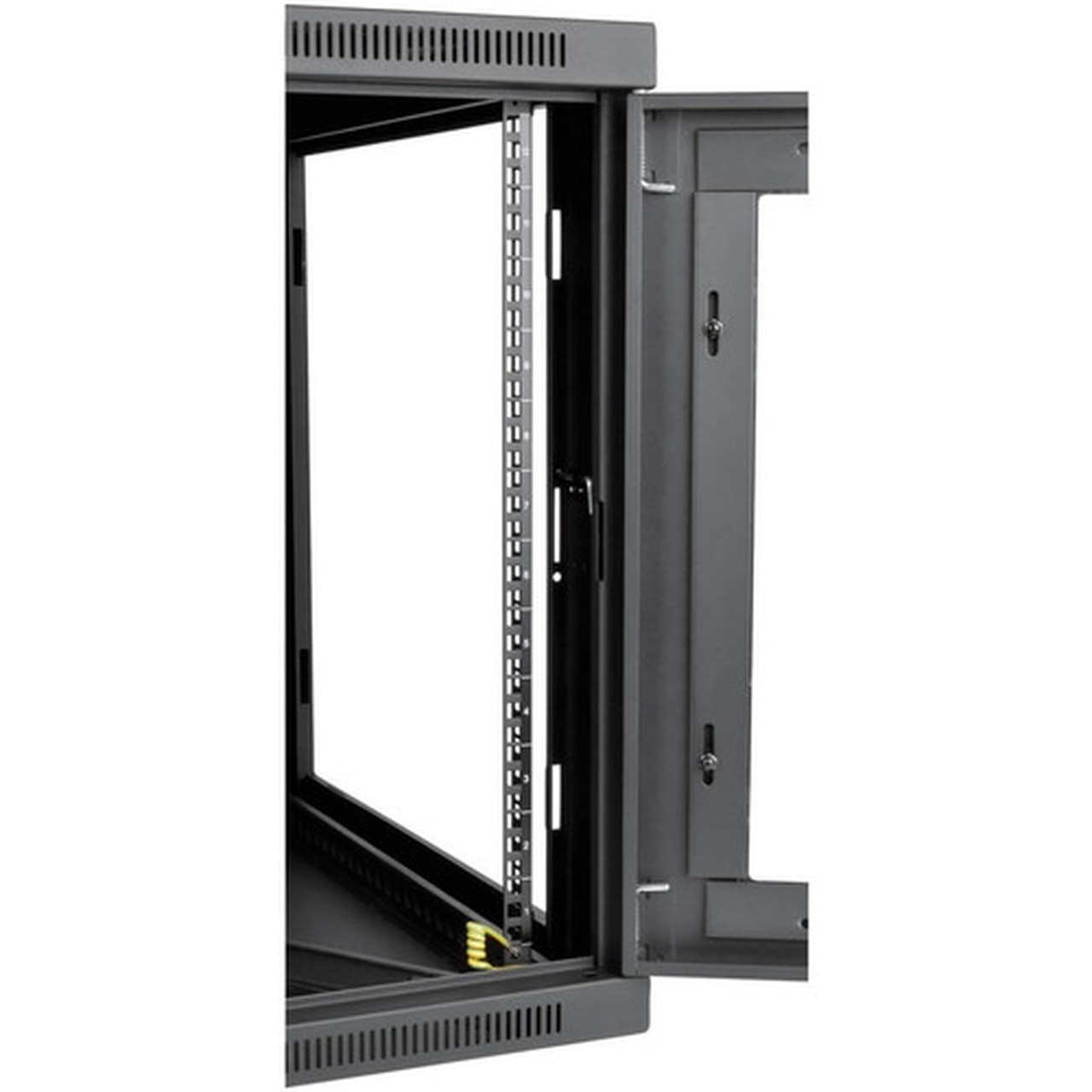

    The SRW12US33G comes fully assembled and ready to mount to the wall. Square and threaded mounting holes and numbered rack spaces make equipment installation easy. The vertical mounting rails adjust in 7/8-inch increments to accommodate equipment up to 32.5 inches, such as 1U servers, UPS systems, battery packs and switches.
    Application/Usage:
    • LAN Switch
    • Patch Panel
    • Server
    • PDU

    Form Factor: Wall Mountable
    Product Color: Black Powder Coat
    Product Material:
    • Steel
    • Acrylic

    Maximum Weight Capacity: 113.40 kg
    Static/Stationary Weight Capacity: 113.40 kg
    Height: 25" (635 mm)
    Width: 23.63" (600.20 mm)
    Depth: 33.50" (850.90 mm)
    Rack Height: 12U
    Rack Width: 19" (482.60 mm)
    Rack Depth: 25.99" (660.15 mm)
    Weight (Approximate): 42.86 kg
    Package Contents:
    • SRW12US33G SmartRack 12U Server-Depth Wall-Mount Rack Enclosure Cabinet
    • 36 x M6 Screws
    • 36 x M6 Cage Nuts
    • 36 x M6 Washers
    • 36 x 12-24 Screws
    • 2 x Keys
    • Owner's Manual

    Assembly Required: No
    Environmentally Friendly: Yes
    Country of Origin: China
    Limited Warranty: 5 Year

[custom-specifications]

Specifications
Manufacturer: Tripp Lite by Eaton
Manufacturer Part Number: SRW12US33G
Manufacturer Website Address: https://tripplite.eaton.com/
Brand Name: Tripp Lite
Product Line: SmartRack
Product Model: SRW12US33G
Product Name: SRW12US33G SmartRack 12U Server-Depth Wall-Mount Rack Enclosure Cabinet
Product Type: Rack Cabinet
Technical Information
Application/Usage:
  • LAN Switch
  • Patch Panel
  • Server
  • PDU

Physical Characteristics
Form Factor: Wall Mountable
Product Color: Black Powder Coat
Product Material:
  • Steel
  • Acrylic

Maximum Weight Capacity: 113.40 kg
Static/Stationary Weight Capacity: 113.40 kg
Height: 25" (635 mm)
Width: 23.63" (600.20 mm)
Depth: 33.50" (850.90 mm)
Rack Height: 12U
Rack Width: 19" (482.60 mm)
Rack Depth: 25.99" (660.15 mm)
Weight (Approximate): 42.86 kg
Miscellaneous
Package Contents:
  • SRW12US33G SmartRack 12U Server-Depth Wall-Mount Rack Enclosure Cabinet
  • 36 x M6 Screws
  • 36 x M6 Cage Nuts
  • 36 x M6 Washers
  • 36 x 12-24 Screws
  • 2 x Keys
  • Owner's Manual

Assembly Required: No
Environmentally Friendly: Yes
Country of Origin: China
Warranty
Limited Warranty: 5 Year

[/custom-specifications]

[custom-options]











[/custom-options]

[custom-user-manual]

User Manual

[/custom-user-manual]
5 Year
