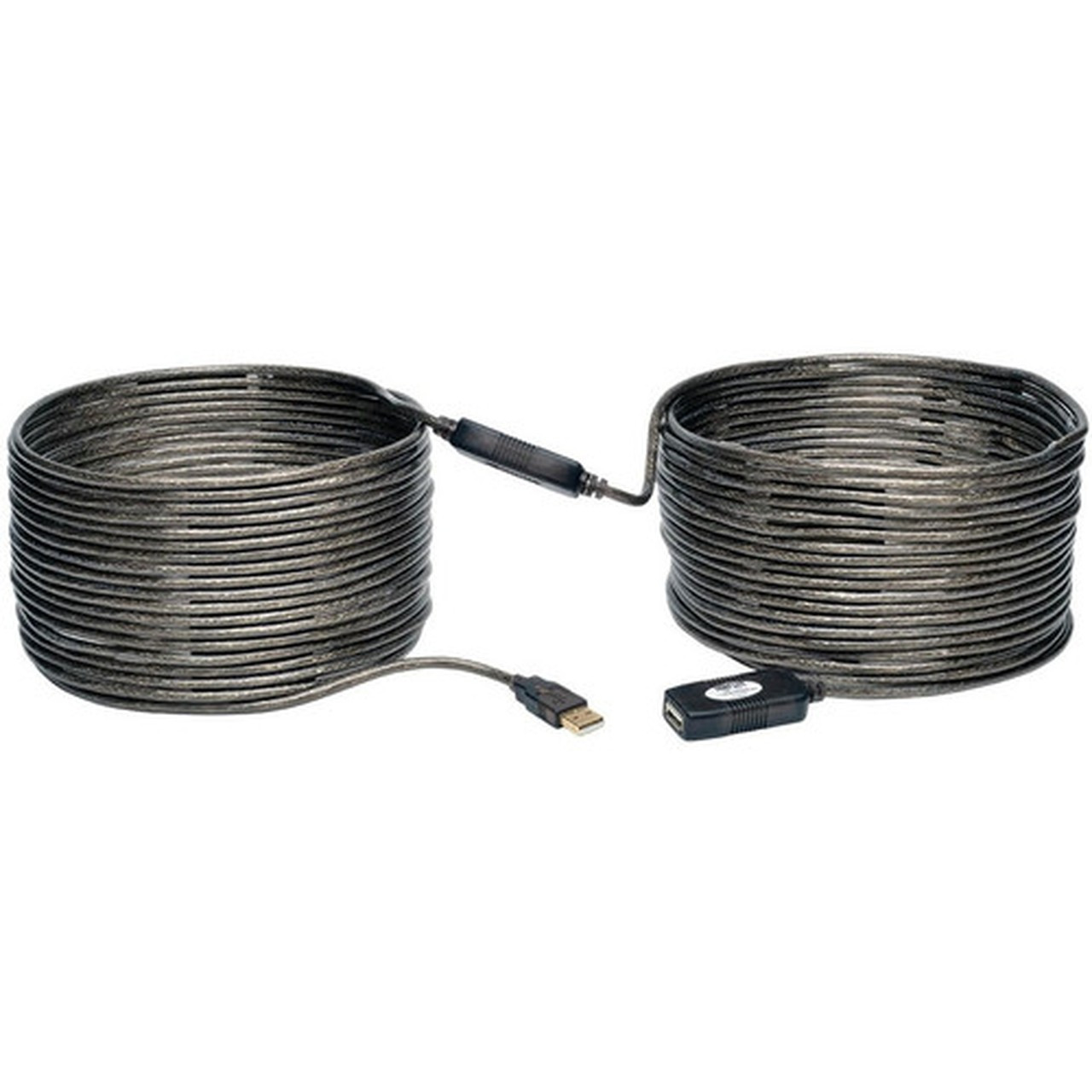

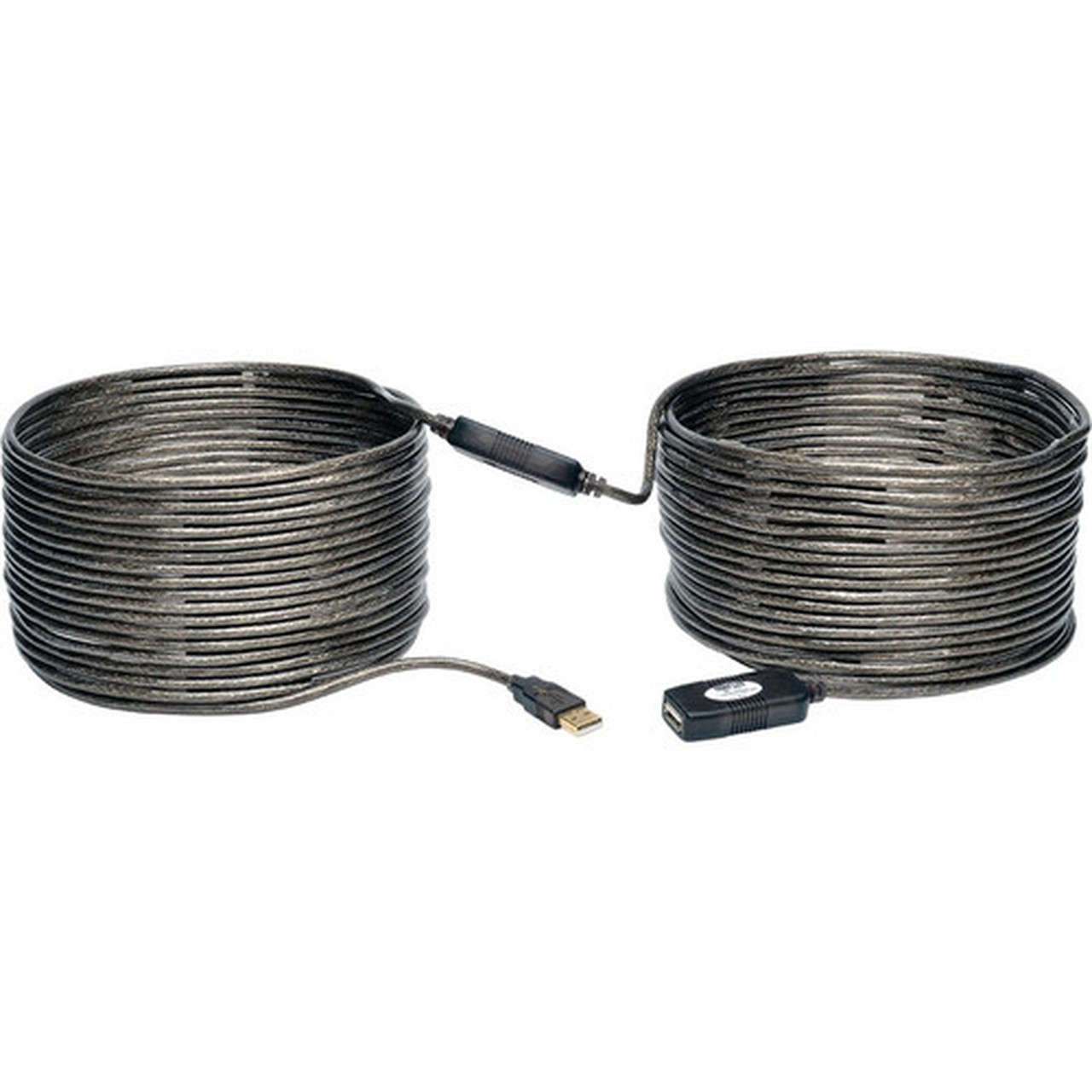

Tripp Lite USB 2.0 Active Extension Repeater Cable (A-A M/F), 20M (65-ft.) - 65.6 ft USB Data Transfer Cable for USB Hub - First End: (U026-20M)

(No reviews) Write a Review
$156.24
$151.55
$56.05
(You save $100.19 )
SKU: U026-20M
UPC: 037332167668
Availability: Toronto
Weight: 1.40 LBS
Adding to cart… The item has been added
  • Extends and boosts the signal to any USB device cable without signal loss
  • Built-in repeater maintains USB signal quality
  • Ideal for connecting USB devices beyond the 16-ft. USB specification
  • Full 480Mbps Transfer rate and backward compatible to USB 1.1
  • Plug and Play. Compatible with all major operating systems
    Marketing Information: Tripp Lite's U026-20M is a 20-meter (65 ft.) USB 2.0 active extension cable used to increase the length of a USB device cable beyond the 16.ft cable limitation without signal loss and potential performance problems. The U026-20M is a bus-powered extension cable with a built-in signal booster for regenerating the signal to achieve superior signal quality and data transmission. The overall cable length can be extended up to 131ft by daisy chaining up to 2 of active cables. Standard 6' 10' or 15' USB A-B cable to reach the desired distance. Meets or exceeds all USB 2.0 specifications and also supports faster data transfer for legacy USB 1.1 devices. Power capacity is up to 90mA of power to the connected device. (If more than 90mA is required, it will either (i) need to have its own power supply, or (ii) be plugged into a powered USB 2.0 hub (Tripp Lite U222-004-R).

    Features

    • Maximum Extension Distance: Daisy-chain up to two 20m cables for a complete distance extension of up to 40m (131 ft.)
    • Error-Free Signal Transfer: Supports error-free data transmission at the high speeds of all your USB 2.0 devices. Legacy USB 1.1 devices also get a speed boost with transfer speeds from 1.5 to 480 Mbps
    • Universal Compatibility: The cable is compatible with all computers, devices and cables with USB A connectors. Backward compatible to USB 1.1 (12Mbps )
    • Power Capacity: The U026-20M provides up to 90mA of power to the connected device. If your device requires more than 90mA, it will either (i) need its own power supply, or (ii) be plugged into a powered USB 2.0 hub (such as Tripp Lite U222-004-R)
    • Premium Cabling: Premium double-shielded foil-and-braid cable provides maximum EMI/RFI protection and superior signal quality

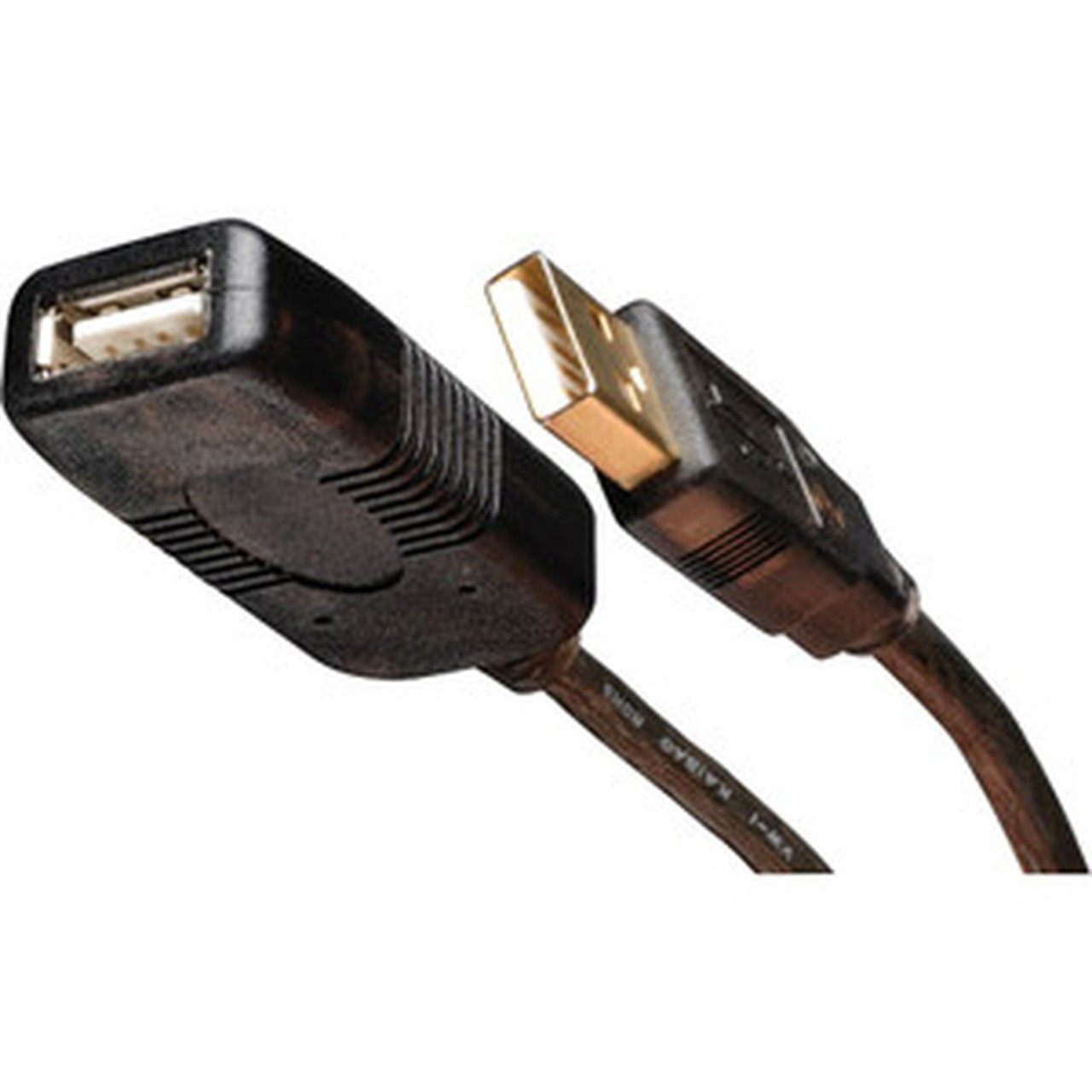

    • Gold-Plated Connectors: The U026-20M features gold-plated USB A connectors with gold-plated copper contacts to ensure excellent conductivity The connectors feature integral strain relief for durability and long life
    • Signal Booster: The built-in signal booster regenerates a USB signal for high quality and long extension distances
    • RoHS Compliance: The U026-20M is compliant with RoHS standards, reflecting Tripp Lite's commitment to environmental responsibility
    • Plug and Play Convenience: no software to load

    Cable Type: USB
    Cable Characteristic: Extension Cable
    Cable Length: 65.6 ft
    Connector Type on First End: USB 2.0 Type A - Male
    Connector on First End Details: 1 x USB 2.0 Type A - Male
    Connector Type on Second End: USB 2.0 Type A - Female
    Connector on Second End Details: 1 x USB 2.0 Type A - Female
    Connector Plating: Gold
    Device Supported: USB Hub
    Data Transfer Rate: 480 Mbit/s
    Features:
    • Active
    • Strain Relief

    Product Color: Black
    Environmentally Friendly: Yes
    Country of Origin: China
    Limited Warranty: 3 Year

[custom-specifications]

Specifications
Manufacturer: Tripp Lite by Eaton
Manufacturer Part Number: U026-20M
Manufacturer Website Address: https://tripplite.eaton.com/
Brand Name: Tripp Lite
Product Model: U026-20M
Product Name: USB 2.0 Active Extension Repeater Cable (A-A M/F), 20M (65-ft.)
Product Type: Data Transfer Cable
Technical Information
Cable Type: USB
Cable Characteristic: Extension Cable
Cable Length: 65.6 ft
Connector Type on First End: USB 2.0 Type A - Male
Connector on First End Details: 1 x USB 2.0 Type A - Male
Connector Type on Second End: USB 2.0 Type A - Female
Connector on Second End Details: 1 x USB 2.0 Type A - Female
Connector Plating: Gold
Device Supported: USB Hub
Data Transfer Rate: 480 Mbit/s
Features:
  • Active
  • Strain Relief

Physical Characteristics
Product Color: Black
Miscellaneous
Environmentally Friendly: Yes
Country of Origin: China
Warranty
Limited Warranty: 3 Year
