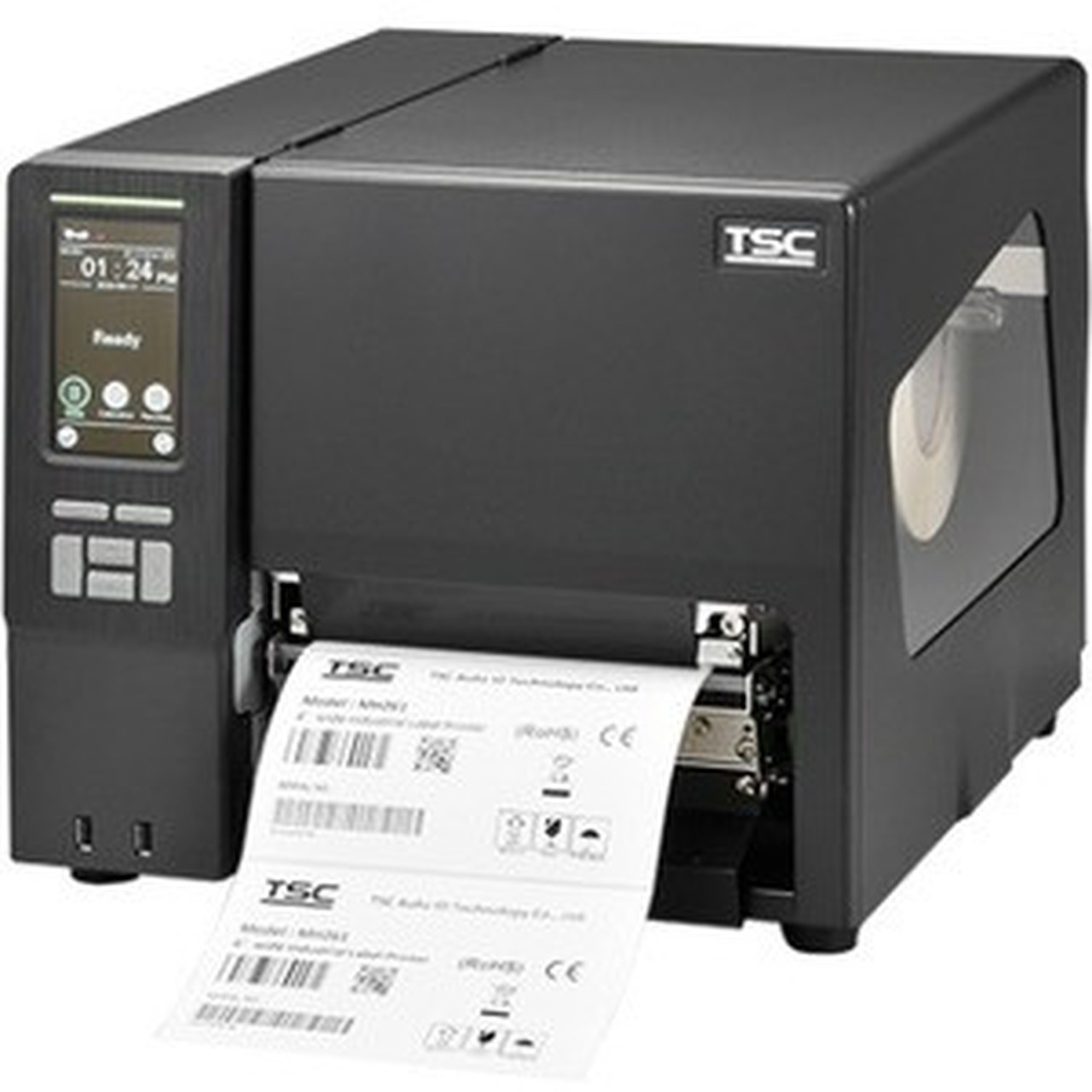

TSC Auto ID MH261T Direct Thermal/Thermal Transfer Printer - Monochrome - Tabletop - Label Print - Ethernet - USB - USB Host - Serial (MH261T-A001-0301)

Marketing Information:

The MH241 Series is TSC's mainstream industrial barcode label printer built upon the legacy of the MH240 Series. It brings new features to those looking for solutions to address evolving business challenges from growing production line demands to increasing operational complexities.

The MH240 Series features premium printhead technology, fast processor, and all the memory customers will need to print high-quality labels delivered at the fastest speeds.

Sophisticated TSC Sense Care
The TSC TPH Care Mechanism offers an advanced level of auto-detection ensuring real-time printhead health status, to monitor and prevent down. In addition, the MH241 series supports various media with a pre-printed black mark on top or bottom sides by user's selection in the panel menu.

Dynamic Remote Printer Management
SOTI Connect and TSC Console provide enterprise remote printer management on multiple tasks to reduce maintenance costs and avoid downtime of business-critical devices.

Multi-Connectivity
The MH241 series offers GPIO to support common applicators and emulations along with an optional 802.11 a/b/g/n/ac Wi-Fi with Bluetooth 4.2 combo module.

Highly Adaptable to Various Media
MH241 printers can adapt to various media lengths and widths. With accurate printing positioning, the MH241 and MH241T are capable of peeling off minimum of 0.5-inch labels in length. Additionally, the mechanism for fine adjustment to avoid ribbon wrinkles and ensures label print quality.

Brilliant User Experience

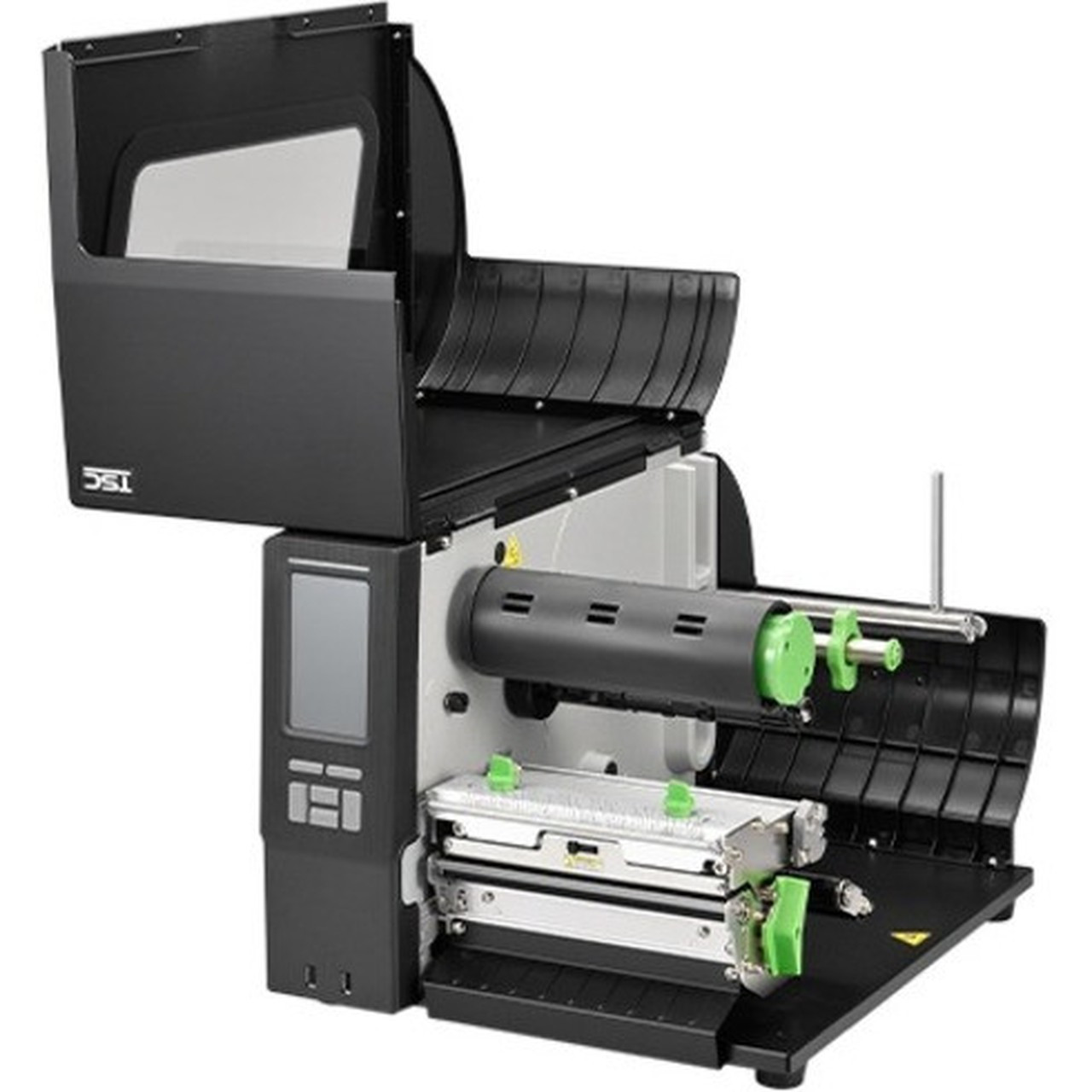

The MH241T and MH241P can easily adjust the media near-end sensor to detect the media and remind users to change the media roll on color GUI display (Media near the end). The MH241 series allows users to easily replace printhead and platen roller without the need for specific tools.

Recommended Use: Label Print

Print Color Capability: Monochrome

Maximum Mono Print Speed: 305 mm/s

Maximum Print Resolution (dpi): 203

Maximum Print Length: 48.33 ft (14732 mm)

Maximum Print Width: 6.61"

Barcode Symbology Supported: Code 39,Code 93,Code 128 UCC,Code 128,Codabar,Interleaved 2 of 5,EAN-8,EAN-13,EAN-128,UPC-A/E,EAN and UPC 2(5) Digits Add-On,MSI,Plessey,POSTNET,RSS Stacked,GS1 DataBar,Code 11,China Post,PDF417,Maxi Code,Data Matrix,QR Code,AZTEC

Standard Memory: 512 MB

Parallel Port: Yes

USB Host: Yes

Serial Port: Yes

USB: Yes

Network Ready: Yes

Ethernet: Yes

Bluetooth: Yes

Wireless LAN: Yes

Wireless LAN Standard: IEEE 802.11a/ac/b/g/n

Display Screen: Yes

Screen Size: 4.3"

Display Screen Type: LCD

Touchscreen: Yes

Cutter: Yes

Media Type: Continuous Label,Die-cut Label,Black Mark,Fanfold,Notch,Perforated Label,Tag

Media Sensor: Gap Sensor,Black Mark Sensor,Head Open Sensor,Ribbon Encode Sensor,Paper Near End Sensor

Media Thickness: 11 mil

Maximum Label Width: 6.80" (172.72 mm)

Maximum Label Length: 48.33 ft (14732 mm)

Language Emulation: TSPL-EZD

Power Source: AC,DC

Operating Temperature: 32°F (0°C) - 104°F (40°C)

Operating Relative Humidity: 25% - 85%

Storage Temperature: -40°F (-40°C) - 140°F (60°C)

Storage Relative Humidity: 10% - 90%

Form Factor: Tabletop

Height: 12.32" (313 mm)

Width: 14.06" (357 mm)

Depth: 20.24" (514 mm)

Weight (Approximate): 17.80 kg

Platform Supported: PC

Energy Star: Yes

Environmentally Friendly: Yes

Environmental Compliance: Restriction of Hazardous Substances (RoHS),Waste Electrical and Electronic Equipment Directive (WEEE)

Limited Warranty: 2 Year
