- A smart and inexpensive solution to print temporary documents
- Produce high-quality documents with this monochrome printer to increase your productivity
- Delivers high-speed, hassle-free labeling solution for your business needs

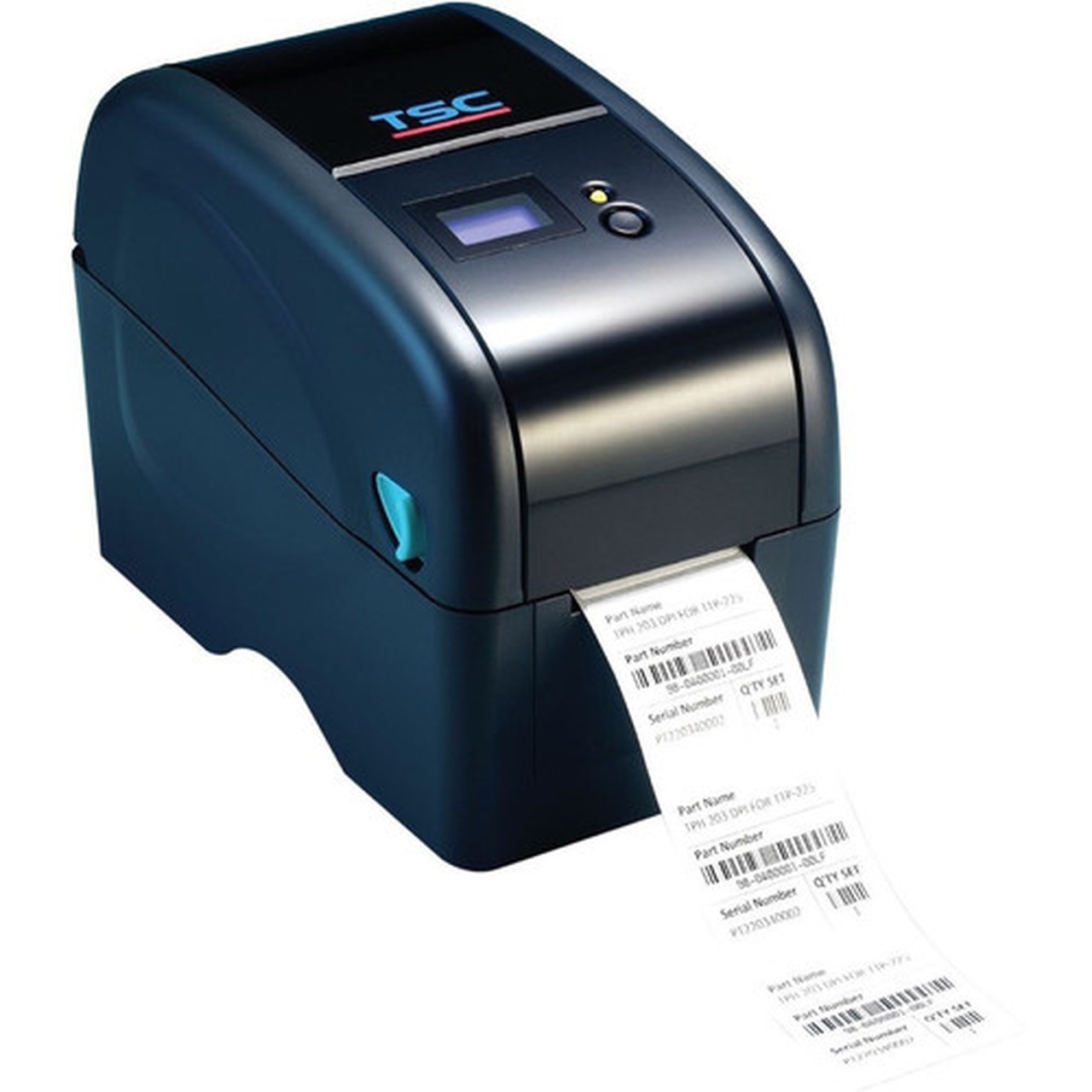

Marketing Information: TSC is excited to introduce its first series of 2" wide thermal transfer desktop printers. The TTP-225 Series of desktop thermal transfer printers brings TSC quality, innovation, performance, reliability and value to the small footprint 2" wide printer market.

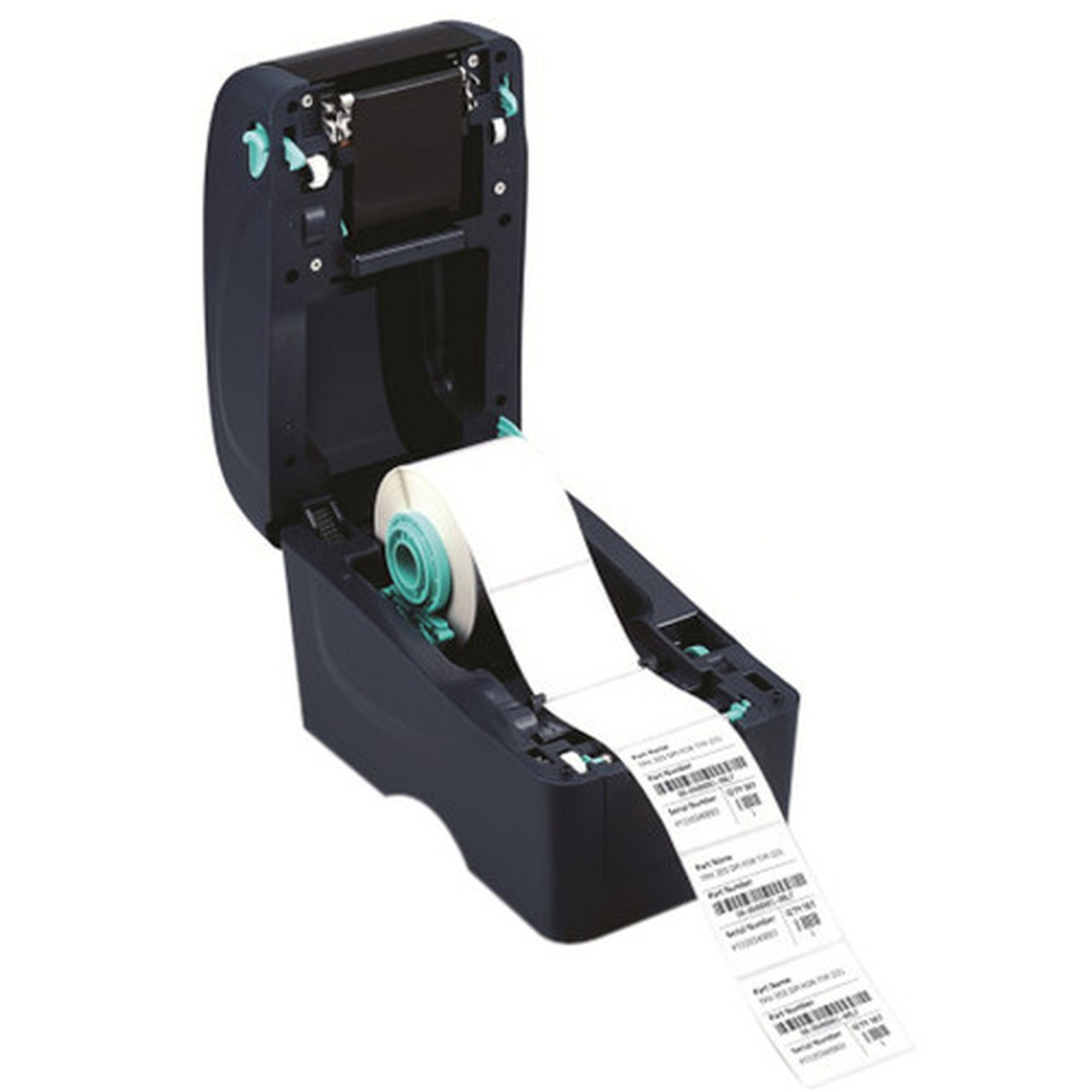

The TTP-225 Series delivers premium performance for most retail, medical and office applications at an affordable price. The TTP-225 features a user friendly clamshell design with a large 5" OD center biased media capacity. Designed with no losable parts, it is the perfect size when you need a space-saving printer for 2" wide labels or tags. Simply open the cover and drop your labels into the printers spring loaded media guide. Top of form sensing by gap, black mark, or notch is standard and completely adjustable from side to side.
Choose either standard 203 dpi or higher resolution 300 dpi solutions. The TTP-225 features 203 dpi resolution and print speeds up to 5 inches per second. The 300 dpi TTP-323 is ideal for 2-D barcodes, fine text and small graphics labeling.
The TTP-225 is the first low cost thermal transfer compact 2" desktop printer to offer an optional LCD display to its customers. The LCD is used to present important information about print job status and setup which brings a new level of ease of use to its customers. Other outstanding features include an inexpensive internal Ethernet adapter for easy integration into network systems, cutters, label present sensor, and an optional keyboard for printing labels in stand-alone or down-time situations.
- Retail Point-of-Sale
- Oil Change & Auto Service Labeling
- Pharmacy Prescription Labeling
- Healthcare Specimen Labeling
- Healthcare Patient Tracking
- Shelf Labeling
- Product Marking
- Inventory & Asset Management
- Small Office/Home Office Mailing
- File-Folder Labeling
- Wristbands
Recommended Use: Label PrintPrint Color Capability: MonochromeMaximum Mono Print Speed: 127 mm/sMaximum Print Resolution (dpi): 203Maximum Print Length: 90" (2286 mm)Maximum Print Width: 2.13"Application/Usage: DesktopStandard Memory: 8 MBSerial Port: YesUSB: YesMedia Type: - Label
- Continuous Roll
- Die-cut Label
- Black Mark
- Fanfold
- Notch
- Wristband
Maximum Roll Diameter: 5"Maximum Label Width: 2.36" (60 mm)Maximum Label Length: 90" (2286 mm)Power Source: AC SupplyHeight: 6.97" (177 mm)Width: 5.51" (140 mm)Depth: 9.49" (241 mm)Weight (Approximate): 2.45 kgPlatform Supported: Energy Star: YesEnvironmentally Friendly: Yes
[custom-specifications]
SpecificationsManufacturer: TSC Auto ID Technology Co., Ltd
Manufacturer Part Number: 99-040A010-0001
Manufacturer Website Address: http://www.tscprinters.com
Brand Name: TSC Auto ID
Product Series: TTP-225
Product Model: TTP-225
Product Name: TTP-225 Desktop Thermal Transfer Bar Code Printer
Product Type: Direct Thermal Printer
Technical InformationRecommended Use: Label Print
Print Color Capability: Monochrome
Maximum Mono Print Speed: 127 mm/s
Maximum Print Resolution (dpi): 203
Maximum Print Length: 90" (2286 mm)
Maximum Print Width: 2.13"
Application/Usage: Desktop
MemoryStandard Memory: 8 MB
Interfaces/PortsSerial Port: Yes
USB: Yes
Media Types & HandlingMedia Type:
- Label
- Continuous Roll
- Die-cut Label
- Black Mark
- Fanfold
- Notch
- Wristband
Maximum Roll Diameter: 5"
Maximum Label Width: 2.36" (60 mm)
Maximum Label Length: 90" (2286 mm)
Power DescriptionPower Source: AC Supply
Physical CharacteristicsHeight: 6.97" (177 mm)
Width: 5.51" (140 mm)
Depth: 9.49" (241 mm)
Weight (Approximate): 2.45 kg
MiscellaneousPlatform Supported:
Energy Star: Yes
Environmentally Friendly: Yes
