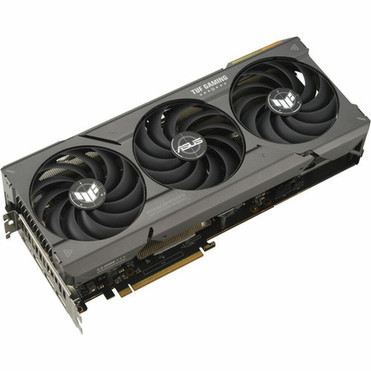

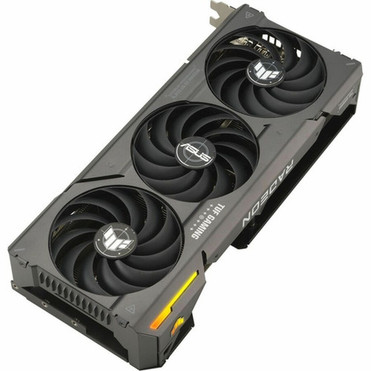

TUF AMD Radeon RX 7800 XT Graphic Card - 16 GB GDDR6 - 7680 x 4320 - 2.25 GHz Game Clock - 2.57 GHz Boost Clock - 256 bit Bus Width - (TUF-RX7800XT-O16G-GAMING)

Marketing Information:

ASUS TUF Gaming Radeon™ RX 7800 XT OC Edition 16GB GDDR6 optimized inside and out for lower temps and durability.

• Axial-tech fans scaled up to deliver 24% more airflow
• Dual ball fan bearings last up to twice as long as conventional designs
• Military-grade capacitors rated for 20K hours at 105C make the GPU power rail more durable
• Metal Exoskeleton adds structural rigidity and vents to increase heat dissipation
• Auto-Extreme precision automated manufacturing for higher reliability
• GPU Tweak III software provides intuitive performance tweaking, thermal controls, and system monitoring

FLYIN' TUF

The AMD RDNA™ 3 Architecture elevated by buffed cooling and power delivery to effortlessly churn out frames at 4K resolution and beyond, and backed with an arsenal of rugged reinforcements to cover your six.

Lock, load, and dominate with the TUF Gaming Radeon™ RX 7800 XT.

AXIAL-TECH UPGRADES

Air Superiority

Bigger and better. Axial-tech fans spin on dual-ball bearings and have been scaled up to propel 24% more air through the card, setting the stage for lower temperatures, less noise, and higher performance.

NEW DIRECTION

Well-maintained Formation

The two side fans spin counterclockwise to minimize turbulence and maximize air dispersion through the heatsink. All three fans come to a standstill when GPU temps are below 55 Celsius, letting you play less-demanding games or perform light tasks in relative silence. Fans start up again when temps are over 60 Celsius, referencing a speed curve that balances performance and acoustics for work or play.

2.96-SLOT DESIGN

Phase That Blaze

A generously sized heatsink efficiently soaks up heat from the AMD Radeon™ RX 7800 XT GPU, allowing it to be whisked away by the three Axial-tech fans.

MILITARY-GRADE 20K CAPACITORS

Resilient Squadron

A lineup of capacitors rated to last 20,000 hours at 105 Celsius brings higher temperature and ripple tolerance to the GPU power rail, arming the card for long-term deployment in challenging conditions.

An aluminum shroud and backplate prevent PCB flex and feature large vents to further increase heat dissipation.

Auto-Extreme Technology is an automated manufacturing process that sets new standards in the industry by allowing all soldering to be completed in a single pass. This reduces thermal strain on components and avoids the use of harsh cleaning chemicals, resulting in less environmental impact, lower manufacturing power consumption, and a more reliable product overall.

Aura-compatible ARGB lighting on the shroud adds a dash of customizable color or functional effects to your build. Pair up with a vast range of compatible system components and coordinate the glow to create a theme that's uniquely you.

The bundled graphics card holder banishes sag and also contains a screwdriver to help you build.

API Supported: OpenGL 4.6

Number of Monitors Supported: 4

Maximum Digital Display Resolution: 7680 x 4320

Chipset Manufacturer: AMD

Chipset Line: Radeon

Chipset Series: RX 7000

Chipset Model: RX 7800 XT

GPU Boost Clock: 2.57 GHz

Game Clock: 2.25 GHz

Standard Memory: 16 GB

Memory Technology: GDDR6

Bus Width: 256 bit

Host Interface: PCI Express 4.0

DisplayPort: Yes

Number of DisplayPort Outputs: 3

HDMI: Yes

Number of HDMI Outputs: 1

Power Supply Wattage: 750 W

Power Connector: 2x 8-pin

Slot Space Required: Triple

Form Factor: Plug-in Card

Cooler Type: Fan Cooler

Height: 2.30" (58.42 mm)

Width: 5.90" (149.86 mm)

Length: 12.60" (320.04 mm)

Package Contents:

• Gaming Radeon RX 7800 XT OC Edition 16GB GDDR6 Graphic Card
• 1 x TUF certificate of Reliability
• 1 x TUF Gaming Graphics Card Holder
• 1 x TUF Velcro Hook & Loop
• 1 x Collection card
• 1 x Thank you card
• 1 x Speedsetup Manual

Platform Supported: PC

Environmentally Friendly: Yes

Environmental Compliance: Restriction of Hazardous Substances (RoHS)

Limited Warranty: 36 Month
