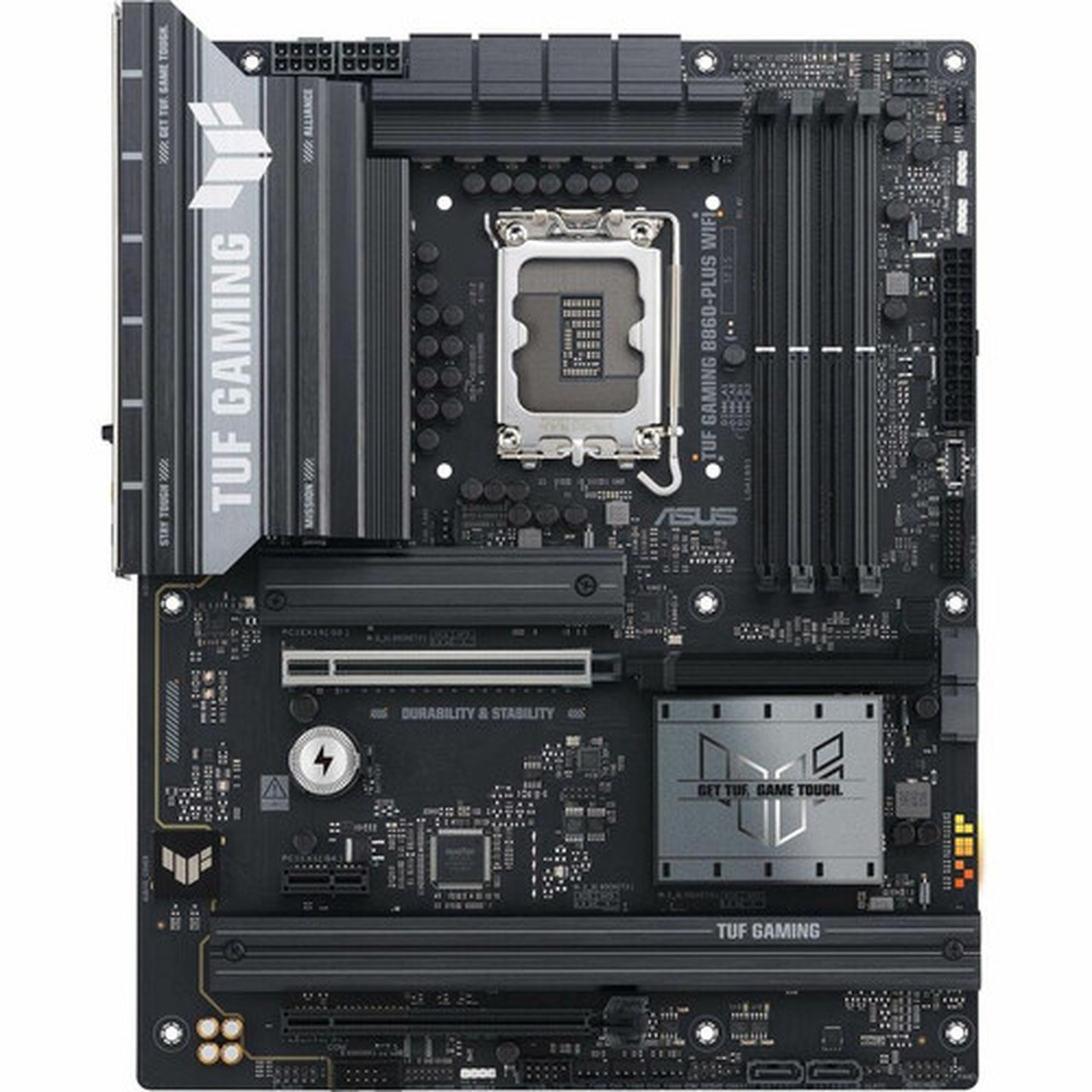

TUF GAMING B860-PLUS WIFI Gaming Desktop Motherboard - Intel B860 Chipset - Socket LGA-1851 - ATX - Core Ultra Processor Supported - - (TUF GAMING B860PLUSWIFI)

Marketing Information:

TUF GAMING B860-PLUS WIFI

ASUS TUF GAMING B860-PLUS WIFI takes all the essential elements of the latest Intel® Core Ultra Processors (Series 2) processors and combines them with game-ready features and proven durability. Engineered with military-grade components, an upgraded power solution and a comprehensive cooling system, this motherboard goes beyond expectations with rock-solid and stable performance for marathon gaming. TUF GAMING motherboards also undergo rigorous endurance testing to ensure that they can handle conditions where others may fail. This platform delivers the power and connectivity that advanced AI PC applications demand.

Intelligent | Intelligent Control | AI Advisor

ASUS AI Advisor is an ASUS technical expert that's always available to answer your questions. Owners of compatible ASUS motherboards can interact with this AI-powered technology using natural language to learn more about their hardware. For DIY beginners, it can provide easy-to-understand explanations of one-click optimization features like AI Overclocking and fan speed tuning, and for seasoned PC-building veterans, it can offer guidance and instructions on the latest features offered by ASUS.

UEFI BIOS

The UEFI interface delivers easy-to-use configuration options for PC beginners, and advanced features for veterans.

ASUS DriverHub

Simplify driver management with automatic detection, one-click installation and update for smooth, efficient system performance.

ASUS GlideX

Enable seamless screen sharing and control across PCs, tablets, and smartphones via USB or WiFi, supporting multiple platforms

Power Saving

Provides easy-to-use configuration options for PC beginners and advanced features for veterans.

Armoury Crate

Customize Aura Sync RGB and control ASUS devices. Includes product registration and updates.

AI-powered: Yes

Chipset Manufacturer: Intel

Chipset Model: B860

Total Processor Supported: 1

Processor Socket: Socket LGA-1851

Processor Supported: Core Ultra

Number of Memory Slots: 4

Memory Form Factor: DIMM,UDIMM

Maximum Memory Supported: 256 GB

Memory Speed Supported: 8666 MHz

Memory Technology: DDR5 SDRAM

Error Checking: ECC

Controller Type: Serial ATA/600

RAID Supported: Yes

RAID Levels: 0,1,5,10

Onboard Video: CPU Dependent Video

Audio Channels: 7.1

Bluetooth: Yes

Bluetooth Standard: Bluetooth 5.4

Gigabit Ethernet: Yes

2.5Gigabit Ethernet: Yes

Wireless LAN: Yes

Wireless LAN Standard: IEEE 802.11 a/b/g/n/ac/ax/be

Total Number of Expansion Slots: 3

Total Number of PCI Express Slots: 3

Number of PCI Express x1 Slots: 1

Number of PCI Express x16 Slots: 2

PCI Express Standard: PCI Express 5.0,PCI Express 4.0

Total Number of USB Ports: 8

S/PDIF: Yes

VGA: Yes

HDMI: Yes

HDMI Version: 2.1

DisplayPort: Yes

Number of Network (RJ-45) Ports: 1

Thunderbolt: Yes

Number of Thunderbolt 4 Ports: 2

Number of SATA Interfaces: 4

Number of M.2 Interfaces: 3

Total Number of Onboard USB Ports: 5

Number of Onboard USB 2.0 Ports: 2

Form Factor: ATX

Width: 12" (304.80 mm)

Depth: 9.60" (243.84 mm)

Package Contents:

• GAMING B860-PLUS WIFI Gaming Desktop Motherboard
• 2 x SATA 6Gb/s cables
• 1 x ASUS WiFi Q-Antenna
• 2 x M.2 rubber packages
• 1 x Screw package for M.2 SSD
• 1 x TUF GAMING sticker
• 1 x Quick start guide

Environmental Compliance: Restriction of Hazardous Substances (RoHS)

Limited Warranty: 3 Year
