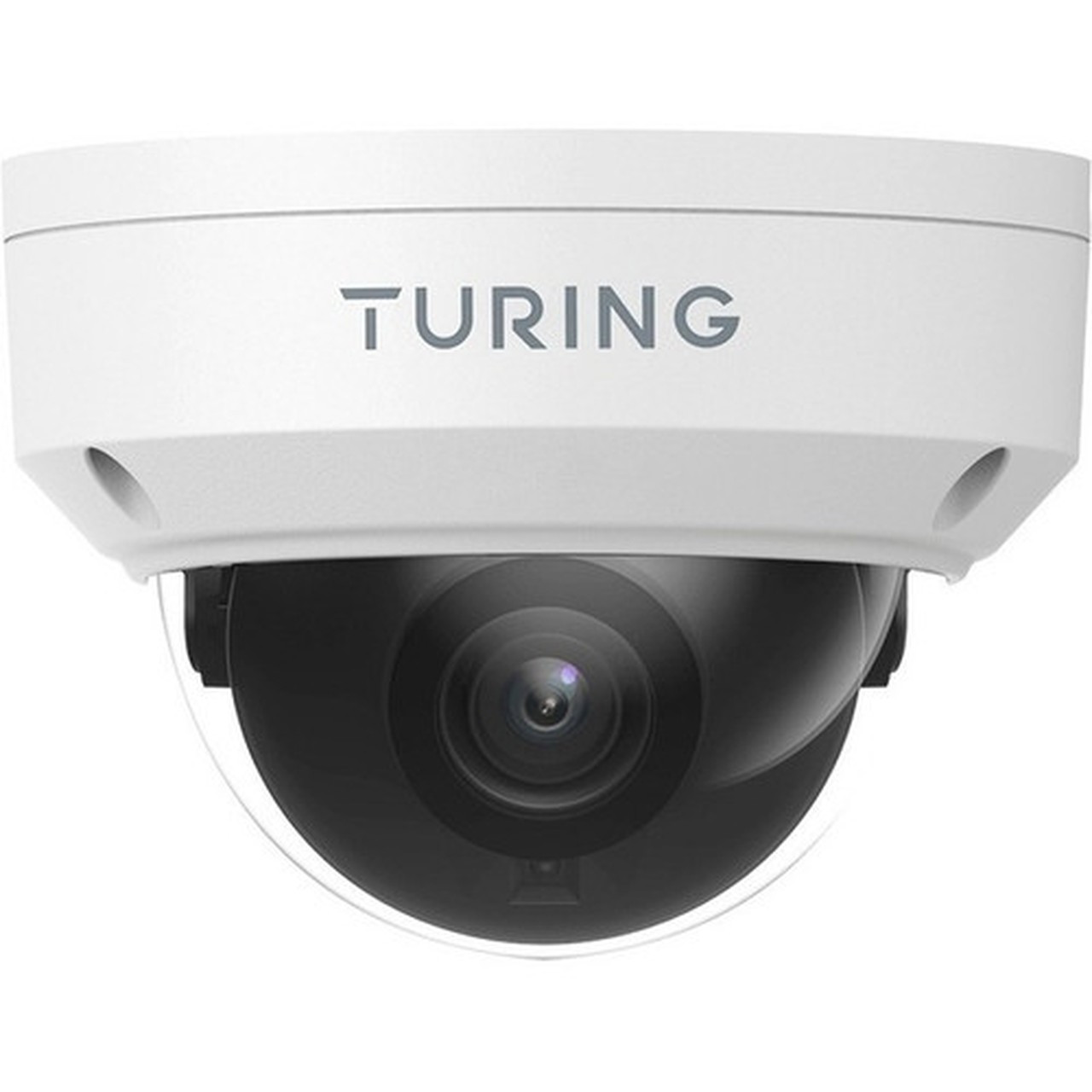

Turing Video Smart TP-MFD4A28 4 Megapixel HD Network Camera - Color - Dome - 98.43 ft (30 m) Infrared Night Vision - Ultra 265, H.265, (TP-MFD4A28)
Have questions?
1-844-836-8268
Ask an Experts-
Canadian distributor
Proud Canadian business since 2007
-
IT experts available
Consulting & Technicial services
-
Pre-configuration services
From VoiP phone to Clustered servers
-
Delivering across Canada
Shipping UPS Fedex & Purolator
Free Shipping*
Shipping Restrictions
Additional fees may apply for shipments to locations beyond normal service areas and heavy weight or oversize items.
Free Shipping*
Shipping Restrictions
Additional fees may apply for shipments to locations beyond normal service areas and heavy weight or oversize items.
HD Recording: Yes
Recording Formats: HD
Night Vision: Yes
Night Vision Distance: 98.43 ft (30 m)
Night Vision Type: Infrared
Image Sensor Type: CMOS
Color Supported: Color
Field of View: H: 101.1°, V: 55.3°, O: 111.1°
Effective Camera Resolution: 4 Megapixel
Video Formats: Ultra 265,H.265,H.264,Motion JPEG,H.264 BP,H.264 (MP),H.264 HP
Maximum Video Resolution: 2688 x 1520
Maximum Frame Rate: 30 fps
Lens Type: Fixed
Maximum Focal Length: 2.8 mm
Lens Included: Yes
Maximum Aperture: f/1.6
Shortest Shutter Speed: 1/100000 Second
Longest Shutter Speed: 1 Second
Connectivity Technology: Wired
Remote Management: Yes
Storage Type: Memory Card
Network (RJ-45): Yes
Input Voltage: 12 V DC
Mount Type: Junction Box Mount,Pole Mount,Wall Mount,Tilted Mount,Pendant Mount
Form Factor: Dome
Durability: Vandal Resistant
Height: 3.20" (81.28 mm)
Diameter: 4.30" (109.22 mm)
Weight (Approximate): 425 g
Minimum Operating Temperature: -22°F (-30°C)
Maximum Operating Temperature: 140°F (60°C)
Maximum Operating Humidity: 95%
Features: SD Card Local Storage,Wide Dynamic Range,Audio Detection,Surge Protection,Ingress Protection,Automatic White Balance,Tampering Alarm,2D Digital Noise Reduction (2DNR),3D Digital Noise Reduction,Highlight Compensation (HLC),Back Light Compensation (BLC),Day/Night,Digital Defog,Privacy Masking,Motion Detection
Impact Protection Rating: IK10
Ingress Protection Rating: IP67
Country of Origin: China
- For remote surveillance needs, this network camera is best suited
- Up to 2688 x 1520 resolution for surveillance in real-time
- CMOS sensor is cheaper as compare to CCD and consumes less power while producing better HD videos
- Provides night vision of objects at a distance of up to 98.43 ft (30 m)
[custom-specifications]
Specifications | |
Manufacturer | Turing Video |
Manufacturer Part Number | TP-MFD4A28 |
Manufacturer Website Address | http://www.turingvideo.com |
Brand Name | Turing Video |
Product Line | Smart |
Product Model | TP-MFD4A28 |
Product Name | 4MP HD TwilightVision IR Dome Network Camera |
Product Type | Network Camera |
Technical Information | |
HD Recording | Yes |
Recording Formats | HD |
Night Vision | Yes |
Night Vision Distance | 98.43 ft (30 m) |
Night Vision Type | Infrared |
Display & Graphics | |
Image Sensor Type | CMOS |
Color Supported | Color |
Field of View | H: 101.1°, V: 55.3°, O: 111.1° |
Effective Camera Resolution | 4 Megapixel |
Video | |
Video Formats | Ultra 265,H.265,H.264,Motion JPEG,H.264 BP,H.264 (MP),H.264 HP |
Maximum Video Resolution | 2688 x 1520 |
Maximum Frame Rate | 30 fps |
Lens | |
Lens Type | Fixed |
Maximum Focal Length | 2.8 mm |
Lens Included | Yes |
Maximum Aperture | f/1.6 |
Exposure | |
Shortest Shutter Speed | 1/100000 Second |
Longest Shutter Speed | 1 Second |
Network & Communication | |
Connectivity Technology | Wired |
Remote Management | Yes |
Storage | |
Storage Type | Memory Card |
Interfaces/Ports | |
Network (RJ-45) | Yes |
Power Description | |
Input Voltage | 12 V DC |
Physical Characteristics | |
Mount Type | Junction Box Mount,Pole Mount,Wall Mount,Tilted Mount,Pendant Mount |
Form Factor | Dome |
Durability | Vandal Resistant |
Height | 3.20" (81.28 mm) |
Diameter | 4.30" (109.22 mm) |
Weight (Approximate) | 425 g |
Environmental Conditions | |
Minimum Operating Temperature | -22°F (-30°C) |
Maximum Operating Temperature | 140°F (60°C) |
Maximum Operating Humidity | 95% |
Miscellaneous | |
Features | SD Card Local Storage,Wide Dynamic Range,Audio Detection,Surge Protection,Ingress Protection,Automatic White Balance,Tampering Alarm,2D Digital Noise Reduction (2DNR),3D Digital Noise Reduction,Highlight Compensation (HLC),Back Light Compensation (BLC),Day/Night,Digital Defog,Privacy Masking,Motion Detection |
Impact Protection Rating | IK10 |
Ingress Protection Rating | IP67 |
Country of Origin | China |
