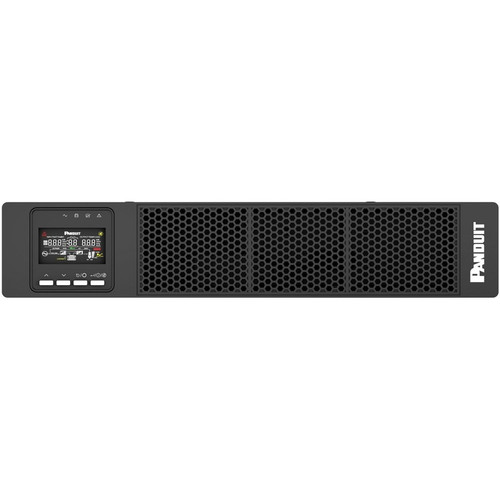

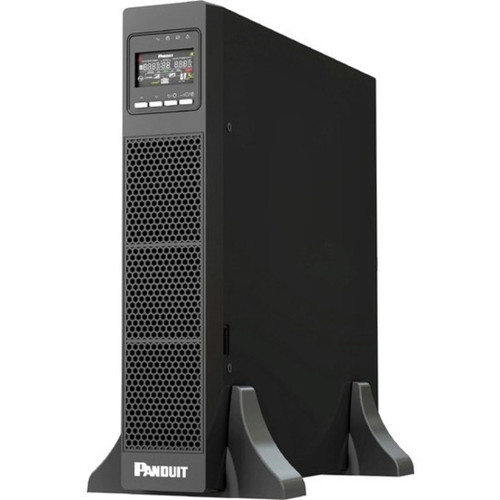

Panduit SmartZone 1000VA Rack Tower UPS Rail Mountable AVR Extended Recharge 120 V AC Input 100 Rack/Tower Hour U01S13V
Write a Review
Panduit
Panduit SmartZone 1000VA Rack Tower UPS Rail Mountable AVR Extended Recharge 120 V AC Input 100 Rack/Tower Hour U01S13V
-
Professional Pricing
B2B volume discount
-
IT Pro & Consultants
Real-world IT expertise
-
Configuration Service
Available on request
-
In-Stock in Canada
Toronto - AB - BC - QC
Quick Snapshot
- Category:
Key Strengths
- Whether you are a lefty or a righty, the symmetrically shaped mouse suits both
- USB Type A connectivity for a easy connection
- Optical LED for smoother movement and hassle-free performance
- 3 Years for UPS
- 2 Years for Internal Battery and EBP
AVR: Yes
Plug/Connector Type: NEMA 5-15P
Receptacle Type: NEMA 5-15R
Receptacle Detail: 6 x NEMA 5-15R
Dataline Protection: RJ-45
Overload Protection: Yes
Transfer Time: 0 ns
Phase: Single Phase
Application/Usage: Data Center,IT Equipment,Enterprise,Computer,Edge Computing
Load Capacity (VA): 1 kVA
Load Capacity (Watt): 1 kW
Input Voltage: 120 V AC
Input Voltage Range: 55 V AC - 150 V AC,100 V AC - 125 V AC
Output Voltage: 100 V AC,110 V AC,120 V AC,115 V AC,125 V AC
Input Frequency: 70 Hz
Output Frequency: 60 Hz
Waveform Type: Pure Sine Wave
Alarm: Yes
Status Indicators: Colorful LCD with four buttons and LED indicators
Serial Port: Yes
Network (RJ-45): Yes
EPO Port: Yes
USB (HID Compliant) Port: Yes
DC System Voltage: 24 V DC
Number of Batteries: 2
Battery Chemistry: Sealed Lead Acid (VRLA)
Battery Size: 12V
Battery Capacity: 9000 mAh
Backup/Run Time With External Battery Cabinet (Full Load): 2.70 Minute
Backup/Run Time With External Battery Cabinet (Half Load): 10.90 Minute
Battery Life: 5 Year
Hot Swappable: Yes
Typical Battery Recharge Time: 6 Hour
Replaceable Battery: Yes
Maximum Operating Elevation: 9842.52 ft (3000000 mm)
Storage Temperature: -13°F (-25°C) - 131°F (55°C)
Maximum Operating Temperature: 104°F (40°C)
Sound Emission: 55 dB
Thermal Dissipation: 400 BTU/h
Product Color: Black
Height: 3.41" (86.50 mm)
Width: 17.32" (440 mm)
Depth: 12.80" (325 mm)
Rack Height: 2U
Form Factor: Rack/Tower,Rail Mountable
Weight (Approximate): 12.40 kg
Energy Star: Yes
Environmentally Friendly: Yes
Energy Efficiency Certification: ENERGY STAR 2.0
Environmental Compliance: Restriction of Hazardous Substances (RoHS),Registration, Evaluation, Authorization and Restriction of Chemicals (REACH)
Limited Warranty: 5 Year
Additional Warranty Information:
- Rack/Tower convertible: Supports rack /tower installation with rotatable colorful LCD display
- Online Double Conversion with fully digital control: Provides stable and clean power with less ripple by filtering noise, automatic voltage regulation (AVR) and surge protection
- Wide input voltage range: 110-300 VAC for EU units and 55-150 VAC for NA units, covering extended voltage range, applicable for severe situation such as large power grid fluctuation
- High efficiency: Up to 96.5%, reducing the energy waste and the cost of electricity
- Energy savings: High Efficiency on Smart ECO mode for Online Double Conversion models
- Green design: RoHS and Reach, CE/UL/ENERGY STAR® 2.0 compliant for North America units
- Output unity power factor: Means more active power for IT equipment load
- Input power factor: Power factor correction topology on the input side dramatically reducing the total harmonic distortion (THD)
- Expandable battery packs: Allows to connect maximum four external battery packs, extending the UPS backup running time
- Intelligent Battery Management: The most optimal curve and temperature-compensated with advanced algorithms prolonging the battery life
[custom-specifications]
| Specifications | |
| Manufacturer | PANDUIT CORP |
| Manufacturer Part Number | U01S13V |
| Manufacturer Website Address | http://www.panduit.com |
| Brand Name | Panduit |
| Product Line | SmartZone |
| Product Model | U01S13V |
| Product Name | SmartZone U01S13V 1000VA Rack/Tower UPS |
| Product Type | Double Conversion Online UPS |
| Technical Information | |
| AVR | Yes |
| Plug/Connector Type | NEMA 5-15P |
| Receptacle Type | NEMA 5-15R |
| Receptacle Detail | 6 x NEMA 5-15R |
| Dataline Protection | RJ-45 |
| Overload Protection | Yes |
| Transfer Time | 0 ns |
| Phase | Single Phase |
| Application/Usage | Data Center,IT Equipment,Enterprise,Computer,Edge Computing |
| Power Description | |
| Load Capacity (VA) | 1 kVA |
| Load Capacity (Watt) | 1 kW |
| Input Voltage | 120 V AC |
| Input Voltage Range | 55 V AC - 150 V AC,100 V AC - 125 V AC |
| Output Voltage | 100 V AC,110 V AC,120 V AC,115 V AC,125 V AC |
| Input Frequency | 70 Hz |
| Output Frequency | 60 Hz |
| Waveform Type | Pure Sine Wave |
| Management | |
| Alarm | Yes |
| Controls/Indicators | |
| Status Indicators | Colorful LCD with four buttons and LED indicators |
| Interfaces/Ports | |
| Serial Port | Yes |
| Network (RJ-45) | Yes |
| EPO Port | Yes |
| USB (HID Compliant) Port | Yes |
| Battery Information | |
| DC System Voltage | 24 V DC |
| Number of Batteries | 2 |
| Battery Chemistry | Sealed Lead Acid (VRLA) |
| Battery Size | 12V |
| Battery Capacity | 9000 mAh |
| Backup/Run Time With External Battery Cabinet (Full Load) | 2.70 Minute |
| Backup/Run Time With External Battery Cabinet (Half Load) | 10.90 Minute |
| Battery Life | 5 Year |
| Hot Swappable | Yes |
| Typical Battery Recharge Time | 6 Hour |
| Replaceable Battery | Yes |
| Environmental Conditions | |
| Maximum Operating Elevation | 9842.52 ft (3000000 mm) |
| Storage Temperature | -13°F (-25°C) - 131°F (55°C) |
| Maximum Operating Temperature | 104°F (40°C) |
| Sound Emission | 55 dB |
| Thermal Dissipation | 400 BTU/h |
| Physical Characteristics | |
| Product Color | Black |
| Height | 3.41" (86.50 mm) |
| Width | 17.32" (440 mm) |
| Depth | 12.80" (325 mm) |
| Rack Height | 2U |
| Form Factor | Rack/Tower,Rail Mountable |
| Weight (Approximate) | 12.40 kg |
| Miscellaneous | |
| Energy Star | Yes |
| Environmentally Friendly | Yes |
| Energy Efficiency Certification | ENERGY STAR 2.0 |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS),Registration, Evaluation, Authorization and Restriction of Chemicals (REACH) |
| Warranty | |
| Limited Warranty | 5 Year |
| Additional Warranty Information |
|
[/custom-specifications]
[custom-options]
| Product | Panduit 24V Lead Acid Battery Cartridge 1kVA UPS - 24 V DC - Lead Acid - Valve-regulated |
| SKU | UVC024 |
| Sale Price | $257.17 |
| Product | Panduit Relay Card - UPS |
| SKU | URC005 |
| Sale Price | $217.59 |
| Product | Panduit Network Management Card - 1 x Network (RJ-45) Port(s) |
| SKU | UNCP01 |
| Sale Price | $664.71 |
| Product | Panduit SmartZone Stabilizer Bracket for UPS - 1 |
| SKU | UTOWFT |
| Sale Price | $31.46 |
| Product | Panduit SmartZone Rack Mount for UPS - 1 |
| SKU | URMKIT2 |
| Sale Price | $176.19 |
