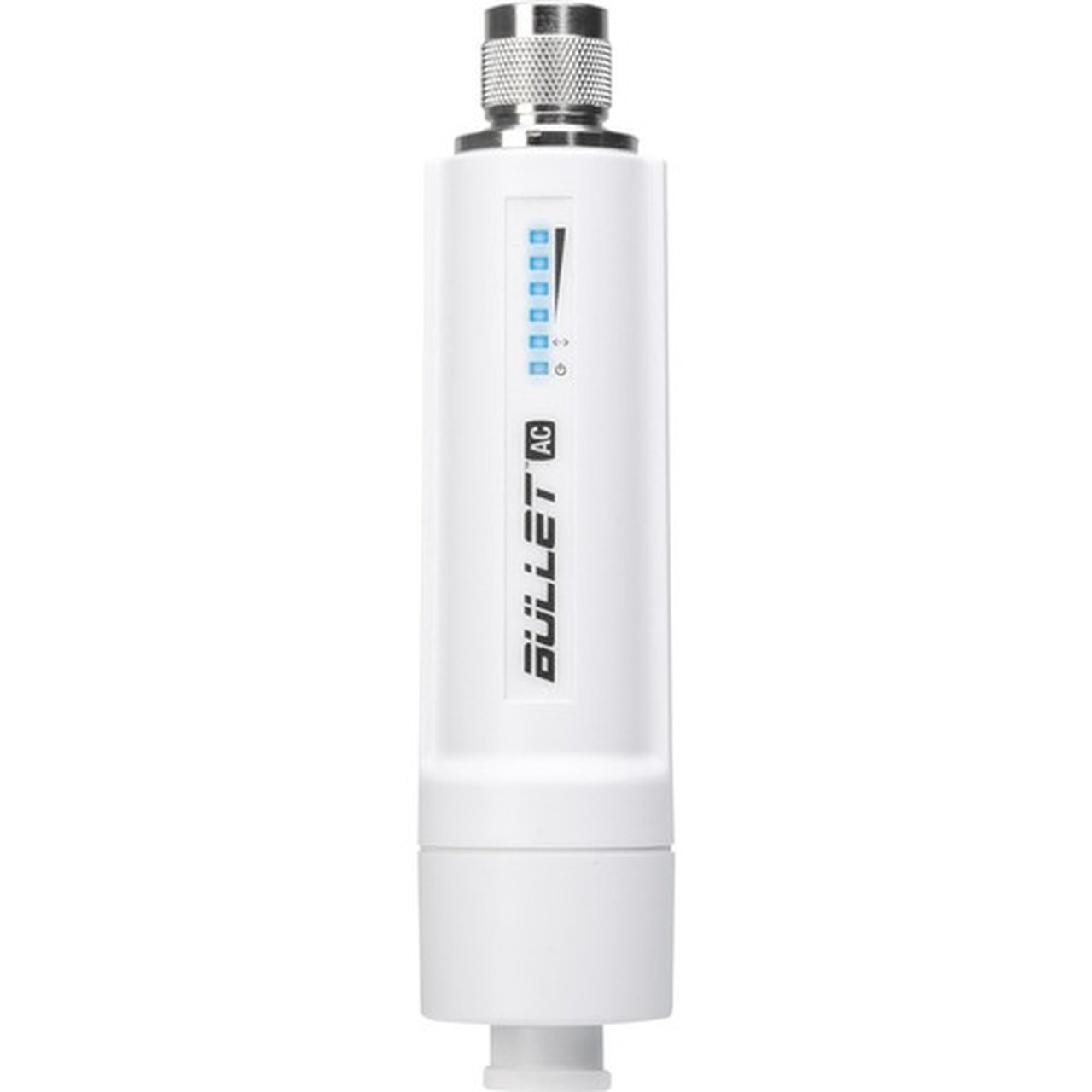

Ubiquiti Bullet B-DB-AC Wireless Access Point - IEEE 802.11ac 460 Mbit/s - 2.40 GHz, 5 GHz - Gigabit Ethernet (B-DB-AC-US)

Marketing Information: Ubiquiti Networks designed airMAX ac radios for high performance and ease of installation. You have the freedom to deploy the Bullet ™AC anywhere in the world, as it allows for a high degree of flexibility in configuring channel bandwidths (subject to local country regulations).

Zero-Variable Deployment

The Bullet AC eliminates the need to use RF cables and requires no special antenna or tools to install. There are no radio card / host board issues, no RF cable quality concerns, no mechanical stability concerns, and no enclosure mounting requirements. With the Bullet AC, operators can just plug in and go.

Software

airOS® 8 is the revolutionary operating system for Ubiquiti® airMAX ac products.

Powerful Wireless Features

• Access Point PtMP airMAX Mixed Mode
• airMAX ac Protocol Support
• Long-Range Point-to-Point (PtP) Link Mode
• Selectable Channel Width
• PtP: 10/20/30/40/50/60/80 MHz
• PtMP: 10/20/30/40 MHz
• Automatic Channel Selection
• Transmit Power Control: Automatic/Manua
• Automatic Distance Selection (ACK Timing)
• Strongest WPA2 Security

• airMagic® Channel Selection Tool
• Redesigned User Interface
• Dynamic Configuration Changes
• Instant Input Validation
• HTML5 Technology
• Optimization for Mobile Devices
• Detailed Device Statistics
• Comprehensive Array of Diagnostic Tools, including RF Diagnostics and airView® Spectrum Analyzer

• Persistent RF Error Vector Magnitude (EVM) constellation diagrams
• Signal, Noise, and Interference (SNI) diagrams
• Noise Floor diagrams
• Expected/Current Rate diagrams

Wireless LAN Standard: IEEE 802.11ac

Frequency Band: 2.40 GHz,5 GHz

Wireless Transmission Speed: 460 Mbit/s

Ethernet Technology: Gigabit Ethernet

Number of Network (RJ-45) Ports: 1

PoE PD Port: Yes

Height: 7.48" (190 mm)

Diameter: 1.81" (46 mm)

Weight (Approximate): 116 g

Limited Warranty: 1 Year
