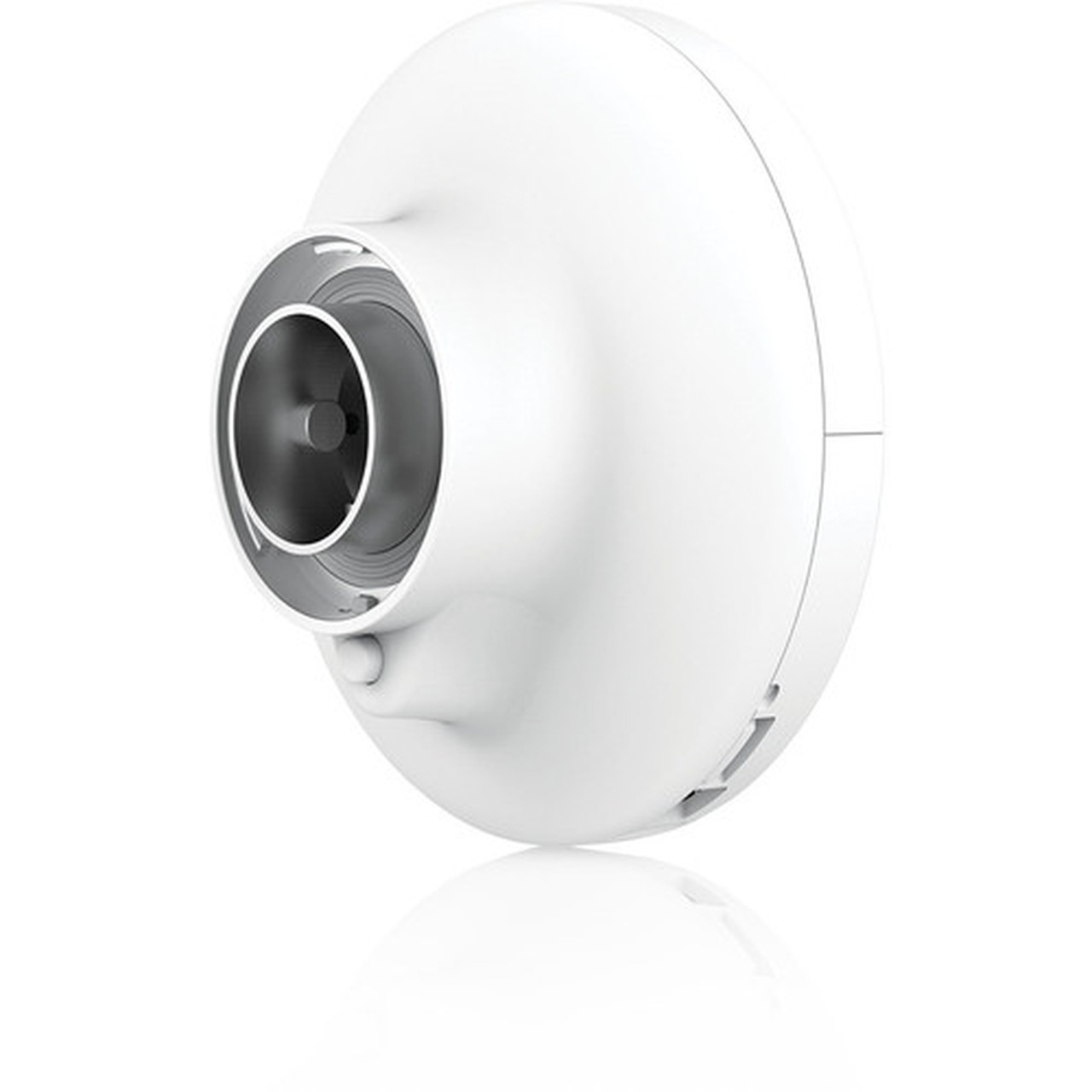

Ubiquiti PrismStation AC PS-5AC IEEE 802.11ac 500 Mbit/s Wireless Bridge - 5 GHz, 2.40 GHz - MIMO Technology - 1 x Network (RJ-45) - (PS-5AC)

(No reviews) Write a Review
$410.15
$399.15
$365.96
(You save $44.19 )
SKU: PS-5AC
UPC: 703624199883
Availability: Toronto
Weight: 5.35 LBS
Adding to cart… The item has been added
  • Proprietary Ubiquiti® airMAX ac Processor
  • AirPrism Active RF Filtering Technology
  • Dedicated Wi-Fi Radio for Management
    Marketing Information: The PrismStation™ 5AC combines airPrism technology with dedicated Wi-Fi management.

    Improved Noise Immunity

    The PrismStation 5AC directs RF energy in a tighter beamwidth using one of these compatible antennas:
    • Horn-5-30
    • Horn-5-45
    • Horn-5-60
    • Horn-5-90
    • U-OMT-Dish
    With the focus in one direction, the PrismStation 5AC blocks or spatially filters out noise, so noise immunity is improved. This feature is especially important in an area crowded with other RF signals of the same or similar frequency

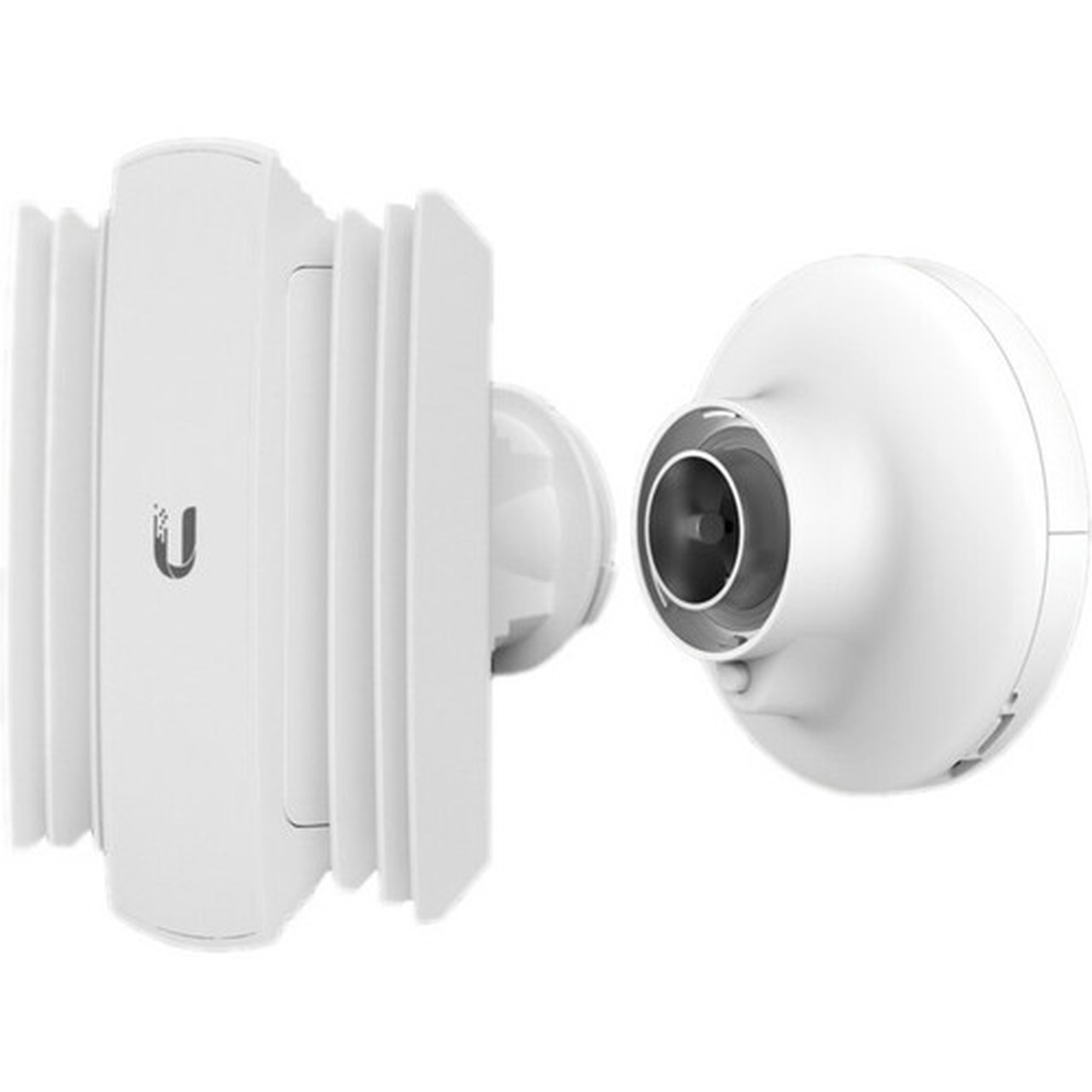

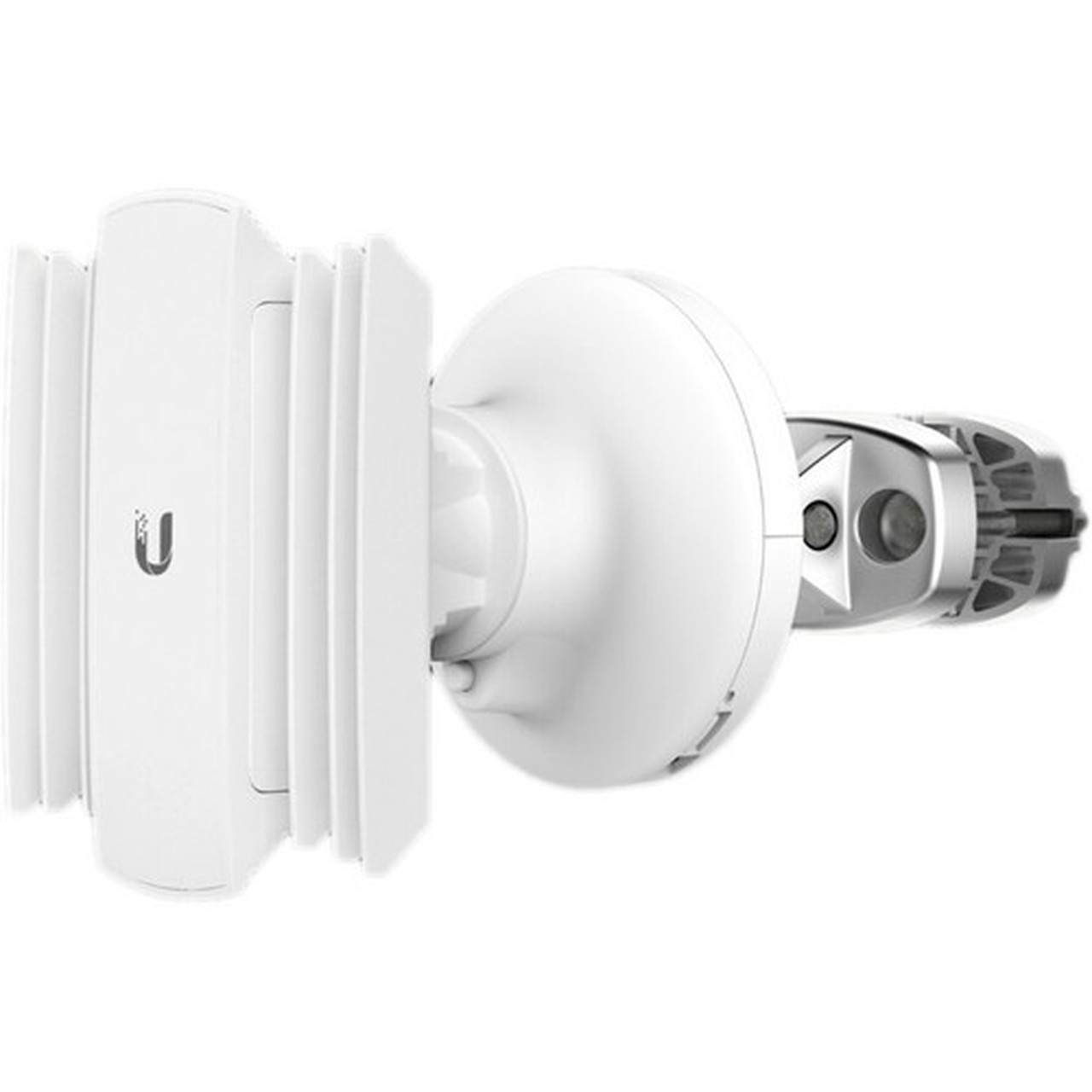

    Modular Design

    The interchangeable antenna improves beam-shaping for specific deployment needs.

    Scalability

    Horn antennas increase co-location performance without sacrificing gain.

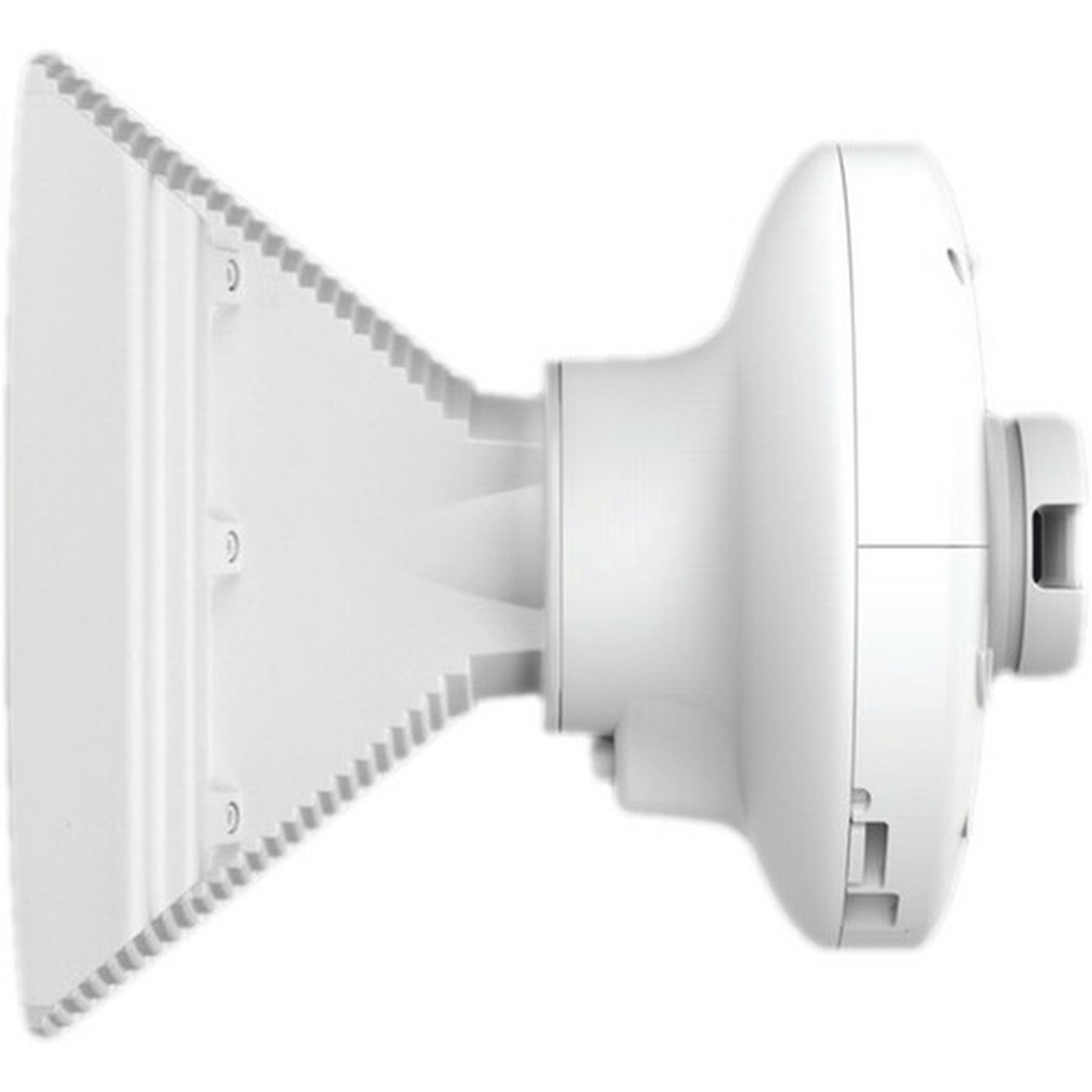

    Symmetrical horn antennas (30° model: Horn-5-30 and 45° model: Horn-5-45) offer breakthrough scalability options for wireless systems. Unique beam performance and great co-location characteristics allow for a higher density of sectors than traditional sector technology.

    Enhanced Co-Location

    Asymmetrical horn antennas (60° model: Horn-5-60 and 90° model: Horn-5-90) have naturally attenuated side lobes and extremely low back radiation. They offer the best front-to-back ratio in the industry and the lowest side lobe radiation. Asymmetrical horn antennas are ideal for cluster sector installations with high co-location requirements.

    Extended Performance

    A robust dish antenna, model U-OMT-Dish, offers excellent beam directivity with 27 dBi of gain. It can be paired with the PrismStation 5AC to extend radio performance for a greater number of WISP customers.

    Providing high throughput and an innovative form factor, the PrismStation 5AC is versatile and cost-effective to deploy. It also uses the latest ESD protection to help protect against power surges.

    Software

    Sporting an all-new design for improved usability, airOS® v8 is the revolutionary operating system for Ubiquiti® airMAX ac products.

    Powerful Wireless Features
    • Access Point PtMP airMAX Mixed Mode
    • airMAX ac Protocol Support
    • Long-Range Point-to-Point (PtP) Link Mode
    • Selectable Channel Width
      • PtP: 10/20/30/40/50/60/80 MHz
      • PtMP: 10/20/30/40 MHz
    • Automatic Channel Selection
    • Transmit Power Control: Automatic/Manual
    • Automatic Distance Selection (ACK Timing)
    • Strongest WPA2 Security
    Usability Enhancements
    • airMagic® Channel Selection Tool
    • Dynamic Configuration Changes
    • Instant Input Validation
    • Redesigned User Interface
    • HTML5 Technology
    • Optimization for Mobile Devices
    • Detailed Device Statistics
    • Diagnostic Tools, including RF Diagnostics, and airView® Spectrum Analyzer
    UNMS App

    The PrismStation 5AC integrates a separate Wi-Fi radio for fast and easy setup using your mobile device.

    Accessing airOS via Wi-Fi

    The UNMS ™ app provides instant accessibility to the airOS configuration interface and can be downloaded from the App Store® (iOS) or Google Play ™ (Android). The UNMS app allows you to set up, configure, and manage the PrismStation 5AC and offers various configuration options once you're connected or logged in.

    Advanced RF Analytics

    airMAX ac devices feature a multi-radio architecture to power a revolutionary RF analytics engine.

    Wireless LAN Standard: IEEE 802.11ac
    Frequency Band:
    • 5 GHz
    • 2.40 GHz

    Wireless Transmission Speed: 500 Mbit/s
    MIMO Technology: Yes
    Ethernet Technology: Gigabit Ethernet
    Number of Network (RJ-45) Ports: 1
    PoE PD Port: Yes
    Form Factor: Pole-mountable
    Height: 4.09" (104 mm)
    Diameter: 6.10" (155 mm)
    Weight (Approximate): 770 g
    Package Contents:
    • PrismStation AC PS-5AC Wireless Bridge
    • 24V, 1A Gigabit PoE Adapter
    • Pole-Mount Kit

    Limited Warranty: 1 Year

[custom-specifications]

Specifications
Manufacturer: Ubiquiti Inc.
Manufacturer Part Number: PS-5AC
Manufacturer Website Address: http://www.ui.com
Brand Name: Ubiquiti
Product Line: PrismStation AC
Product Model: PS-5AC
Product Name: PrismStation AC PS-5AC Wireless Bridge
Product Type: Wireless Bridge
Technical Information
Wireless LAN Standard: IEEE 802.11ac
Frequency Band:
  • 5 GHz
  • 2.40 GHz

Wireless Transmission Speed: 500 Mbit/s
MIMO Technology: Yes
Interfaces/Ports
Ethernet Technology: Gigabit Ethernet
Number of Network (RJ-45) Ports: 1
PoE PD Port: Yes
Physical Characteristics
Form Factor: Pole-mountable
Height: 4.09" (104 mm)
Diameter: 6.10" (155 mm)
Weight (Approximate): 770 g
Miscellaneous
Package Contents:
  • PrismStation AC PS-5AC Wireless Bridge
  • 24V, 1A Gigabit PoE Adapter
  • Pole-Mount Kit

Warranty
Limited Warranty: 1 Year
