Marketing Information: Device Protection
PoE Adapters are highly reliable, and when used with Ubiquiti TOUGHCable™, they provide earth grounding and surge protection to help protect against electrostatic discharge (ESD) events.
Convenient Wall-Mounting
The 24V, 0.5A models, POE-24-12W and POE-24-12W-G, are wall-mountable using the optional wall-mount brackets.
Seamless airGateway™ Compatibility
The 15V, 0.8A and 24V, 0.5A models, POE-15-12W, POE-24-12W and POE-24-12W-G, work with the airGateway™ to bridge airMAX® connections to Wi-Fi at customer locations.
Protection Type: - ESD Protection
- Clamping Protection
- Surge Protection
Input Voltage: Maximum Output Voltage: 24 V DCMinimum Input Current: 200 mAMaximum Input Current: 300 mAMaximum Output Current: 500 mAMaximum Output Power: 12 WInput Ports: EthernetOutput Ports: PoEForm Factor: Wall MountableHeight: 1.14" (28.96 mm)Width: 1.73" (43.94 mm)Depth: 2.30" (58.42 mm)Weight (Approximate): 92 gCompatibility: Ubiquiti airGateway Wireless Access Points
[custom-specifications]
SpecificationsManufacturer: Ubiquiti Inc.
Manufacturer Part Number: POE-24-12W-5P
Manufacturer Website Address: http://www.ui.com
Brand Name: Ubiquiti
Product Model: POE-15-12W

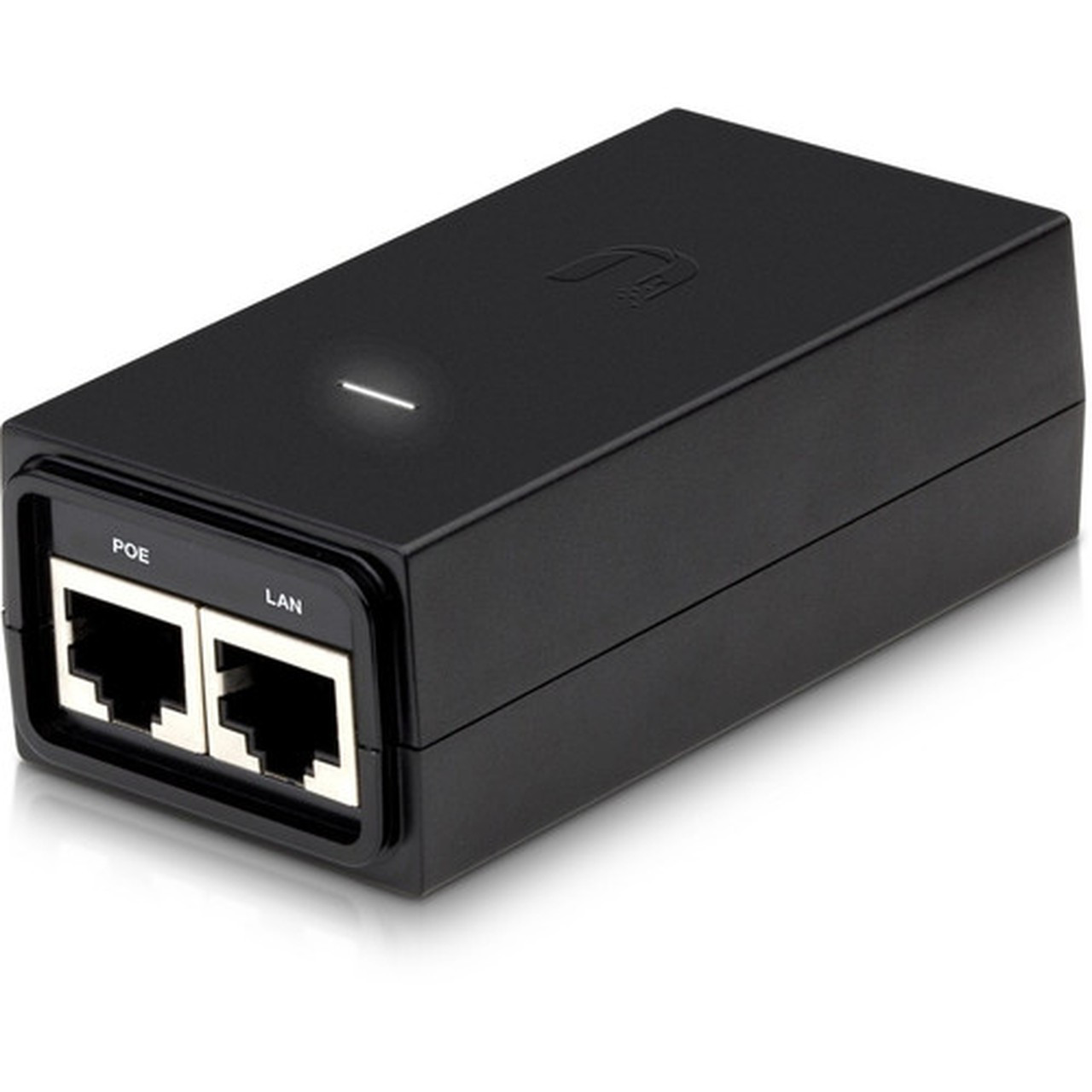

Product Name: POE-15-12W PoE Injector
Packaged Quantity: 5 Pack
Product Type: PoE Injector
Technical InformationProtection Type:
- ESD Protection
- Clamping Protection
- Surge Protection
Power DescriptionInput Voltage:
Maximum Output Voltage: 24 V DC
Minimum Input Current: 200 mA
Maximum Input Current: 300 mA
Maximum Output Current: 500 mA
Maximum Output Power: 12 W
Interfaces/PortsInput Ports: Ethernet
Output Ports: PoE
Physical CharacteristicsForm Factor: Wall Mountable
Height: 1.14" (28.96 mm)
Width: 1.73" (43.94 mm)
Depth: 2.30" (58.42 mm)
Weight (Approximate): 92 g
MiscellaneousCompatibility: Ubiquiti airGateway Wireless Access Points
[/custom-specifications]
