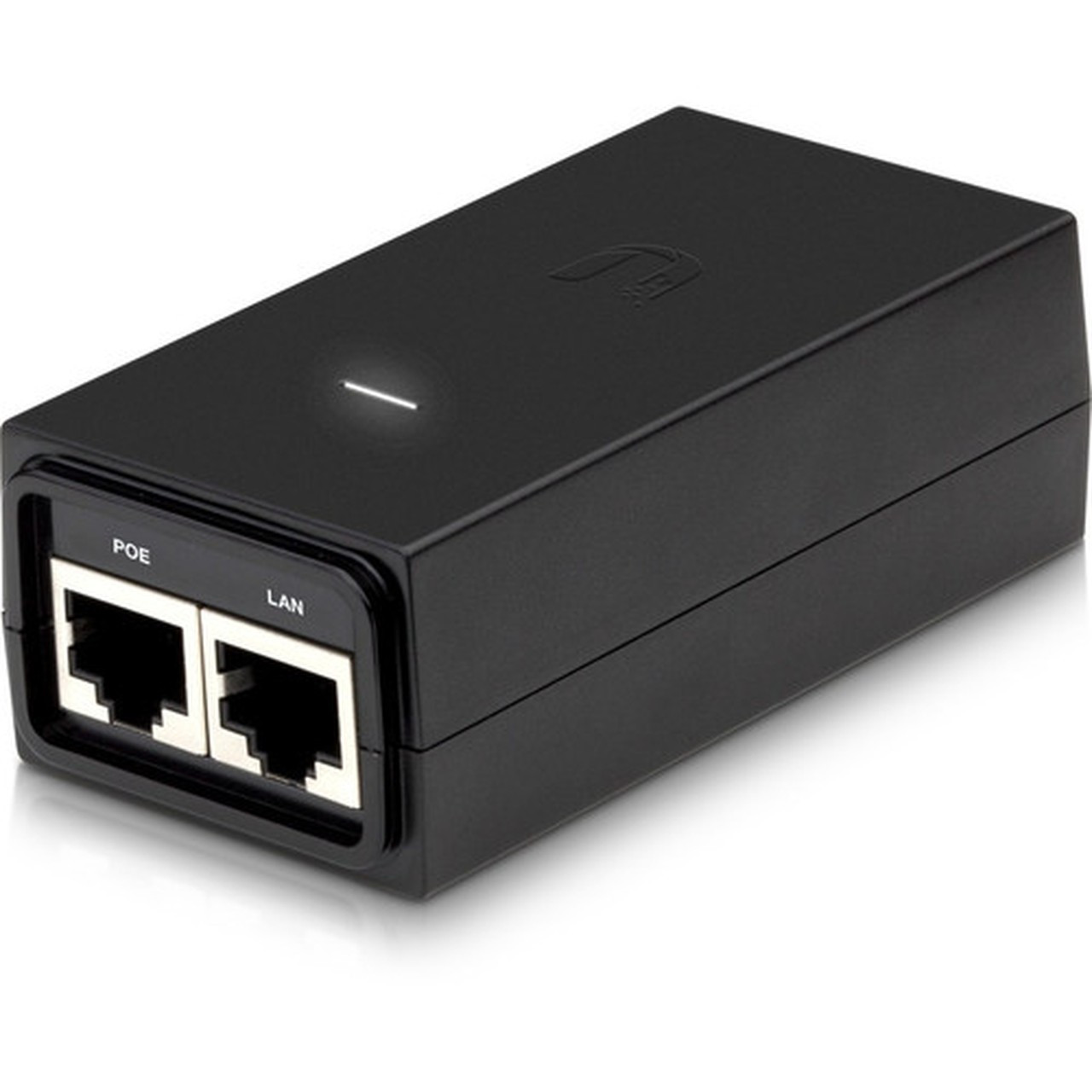

Ubiquiti POE-24-12W-G Power over Ethernet Injector - 120 V AC, 230 V AC Input - 24 V DC, 500 mA Output - 1 x 10/100/1000Base-T Input - (POE-24-12W-G)

Marketing Information:

Ubiquiti Networks offers Power over Ethernet (PoE) Adapters to power a variety of Ubiquiti products. The PoE Adapters are compatible with most Ubiquiti PoE devices, including:

• airFiber®
• airMAX®
• EdgeMAX®
• mFi®
• UniFi® AP
• UniFi Protect / airVision®
• UniFi LED
• U Fiber

Ubiquiti PoE Adapter Compatibility with the airGateway®

Specific PoE Adapter models are designed to work with the airGateway. The airGateway is a compact CPE (consumer premises equipment) gateway with built-in Wi-Fi used to connect the subscriber's local network to the WISP network.

The airGateway is available in three models:

• airGateway Standard model with an internal antenna
• airGateway Pro Dual-Band Wi-Fi model with an internal antenna
• airGateway-LR Long-range Wi-Fi model with an external antenna for extended range

Protection

Ubiquiti PoE Adapters provide a variety of features to help protect your PoE devices:

• Surge protection
• Clamping protection
• Maximum surge discharge
• Peak pulse current
• AC cable with earth ground

Electrostatic discharge (ESD) is the leading cause for outdoor device failures. You can effectively protect against ESD damage using a grounded Ubiquiti PoE Adapter, TOUGHCable™, and TOUGHCable Connectors.

Potential for ESD

Areas vulnerable to ESD events in a network without a Ubiquiti PoE Adapter.

Protection Against ESD

? Ubiquiti PoE Adapters and TOUGHCable protect against ESD events in a network.

Protection Type: Surge Protection,Clamping Protection,Peak Pulse Current,ESD Protection

Input Voltage: 120 V AC,230 V AC

Maximum Output Voltage: 24 V DC

Minimum Input Current: 200 mA

Maximum Input Current: 300 mA

Maximum Output Current: 500 mA

Input Ports: 10/100/1000Base-T

Output Ports: 10/100/1000Base-T

Form Factor: Wall Mountable

Height: 3.43" (87 mm)

Width: 1.73" (44 mm)

Depth: 1.14" (29 mm)

Weight (Approximate): 99.4 g

Compatibility:

Ubiquiti Products:

• airFiber
• airMAX
• airVision
• UniFi
• mFi
• UniFi® AP
• UniFi Protect / airVision®
• UniFi LED
• UFiber

Certifications & Standards:

• IEC-320 C6
• CE
• FCC
• IC,
• UL
• IEC 60950-1:2005+A1
• UL60950-1
• EN55022:2010
• EN55024:2010
• FCC Class B

Country of Origin: China
