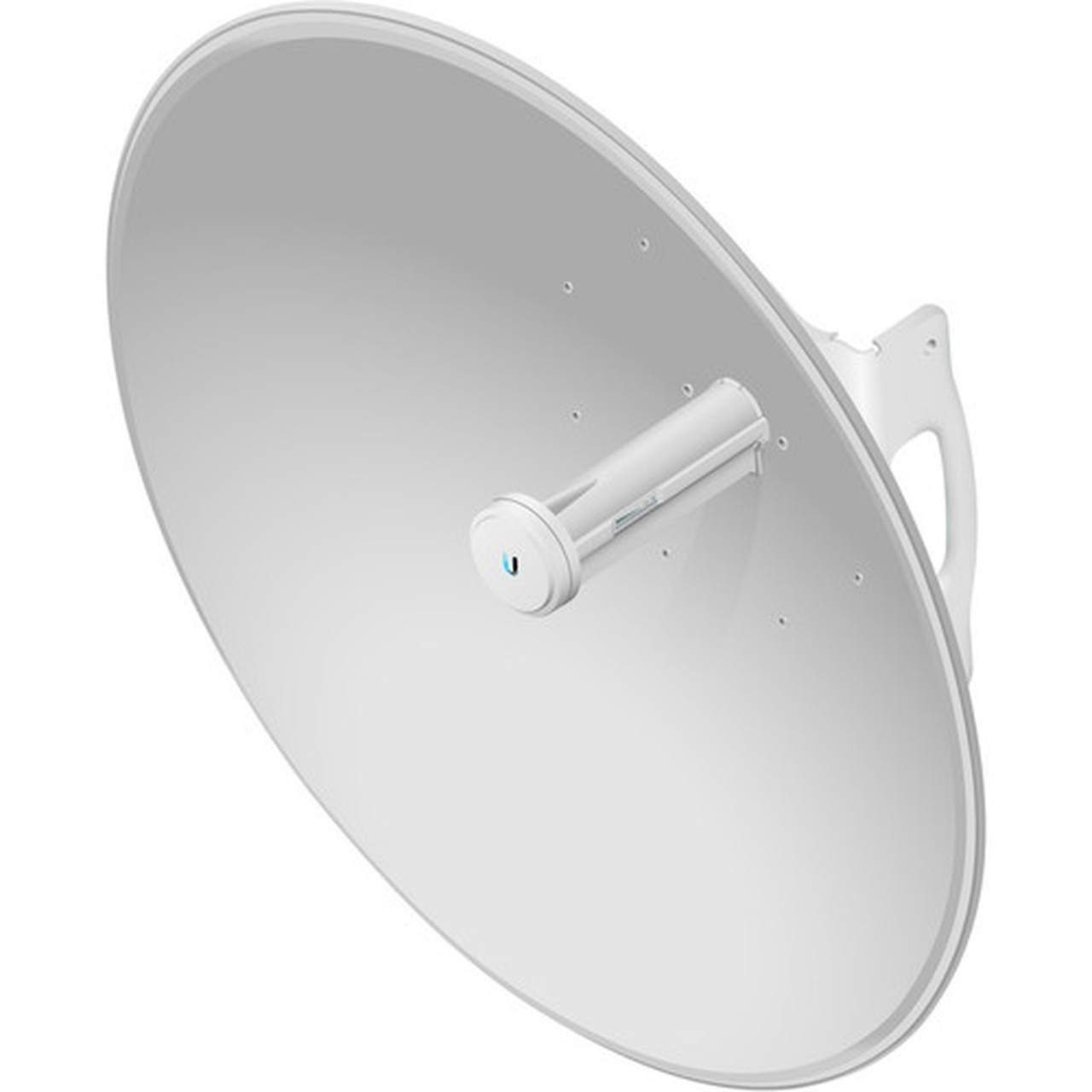

Ubiquiti PowerBeam ac PBE-5AC-620 450 Mbit/s Wireless Bridge - 5.88 GHz, 18.6 Mile Range (PBE-5AC-620)

Marketing Information: Incorporating a dish reflector design with proprietary airMAX® ac technology, the PowerBeam™ ac is ideal for CPE deployments requiring maximum performance.

Integrated Radio Design

Ubiquiti's InnerFeed™ technology integrates the radio into the feedhorn of an antenna, so there is no need for cables to connect the radio to the antenna. This improves performance because it eliminates cable losses.

Performance Breakthrough

airMAX® ac products offer improved latency, noise immunity, scalability and significantly increased throughput performance.

Superior Processing

Ubiquiti's airMAX® engine with custom IC dramatically improves TDMA latency and network scalability. The custom silicon provides hardware acceleration capabilities to the airMAX scheduler, to support the high data rates and dense modulation used in airMAX ac technology.

Incredible Antenna "Beam" Performance

The form factor of the PowerBeam™ ac features the highest gain for its size. The PowerBeam ac's excellent beam directivity provides the best performance in high-noise environments.

Advanced Software Technology

Ubiquiti's airMAX® technology is proven in millions of deployments worldwide, exhibiting outstanding performance in outdoor environments. The TDMA airMAX protocol enables unprecedented scalability, high throughput and low latency in unlicensed, multipoint networks.

Wireless LAN Standard: IEEE 802.11ac

Frequency Band: 5.88 GHz

Outdoor Antenna Range: 18.6 Mile

Wireless Transmission Speed: 450 Mbit/s

Ethernet Technology: Ethernet,Fast Ethernet,Gigabit Ethernet

Number of Network (RJ-45) Ports: 1

PoE (RJ-45) Port: No

PoE PD Port: Yes

VGA: No

HDMI: No

USB: No

Powerline: No

Management Port: No

Form Factor: Pole-mountable

Height: 24.41" (620 mm)

Width: 24.41" (620 mm)

Depth: 15.20" (386 mm)

Weight (Approximate): 6.40 kg

Package Contents:

• High-Performance airMAX ac Bridge
• Pole-Mount Kit

Environmentally Friendly: Yes

Limited Warranty: 1 Year
