VERTIV GU NI30684 PDU - Monitored - NEMA L6-30P - 230 V AC - Network (RJ-45) - 10 ft Cord Length - 0U - Vertical - Rack-mountable, - (VP43301)
- PDU improves efficiency, uptime and growth of data centers
- Before critical input source become overloaded always be warned with monitored PDUs
- Marketing Information:
- IEC 60320 C13
- IEC 60320 C19
- DHCP
- HTTP
- HTTPS
- IPv4
- IPv6
- LDAP
- NTP
- RADIUS
- RSTP
- SSH
- SMTP
- SNMP (v1/v2c/v3)
- Syslog
- TACACS+
- Rack-mountable
- Cabinet-mountable

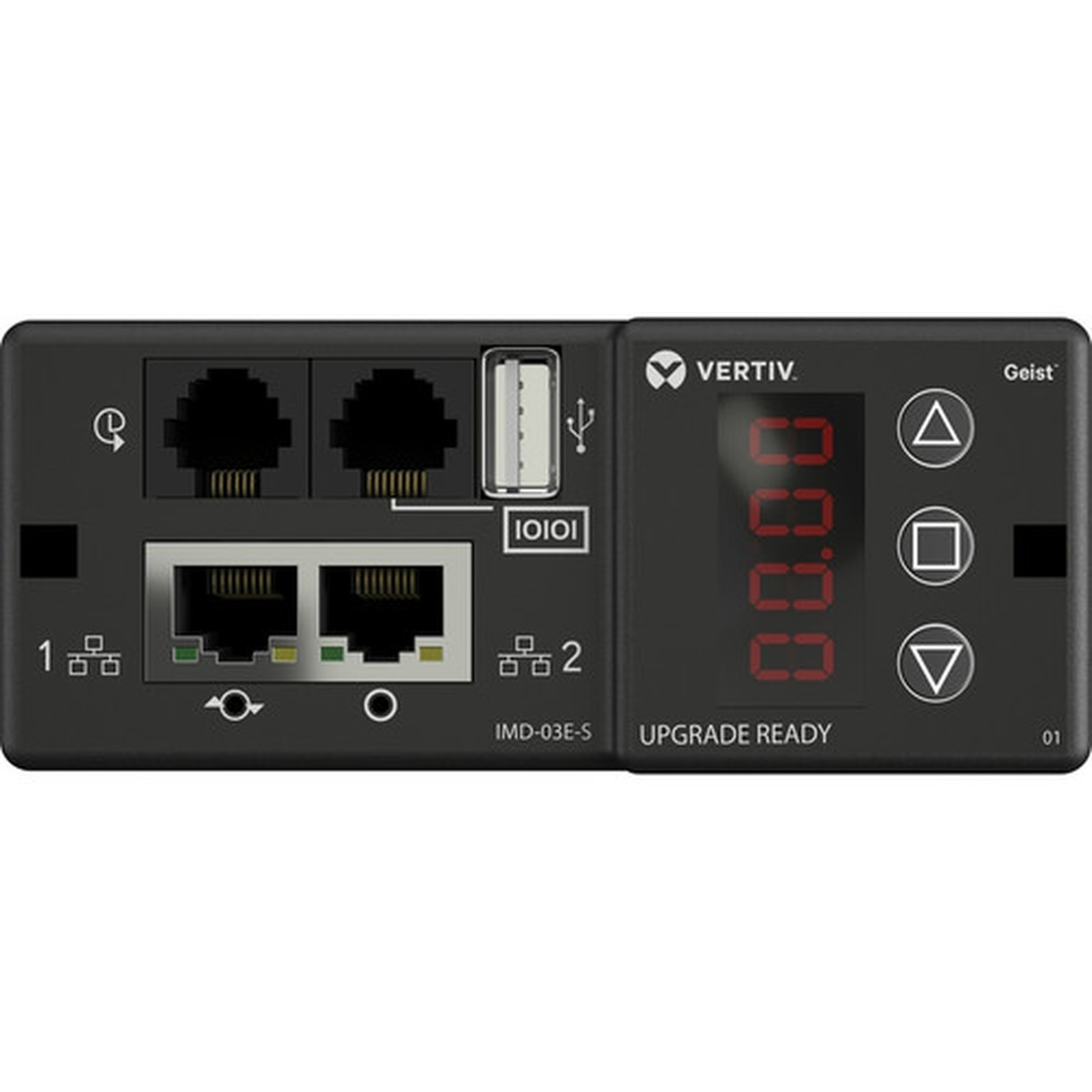

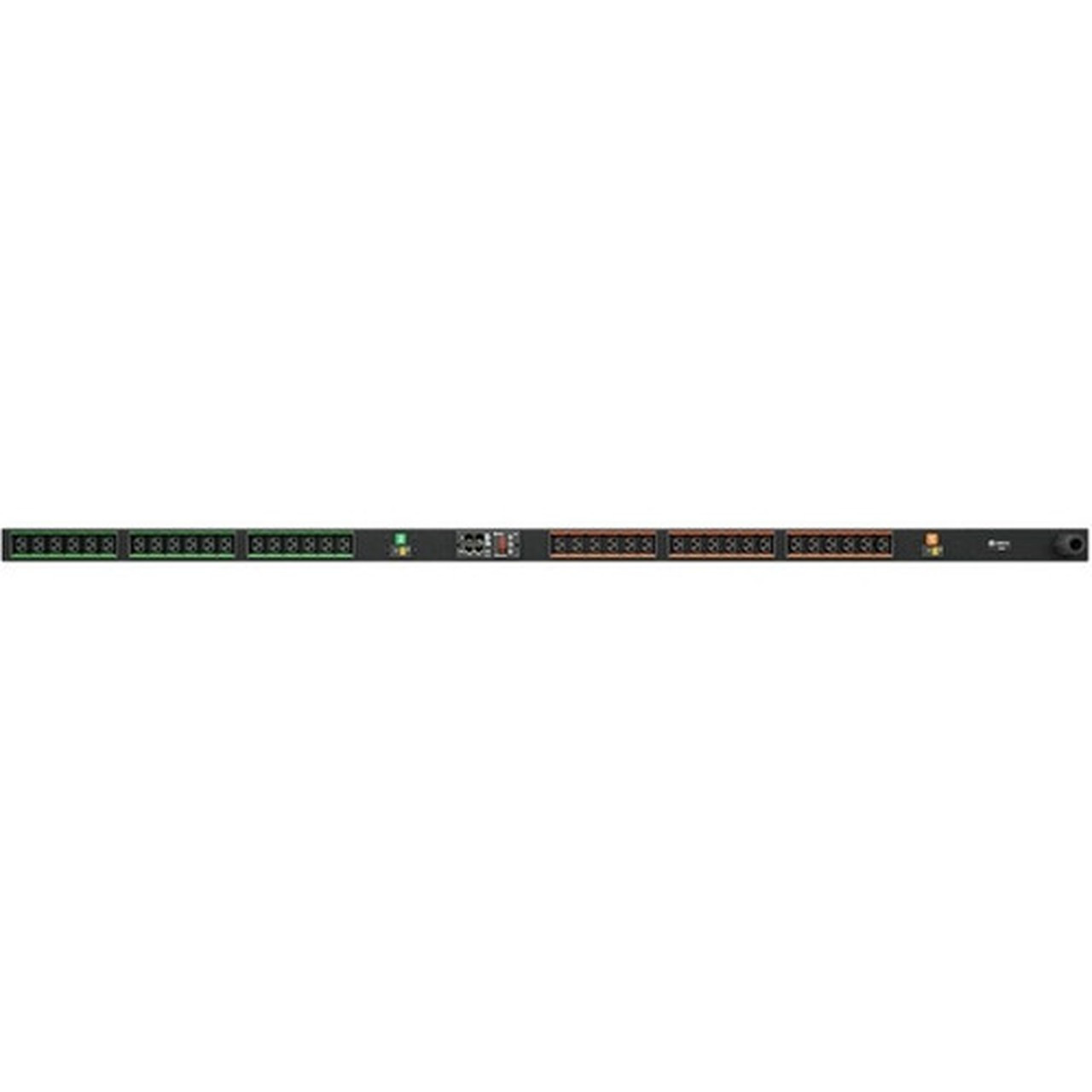

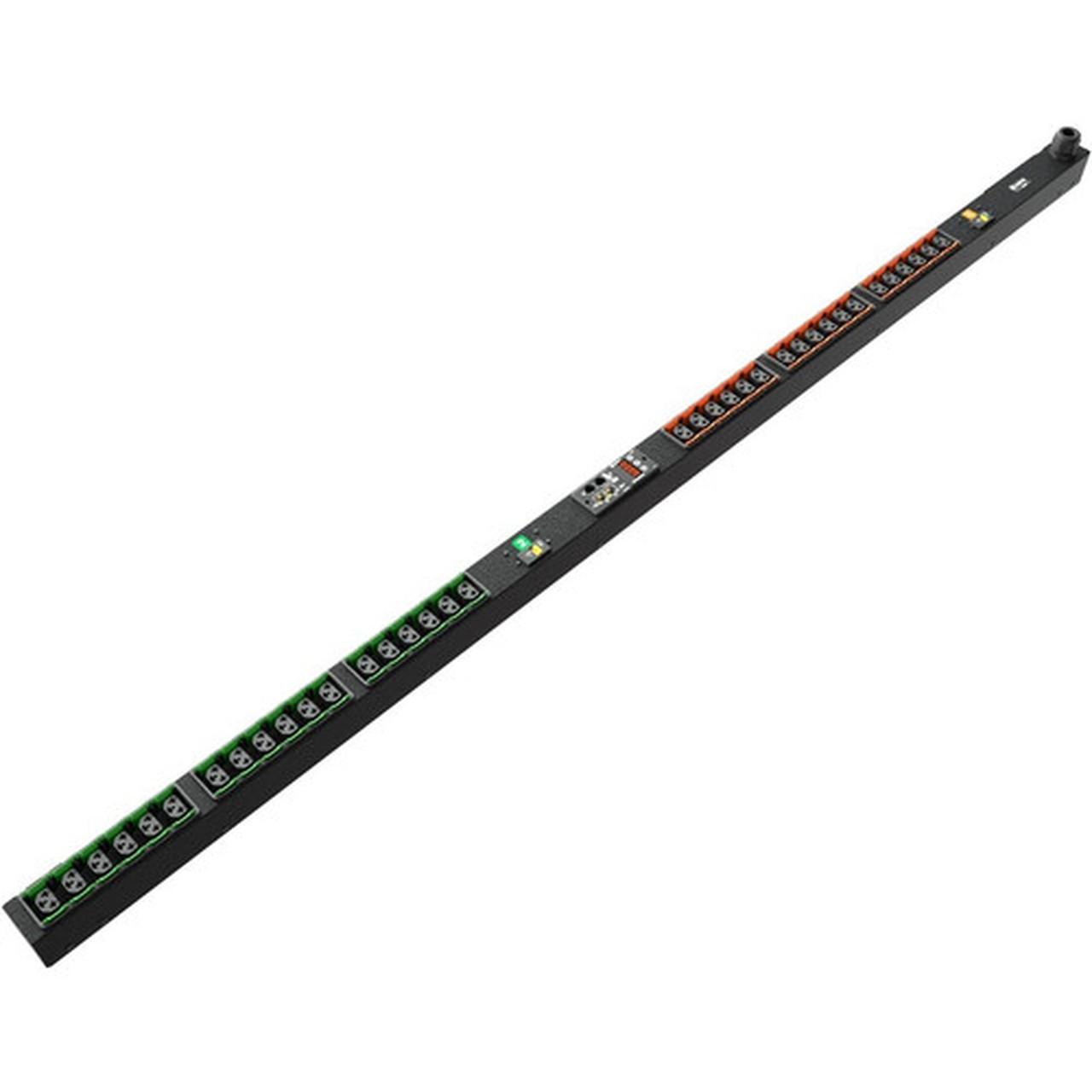

The Vertiv Geist NI30684 rPDU is a versatile rack power distribution unit featuring 36 Combination C13/C19 Outlets. The NI30684 is a 30A, 208V single phase upgradeable rack PDU with an L6-30P plug and 10ft power cord. The NI30684 provides unit level remote power monitoring and environmental monitoring capabilities with the addition of optional environmental sensors. Remotely monitor and manage the rPDU through any web browser or via serial communication. The Combination C13/C19 Outlets accommodate C14 and C20 plugs interchangeably. The high retention outlets reduce the risk of costly downtime from accidental disconnections of the power cord and are also P-Lock compatible. The hot-swappable IMD provides peace of mind that as business needs change the technology can easily be updated.
PDU Type: MonitoredPhase: Single PhasePlug/Connector Type: NEMA L6-30PReceptacle Type:[custom-specifications]
Manufacturer: Vertiv
Manufacturer Part Number: VP43301
Manufacturer Website Address: http://www.vertiv.com/
Brand Name: VERTIV
Product Series: N
Product Name: GU NI30684 PDU
Product Type: PDU
Technical Information
PDU Type: Monitored
Phase: Single Phase
Plug/Connector Type: NEMA L6-30P
Receptacle Type:
- IEC 60320 C13
- IEC 60320 C19
Protection Type: Overcurrent Protection
Power Description
Input Voltage: 230 V AC
Input Voltage Range: 200 V AC - 240 V AC
Output Voltage: 240 V AC
Output Voltage Range: 200 V AC - 240 V AC
Power Rating (Watt): 4.90 kW
Input Current: 30 A
Management
Management:
- DHCP
- HTTP
- HTTPS
- IPv4
- IPv6
- LDAP
- NTP
- RADIUS
- RSTP
- SSH
- SMTP
- SNMP (v1/v2c/v3)
- Syslog
- TACACS+
Remote Outlet Switching: No
Interfaces/Ports
Network (RJ-45): Yes
Physical Characteristics
Product Color: Black
Mounting Orientation: Vertical
Mount Type:
- Rack-mountable
- Cabinet-mountable
Rack Height: 0U
Cord Length: 10 ft
Height: 66.25" (1682.75 mm)
Width: 2" (50.80 mm)
Depth: 2" (50.80 mm)
Length: 2" (50.80 mm)
Weight (Approximate): 7.26 kg
Miscellaneous
Energy Star: No
Environmentally Friendly: Yes
Country of Origin: United States
TAA Compliant: Yes
Warranty
Limited Warranty: 5 Year
[/custom-specifications]
