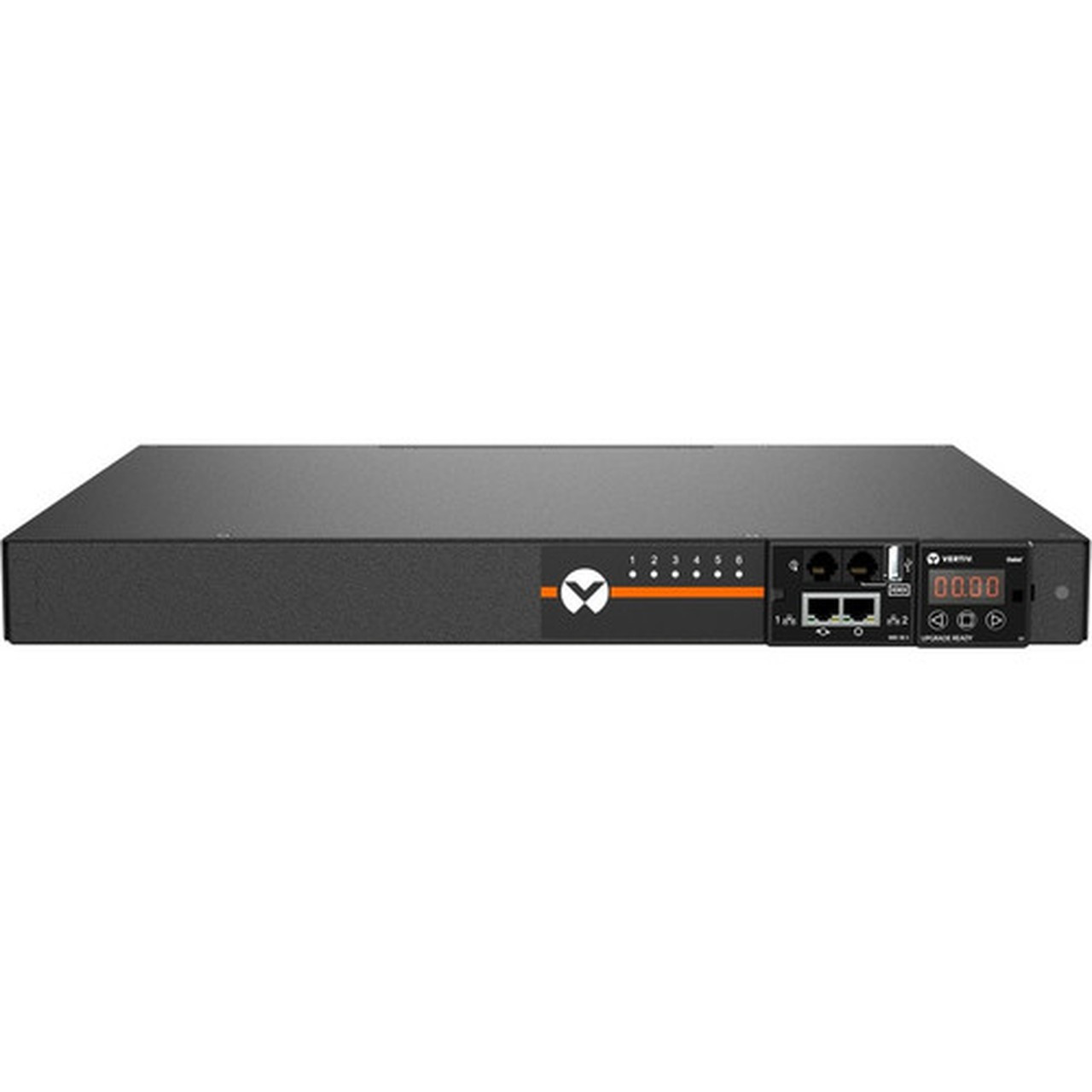

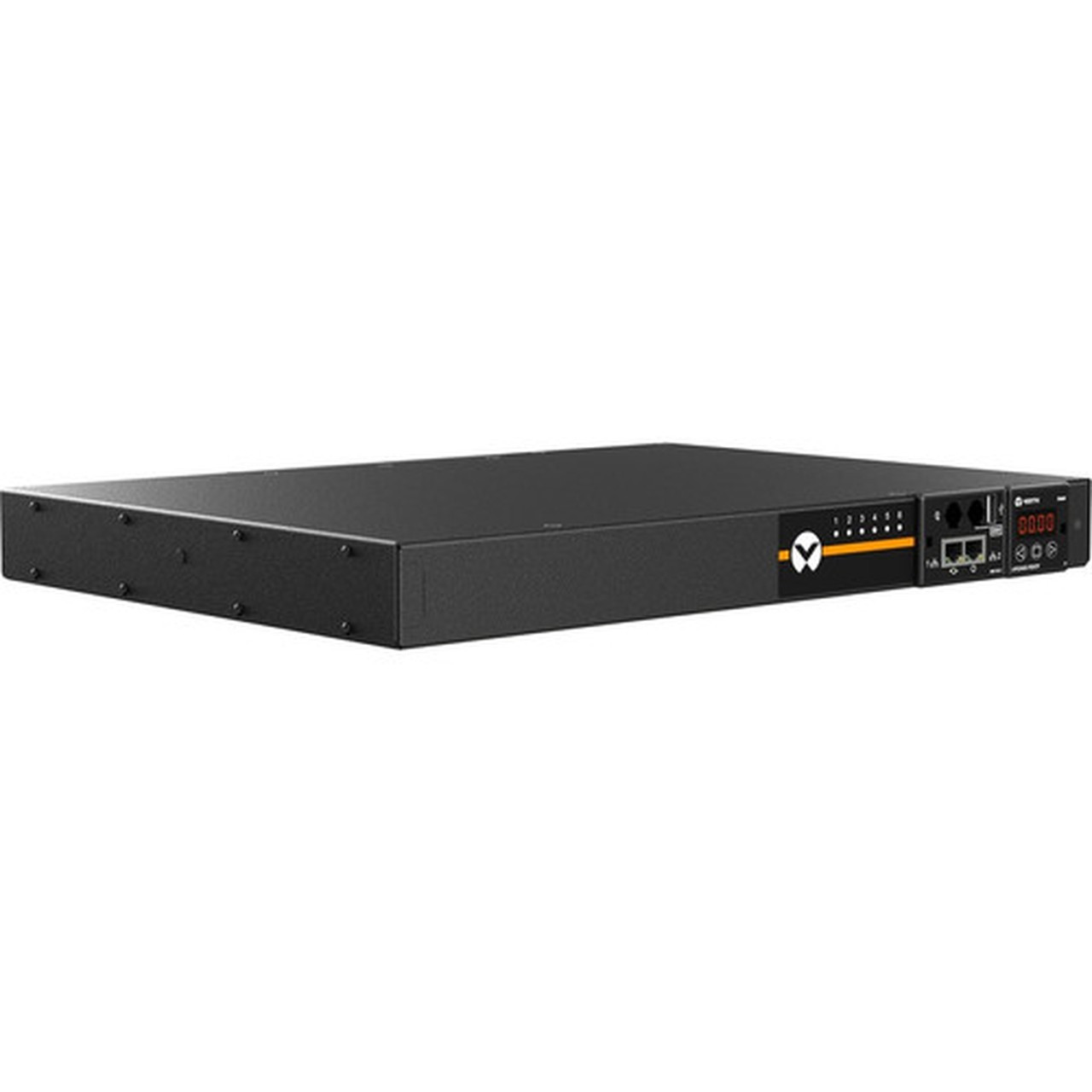

Vertiv Vertiv Geist Switched Rack PDU - 1U Rack| 15A| NEMA 5-15R| 5-15P| Horizontal PDU - Vertiv Geist Upgradeable Rack Power Unit| 1U (VP51100)
- With PDUs decisions for load balancing and minimizing extra cost can be managed
- With a built-in digital current meter avoid potential overloads via switched PDUs
- Marketing Information:
- Accidental Power Shutdown
- Overload Protection
- Cabinet-mountable
- Rack-mountable
- rPDU VP51100 6-Outlets PDU
- Mounting Brackets
Switched Unit Level Monitored Rack PDU VP51100 is a 15A, 120V 1U horizontal with input power monitoring and outlet level switching. It has 6 NEMA 5-15R receptacles and a NEMA 5-15P providing 1.4kW of power capacity. A Switched rPDU allows you to turn off outlets to avoid accidental overloads and remotely power cycle equipment to reboot unresponsive equipment. The unit is equipped with an environmental sensor port and dual ethernet ports.
PDU Type: SwitchedPhase: Single PhasePlug/Connector Type: NEMA 5-15PPlug/Connector Detail: 1 x NEMA 5-15PReceptacle Type: NEMA 5-15RReceptacle Detail: 6 x NEMA 5-15RProtection Type:[custom-specifications]
Manufacturer: Vertiv
Manufacturer Part Number: VP51100
Manufacturer Website Address: http://www.vertiv.com/
Brand Name: Geist
Product Series: rPDU
Product Model: VP51100
Product Name: rPDU VP51100 6-Outlets PDU
Product Type: PDU
Technical Information
PDU Type: Switched
Phase: Single Phase
Plug/Connector Type: NEMA 5-15P
Plug/Connector Detail: 1 x NEMA 5-15P
Receptacle Type: NEMA 5-15R
Receptacle Detail: 6 x NEMA 5-15R
Protection Type:
- Accidental Power Shutdown
- Overload Protection
Power Description
Input Voltage: 120 V AC
Input Voltage Range: 100 V AC - 120 V AC
Output Voltage: 120 V AC
Power Rating (Watt): 1.40 kW
Input Current: 15 A
Interfaces/Ports
Network (RJ-45): Yes
Physical Characteristics
Mounting Orientation: Horizontal
Mount Type:
- Cabinet-mountable
- Rack-mountable
Form Factor: Hot-swappable
Rack Height: 1U
Height: 1.72" (43.69 mm)
Width: 17" (431.80 mm)
Depth: 12" (304.80 mm)
Weight (Approximate): 4.54 kg
Miscellaneous
Package Contents:
- rPDU VP51100 6-Outlets PDU
- Mounting Brackets
Country of Origin: United States
TAA Compliant: Yes
Environmentally Friendly: Yes
Warranty
Limited Warranty: 3 Year
