- Network camera - Helps achieve high-quality video results
- Up to 2560 x 1920 video resolution
- CMOS sensor is cheaper as compare to CCD and consumes less power while producing better HD videos
- Up to 98.43 ft (30 m) of night vision
Marketing Information: VIVOTEK's FD9189-v2 series is a H.265 indoor dome network camera equipped with a 5-Megapixel sensor, enabling resolution of 2560x1920 at 30 fps. Featuring VIVOTEK SNV and WDR Pro technology, the FD9189-v2 series is capable of capturing high-quality imagery in both high-contrast and low-light environments.
The FD9189-v2 series offers two lens options for different user scenarios: fixed-focal and remote focus lenses. The camera is equipped with IR illuminators with a 30-meter effective range for better night visibility.
The FD9189-v2 series comes with VIVOTEK's Smart Stream III technology and H.265 codec support. It is capable of reducing bandwidth consumption to 90% while maintaining supreme image quality. Additionally, VIVOTEK's VADP (VIVOTEK Application Development Platform) allows users to customize applications for the ever-expanding number of user scenarios in the diversified surveillance market.
HD Recording: YesNight Vision: YesNight Vision Distance: 98.43 ft (30 m)Night Vision Type: InfraredNumber of IR LEDs: 4Image Sensor Type: CMOSColor Supported: ColorField of View: 95° ~ 41° (Horizontal), 69° ~ 31° (Vertical), 127° ~ 51° (Diagonal)Effective Camera Resolution: 5 MegapixelVideo Formats: Maximum Video Resolution: 2560 x 1920Maximum Frame Rate: 60 fpsLens Type: VarifocalMinimum Focal Length: 2.8 mmMaximum Focal Length: 10 mmLens Included: YesMinimum Aperture: f/1.8Maximum Aperture: f/2.74Optical Zoom: 3.6xShortest Shutter Speed: 1/32000 SecondLongest Shutter Speed: 1/5 SecondConnectivity Technology: WiredRemote Management: YesStorage Type: Memory CardNetwork (RJ-45): YesForm Factor: DomeDiameter: 5.12" (130 mm)Weight (Approximate): 355 gMinimum Operating Temperature: 14°F (-10°C)Maximum Operating Temperature: 122°F (50°C)Operating Humidity: 90%Features: - Wide Dynamic Range
- Built-in Infrared Illuminator
- Day/Night
- White Balance
- Defog
- 3D Noise Reduction
- Electronic Image Stabilization
- Back Light Compensation (BLC)
- Highlight Compensation (HLC)
- Gain Control
- Privacy Masking
- Audio Compression
- Built-in Microphone
- Password Protection
- Cross Line Detection
- Face Detection
- Motion Detection
- Audio Detection
- SD Card Local Storage
- Shock Detection
Indoor/Outdoor: IndoorPackage Contents: - FD9189-HT-v2 Network Camera
- Quick Installation Guide
- Alignment Sticker
- Screw Pack
TAA Compliant: YesLimited Warranty: 36 Month
[custom-specifications]
SpecificationsManufacturer: Vivotek, Inc
Manufacturer Part Number: FD9189-HT-V2
Manufacturer Website Address: http://www.vivotek.com
Brand Name: Vivotek
Product Series: FD9189-v2
Product Model: FD9189-HT-v2

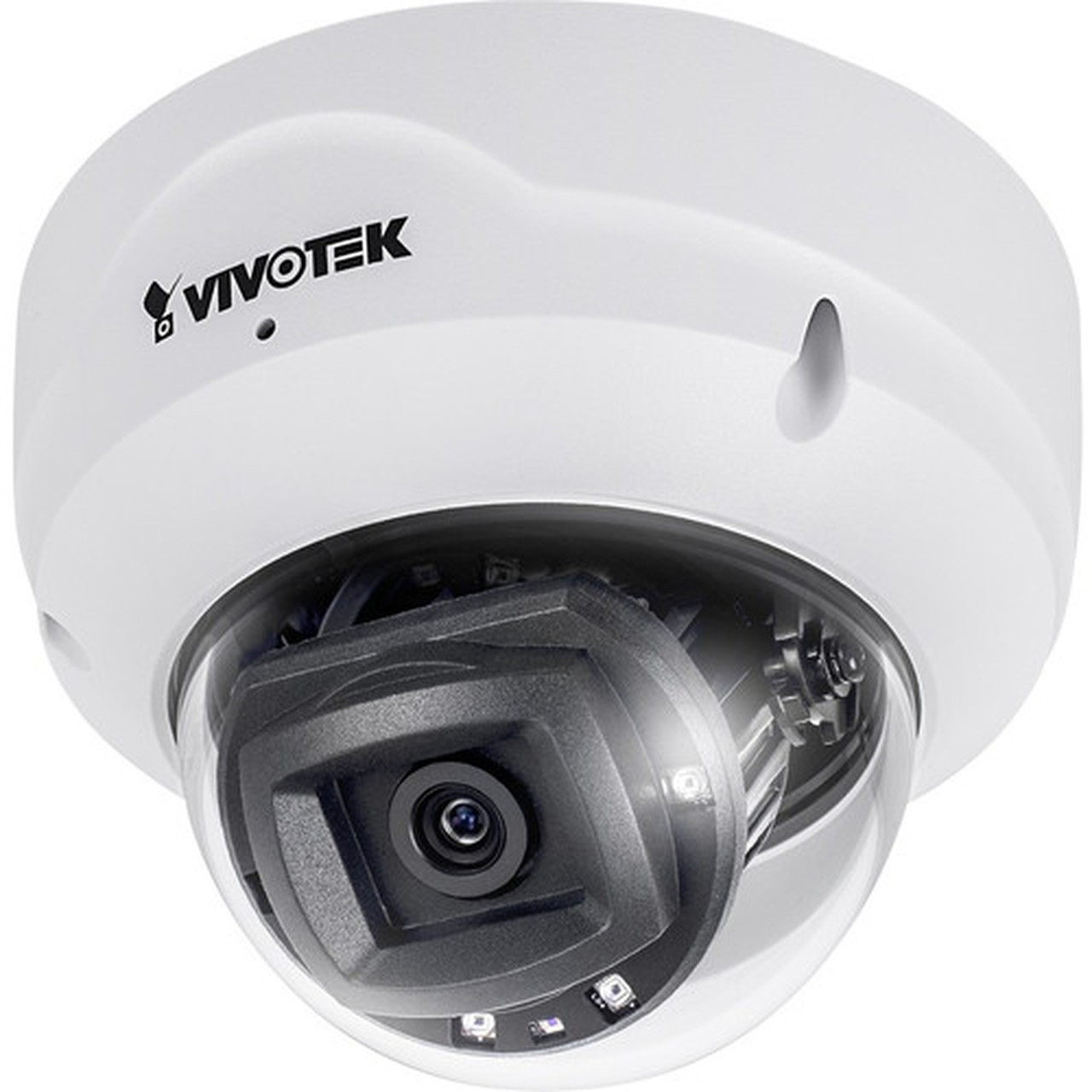

Product Name: FD9189-HT-v2 Network Camera
Product Type: Network Camera
Technical InformationHD Recording: Yes
Night Vision: Yes
Night Vision Distance: 98.43 ft (30 m)
Night Vision Type: Infrared
Number of IR LEDs: 4
Display & GraphicsImage Sensor Type: CMOS
Color Supported: Color
Field of View: 95° ~ 41° (Horizontal), 69° ~ 31° (Vertical), 127° ~ 51° (Diagonal)
Effective Camera Resolution: 5 Megapixel
VideoVideo Formats:
Maximum Video Resolution: 2560 x 1920
Maximum Frame Rate: 60 fps
LensLens Type: Varifocal
Minimum Focal Length: 2.8 mm
Maximum Focal Length: 10 mm
Lens Included: Yes
Minimum Aperture: f/1.8
Maximum Aperture: f/2.74
Optical Zoom: 3.6x
ExposureShortest Shutter Speed: 1/32000 Second
Longest Shutter Speed: 1/5 Second
Network & CommunicationConnectivity Technology: Wired
Remote Management: Yes
StorageStorage Type: Memory Card
Interfaces/PortsNetwork (RJ-45): Yes
Physical CharacteristicsForm Factor: Dome
Diameter: 5.12" (130 mm)
Weight (Approximate): 355 g
Environmental ConditionsMinimum Operating Temperature: 14°F (-10°C)
Maximum Operating Temperature: 122°F (50°C)
Operating Humidity: 90%
MiscellaneousFeatures:
- Wide Dynamic Range
- Built-in Infrared Illuminator
- Day/Night
- White Balance
- Defog
- 3D Noise Reduction
- Electronic Image Stabilization
- Back Light Compensation (BLC)
- Highlight Compensation (HLC)
- Gain Control
- Privacy Masking
- Audio Compression
- Built-in Microphone
- Password Protection
- Cross Line Detection
- Face Detection
- Motion Detection
- Audio Detection
- SD Card Local Storage
- Shock Detection
Indoor/Outdoor: Indoor
Package Contents:
- FD9189-HT-v2 Network Camera
- Quick Installation Guide
- Alignment Sticker
- Screw Pack
TAA Compliant: Yes
WarrantyLimited Warranty: 36 Month
