- 5MP resolution @ 30FPS, 4MP @ CVI
- 0.08Lux@F1.6(Color), 0Lux(B/W : IR LED on)
- 3.6mm fixed focal lens FoV H: 94° / V: 54°
- Day & Night (ICR), DWDR
- IR distance 20m(65.6 ft)
- IP67, IK10
- 12v DC power
- Transmission distance Max.500m
- Easy installation (Plug & play), Coaxial control
- Multi-protocol compatible with AHD, TVI, CVI, CVBS
HD Recording: YesNight Vision: YesNight Vision Distance: 65.62 ft (20 m)Night Vision Type: InfraredImage Sensor Type: CMOSImage Sensor Size: 1/2.5"Color Supported: ColorField of View: H:83.9°, V:63.4°, D:104°Effective Camera Resolution: 5 MegapixelMaximum Video Resolution: 2592 x 1944Maximum Frame Rate: 30 fpsAnalog Video Signal Format: Lens Type: FixedMaximum Focal Length: 3.6 mmLens Included: YesMaximum Aperture: f/1.6Connectivity Technology: WiredRemote Management: YesProtocols: TCPMaximum Power Consumption: 5.40 WInput Voltage: 12 V DCPower Source Type: DCColor Family: WhiteProduct Color: WhiteMount Type: Backbox MountForm Factor: FlateyeDiameter: 4.72" (120 mm)Weight (Approximate): 410 gMinimum Operating Temperature: -22°F (-30°C)Maximum Operating Temperature: 131°F (55°C)Operating Humidity: 90%Features: - Day/Night
- Built-in IR LED
- Ingress Protection
- White Balance
- Wide Dynamic Range
- Back Light Compensation (BLC)
- Gain Control
- Digital Noise Reduction
- 2D Noise Reduction
- 3D Digital Noise Reduction
- Mirror
Impact Protection Rating: IK10Ingress Protection Rating: IP67Country of Origin: KoreaLimited Warranty: 5 Year
[custom-specifications]
SpecificationsManufacturer: Hanwha Group
Manufacturer Part Number: ACE8020R
Manufacturer Website Address: http://www.hanwha.com
Brand Name: Wisenet
Product Series: A
Product Model: ACE-8020R

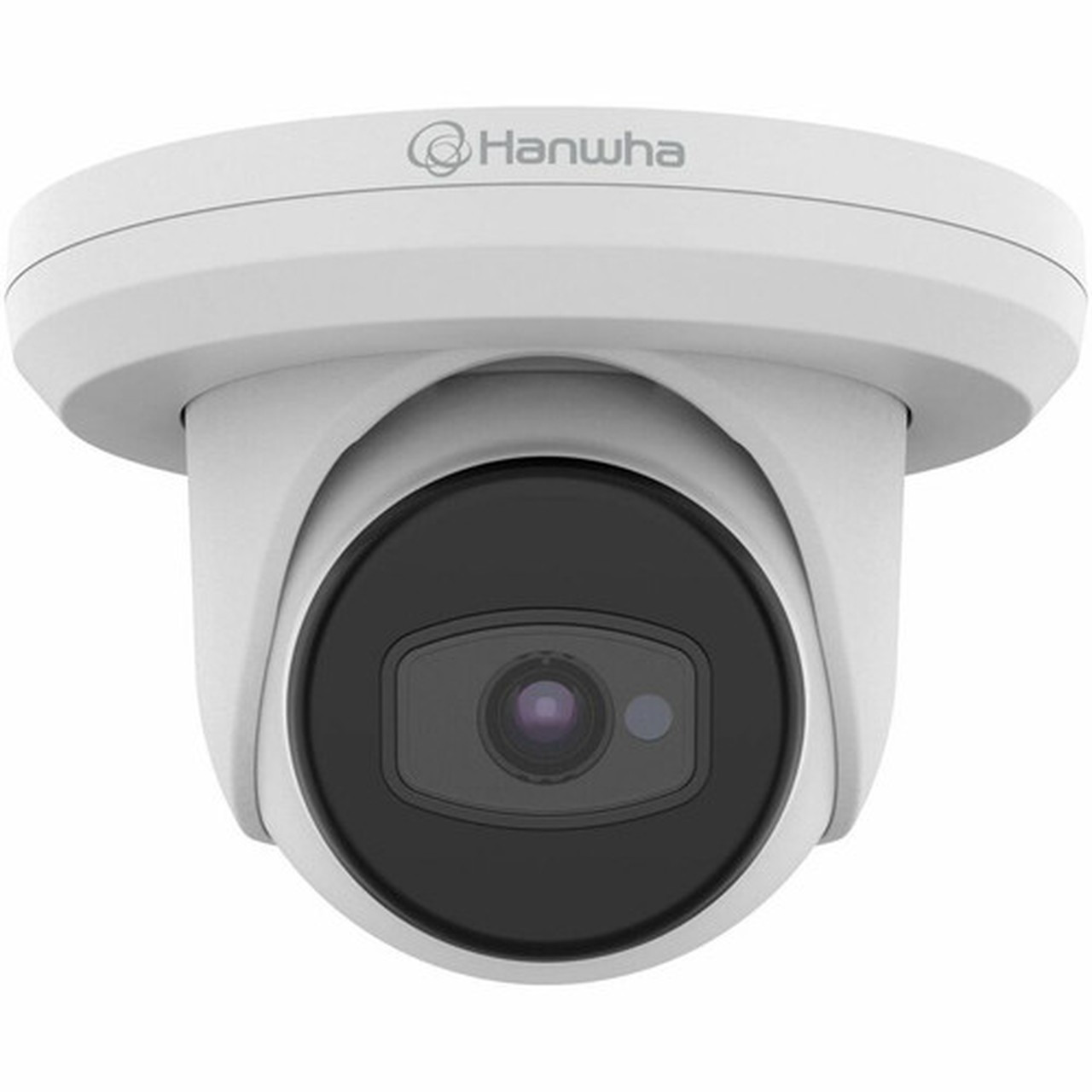

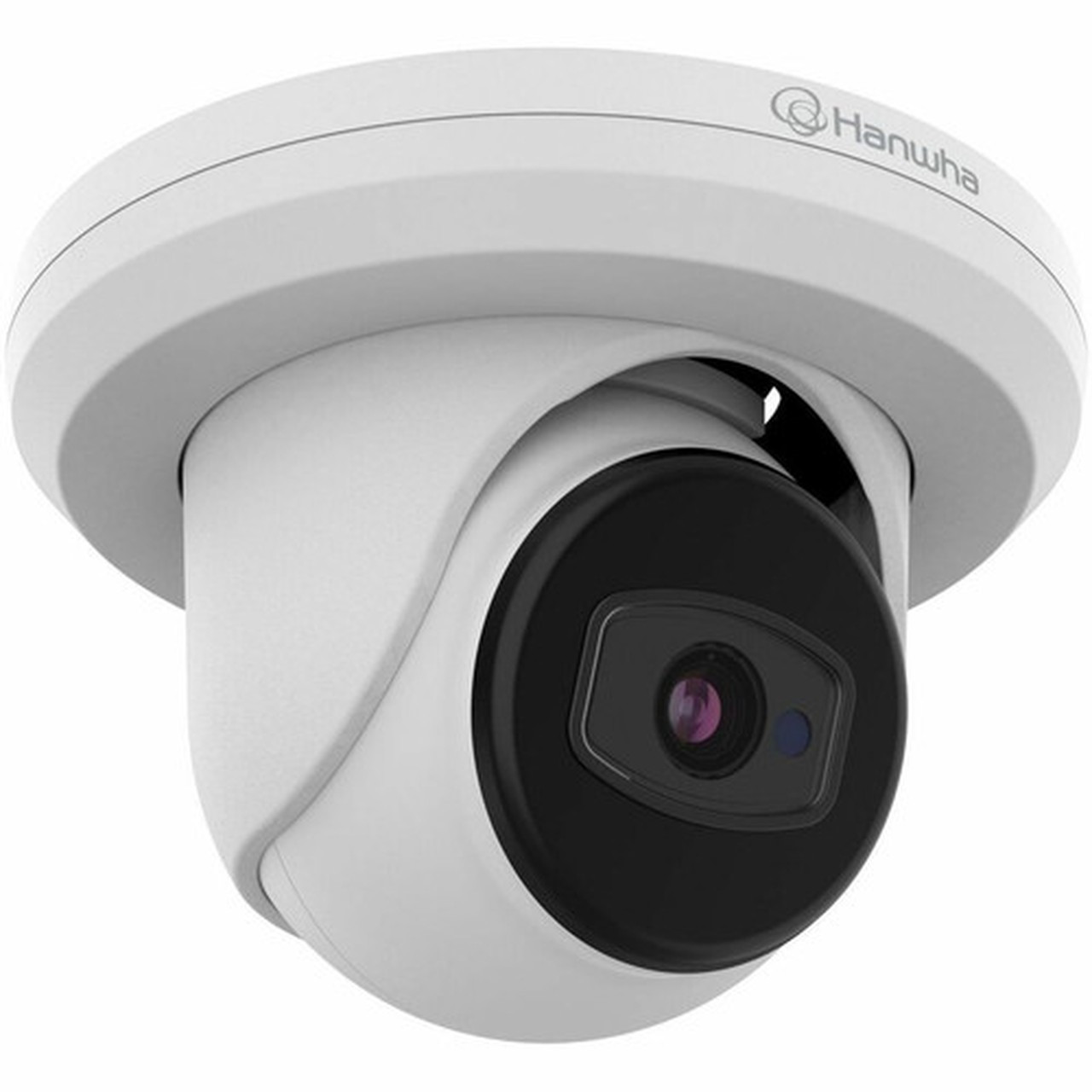

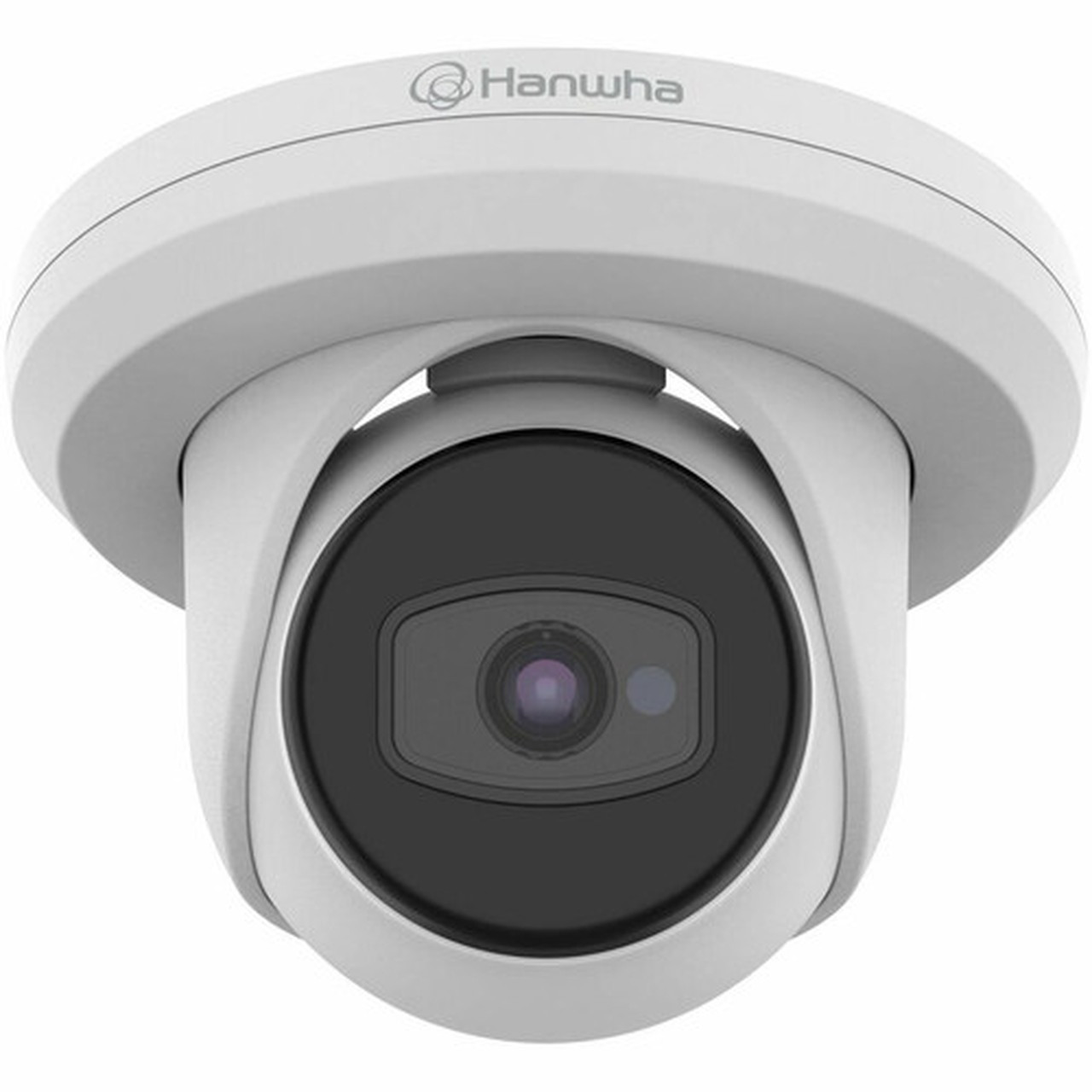

Product Name: ACE-8020R 5MP Analog HD Flateye Camera
Product Type: Network Camera
Technical InformationHD Recording: Yes
Night Vision: Yes
Night Vision Distance: 65.62 ft (20 m)
Night Vision Type: Infrared
Display & GraphicsImage Sensor Type: CMOS
Image Sensor Size: 1/2.5"
Color Supported: Color
Field of View: H:83.9°, V:63.4°, D:104°
Effective Camera Resolution: 5 Megapixel
VideoMaximum Video Resolution: 2592 x 1944
Maximum Frame Rate: 30 fps
Analog Video Signal Format:
LensLens Type: Fixed
Maximum Focal Length: 3.6 mm
Lens Included: Yes
Maximum Aperture: f/1.6
Network & CommunicationConnectivity Technology: Wired
Remote Management: Yes
Protocols: TCP
Power DescriptionMaximum Power Consumption: 5.40 W
Input Voltage: 12 V DC
Power Source Type: DC
Physical CharacteristicsColor Family: White
Product Color: White
Mount Type: Backbox Mount
Form Factor: Flateye
Diameter: 4.72" (120 mm)
Weight (Approximate): 410 g
Environmental ConditionsMinimum Operating Temperature: -22°F (-30°C)
Maximum Operating Temperature: 131°F (55°C)
Operating Humidity: 90%
MiscellaneousFeatures:
- Day/Night
- Built-in IR LED
- Ingress Protection
- White Balance
- Wide Dynamic Range
- Back Light Compensation (BLC)
- Gain Control
- Digital Noise Reduction
- 2D Noise Reduction
- 3D Digital Noise Reduction
- Mirror
Impact Protection Rating: IK10
Ingress Protection Rating: IP67
Country of Origin: Korea
WarrantyLimited Warranty: 5 Year
