- For remote surveillance needs, this network camera is best suited
- Up to 2560 x 1440 video resolution
- CMOS sensor is cheaper as compare to CCD and consumes less power while producing better HD videos
- Provides night vision of objects at a distance of up to 82.02 ft (25 m)
HD Recording: YesNight Vision: YesNight Vision Distance: 82.02 ft (25 m)Night Vision Type: InfraredImage Sensor Type: CMOSColor Supported: ColorField of View: H : 78.2, V : 41.2, D : 92.0Effective Camera Resolution: 4 MegapixelVideo Formats: - H.265
- H.264
- Motion JPEG
- H.265M
- H.265H
- H.264H
- H.264M
Maximum Video Resolution: 2560 x 1440Maximum Frame Rate: 30 fpsAnalog Video Signal Format: CVBSLens Type: FixedMaximum Focal Length: 4 mmLens Included: YesMaximum Aperture: f/1.6Shortest Shutter Speed: 1/12000 SecondLongest Shutter Speed: 1/5 SecondConnectivity Technology: WiredRemote Management: YesStorage Type: Memory CardNetwork (RJ-45): YesProduct Color: WhiteForm Factor: DomeDiameter: 4.74" (120.30 mm)Weight (Approximate): 510 gMinimum Operating Temperature: -40°F (-40°C)Maximum Operating Temperature: 131°F (55°C)Operating Humidity: 95%Features: - Motion Detection
- Tamper Detection
- SD Card Local Storage
- Day/Night
- Back Light Compensation (BLC)
- Wide Dynamic Range
- Digital Noise Reduction
- Privacy Masking
- Gain Control
- Automatic White Balance
Impact Protection Rating: IK10Ingress Protection Rating: IP66
[custom-specifications]
SpecificationsManufacturer: Hanwha Group
Manufacturer Part Number: QNV7022R
Manufacturer Website Address: http://www.hanwha.com
Brand Name: Wisenet
Product Series: Q
Product Model: QNV-7022R

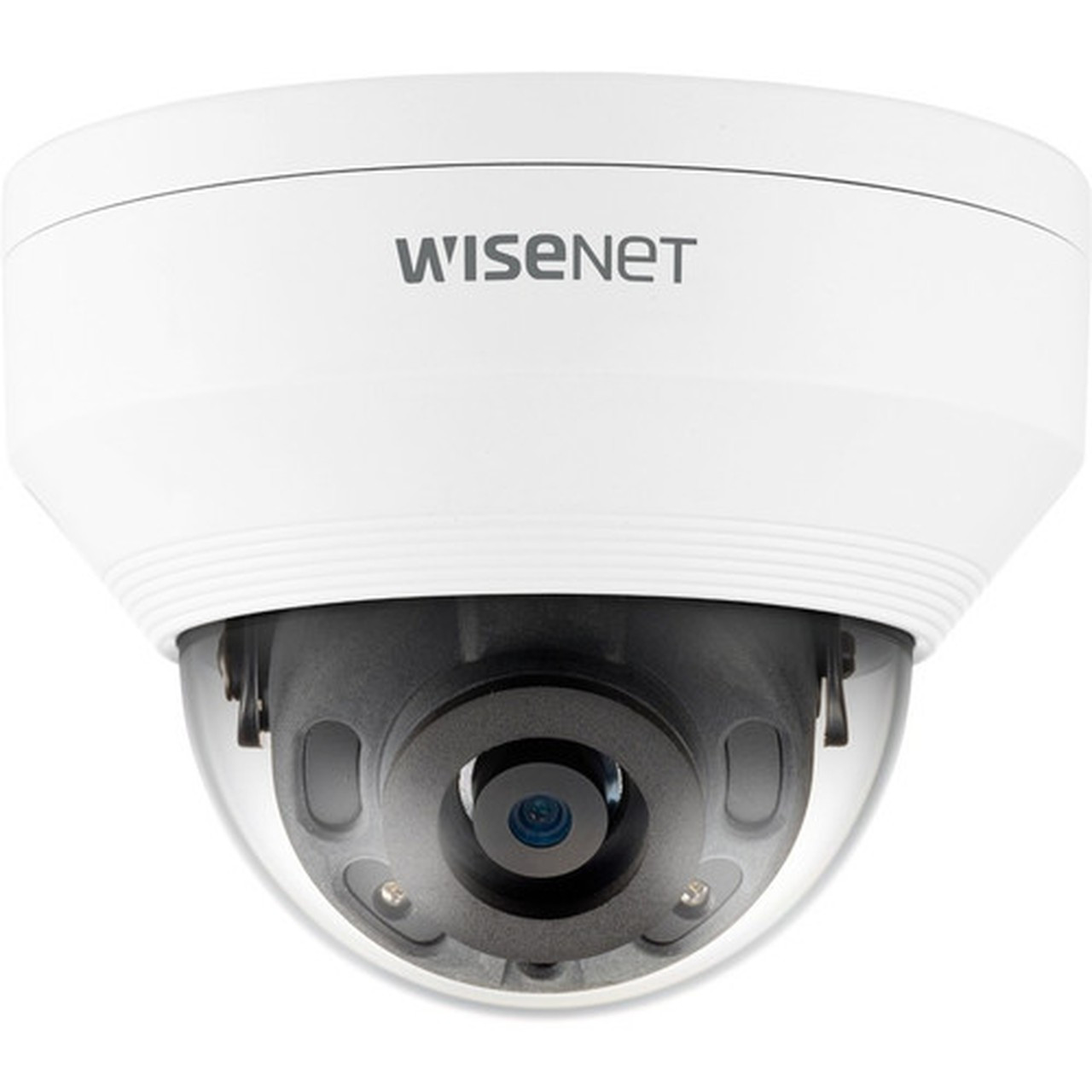

Product Name: 4MP IR Vandal Dome Camera
Product Type: Network Camera
Technical InformationHD Recording: Yes
Night Vision: Yes
Night Vision Distance: 82.02 ft (25 m)
Night Vision Type: Infrared
Display & GraphicsImage Sensor Type: CMOS
Color Supported: Color
Field of View: H : 78.2, V : 41.2, D : 92.0
Effective Camera Resolution: 4 Megapixel
VideoVideo Formats:
- H.265
- H.264
- Motion JPEG
- H.265M
- H.265H
- H.264H
- H.264M
Maximum Video Resolution: 2560 x 1440
Maximum Frame Rate: 30 fps
Analog Video Signal Format: CVBS
LensLens Type: Fixed
Maximum Focal Length: 4 mm
Lens Included: Yes
Maximum Aperture: f/1.6
ExposureShortest Shutter Speed: 1/12000 Second
Longest Shutter Speed: 1/5 Second
Network & CommunicationConnectivity Technology: Wired
Remote Management: Yes
StorageStorage Type: Memory Card
Interfaces/PortsNetwork (RJ-45): Yes
Physical CharacteristicsProduct Color: White
Form Factor: Dome
Diameter: 4.74" (120.30 mm)
Weight (Approximate): 510 g
Environmental ConditionsMinimum Operating Temperature: -40°F (-40°C)
Maximum Operating Temperature: 131°F (55°C)
Operating Humidity: 95%
MiscellaneousFeatures:
- Motion Detection
- Tamper Detection
- SD Card Local Storage
- Day/Night
- Back Light Compensation (BLC)
- Wide Dynamic Range
- Digital Noise Reduction
- Privacy Masking
- Gain Control
- Automatic White Balance
Impact Protection Rating: IK10
Ingress Protection Rating: IP66
