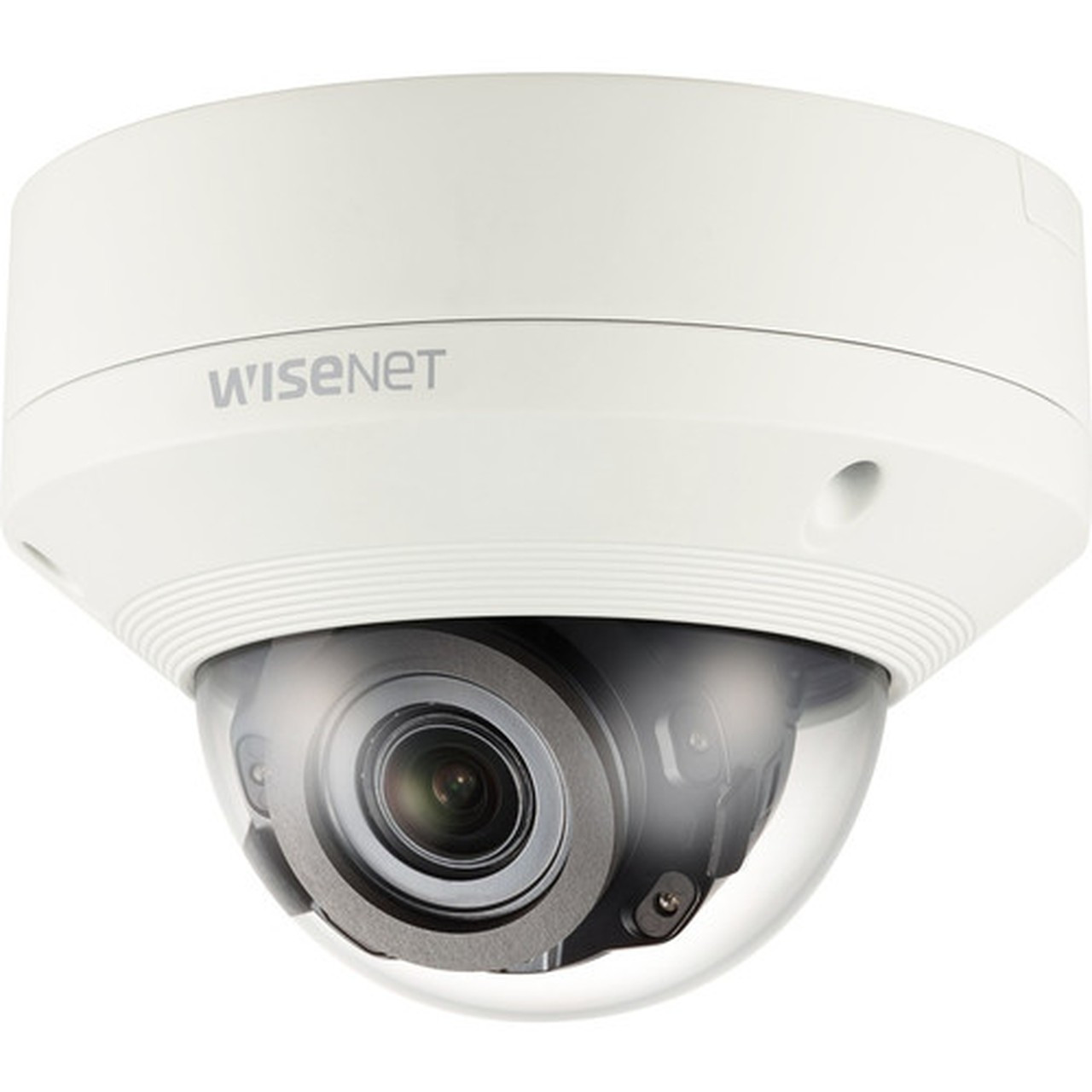

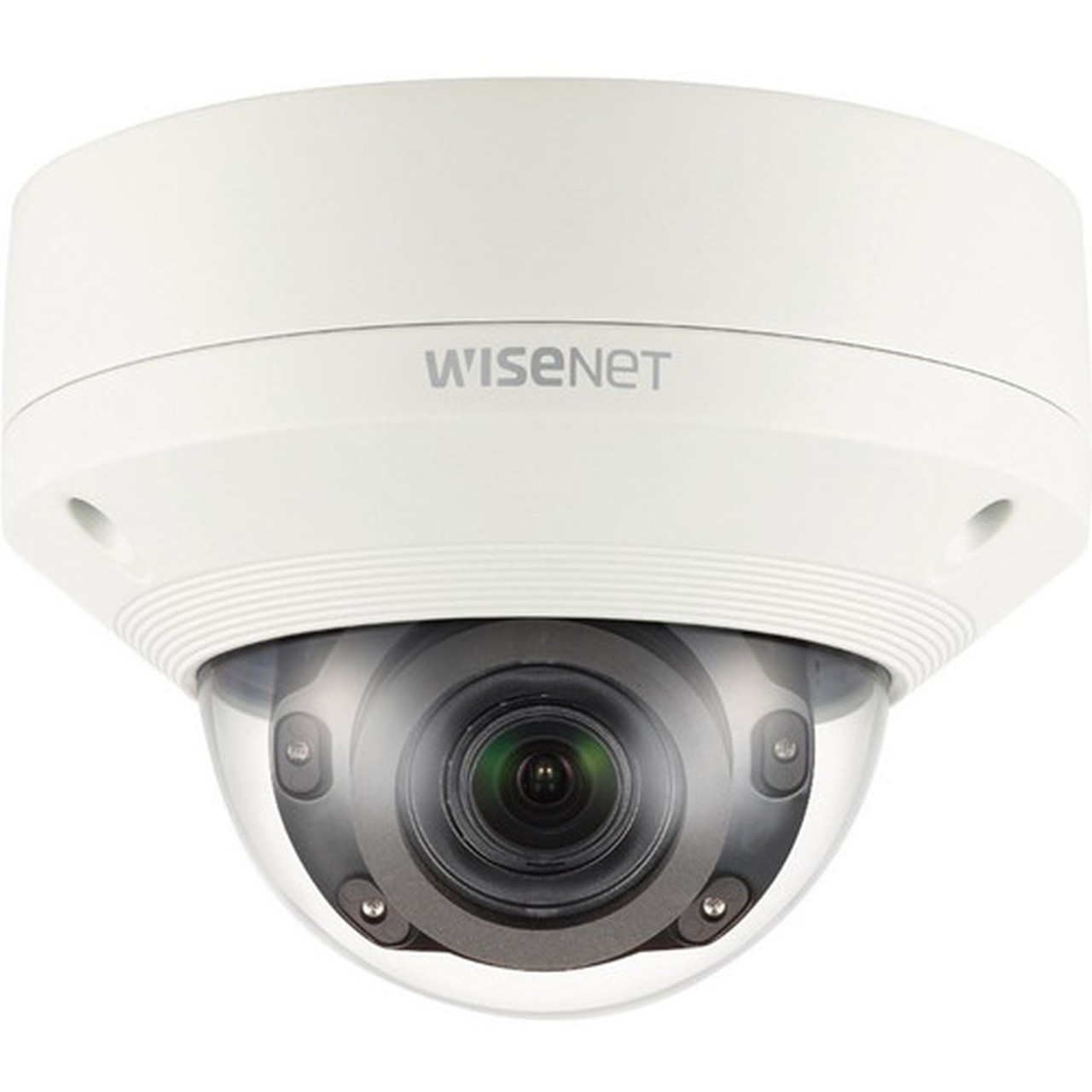

Wisenet XNV-8080R 5 Megapixel Outdoor Network Camera - Color - Dome - 164.04 ft (50 m) Infrared Night Vision - MPEG-4 AVC, MJPEG, - x (XNV-8080R)
Marketing Information:
Wisenet X powered by Wisenet 5 network IR outdoor vandal dome camera, 5MP @30fps WDR off/on, Motorized Vari-Focal Lens 2.4x (3.9~9.4mm) (92.1°~38.7°), H.265/H.264/MJPEG, WiseStream II compression technology, 120dB WDR, USB port for easy installation, Advanced video analytics and sound classification, High powered IR LEDs range of 164', True D/N, Dual SD card, Hallway view, HLC, Defog detection with simple focus, DIS , 12VDC/24VAC/PoE, IP67, IK10, NEMA 4X, Built-in -40°F Heater
HD Recording: Yes
Night Vision: Yes
Night Vision Distance: 164.04 ft (50 m)
Night Vision Type: Infrared
Image Sensor Type: CMOS
Color Supported: Color
Field of View: H : 92.1° ~ 38.7°/ V : 67.2° ~ 29.0°/ D : 119.9° ~ 48.6°
Effective Camera Resolution: 5 Megapixel
Video Formats: MPEG-4 AVC,MJPEG,H.264,H.265
Maximum Video Resolution: 2560 x 1920
Maximum Frame Rate: 30 fps
Lens Type: Varifocal
Minimum Focal Length: 3.9 mm
Maximum Focal Length: 9.4 mm
Lens Included: Yes
Lens Mount Type: Board Mount
Maximum Aperture: f/1.3
Optical Zoom: 2.4x
Shortest Shutter Speed: 1/12000 Second
Longest Shutter Speed: 2 Second
Connectivity Technology: Wired
Remote Management: Yes
Storage Type: Memory Card
Network (RJ-45): Yes
Input Voltage: 12 V DC,24 V AC
Power Source Type: DC,AC,PoE
Color Family: White
Product Color: Ivory
Mount Type: Flush Mount,Ceiling Mount,Wall Mount,Parapet Mount,Pole Mount,Corner Mount
Form Factor: Dome
Height: 4.67" (118.50 mm)
Width: 6.30" (160 mm)
Diameter: 6.30" (160 mm)
Weight (Approximate): 1.01 kg
Minimum Operating Temperature: -40°F (-40°C)
Maximum Operating Temperature: 131°F (55°C)
Maximum Operating Humidity: 90%
Features: SD Card Local Storage,Day/Night,Wide Dynamic Range,Back Light Compensation (BLC),Defog,Gain Control,White Balance,Privacy Masking,Motion Detection,Digital Noise Reduction
Indoor/Outdoor: Outdoor
Ingress Protection Rating: IP67,IP66
Limited Warranty: 3 Year
- Up to 2560 x 1920 resolution for surveillance in real-time
- CMOS sensor is cheaper as compare to CCD and consumes less power while producing better HD videos
- Up to 164.04 ft (50 m) of night vision
[custom-specifications]
| Specifications | |
| Manufacturer | Hanwha Group |
| Manufacturer Part Number | XNV-8080R |
| Manufacturer Website Address | http://www.hanwha.com |
| Brand Name | Wisenet |
| Product Series | X |
| Product Model | XNV-8080R |
| Product Name | 5MP Vandal IR Dome Camera |
| Product Type | Network Camera |
| Technical Information | |
| HD Recording | Yes |
| Night Vision | Yes |
| Night Vision Distance | 164.04 ft (50 m) |
| Night Vision Type | Infrared |
| Display & Graphics | |
| Image Sensor Type | CMOS |
| Color Supported | Color |
| Field of View | H : 92.1° ~ 38.7°/ V : 67.2° ~ 29.0°/ D : 119.9° ~ 48.6° |
| Effective Camera Resolution | 5 Megapixel |
| Video | |
| Video Formats | MPEG-4 AVC,MJPEG,H.264,H.265 |
| Maximum Video Resolution | 2560 x 1920 |
| Maximum Frame Rate | 30 fps |
| Lens | |
| Lens Type | Varifocal |
| Minimum Focal Length | 3.9 mm |
| Maximum Focal Length | 9.4 mm |
| Lens Included | Yes |
| Lens Mount Type | Board Mount |
| Maximum Aperture | f/1.3 |
| Optical Zoom | 2.4x |
| Exposure | |
| Shortest Shutter Speed | 1/12000 Second |
| Longest Shutter Speed | 2 Second |
| Network & Communication | |
| Connectivity Technology | Wired |
| Remote Management | Yes |
| Storage | |
| Storage Type | Memory Card |
| Interfaces/Ports | |
| Network (RJ-45) | Yes |
| Power Description | |
| Input Voltage | 12 V DC,24 V AC |
| Power Source Type | DC,AC,PoE |
| Physical Characteristics | |
| Color Family | White |
| Product Color | Ivory |
| Mount Type | Flush Mount,Ceiling Mount,Wall Mount,Parapet Mount,Pole Mount,Corner Mount |
| Form Factor | Dome |
| Height | 4.67" (118.50 mm) |
| Width | 6.30" (160 mm) |
| Diameter | 6.30" (160 mm) |
| Weight (Approximate) | 1.01 kg |
| Environmental Conditions | |
| Minimum Operating Temperature | -40°F (-40°C) |
| Maximum Operating Temperature | 131°F (55°C) |
| Maximum Operating Humidity | 90% |
| Miscellaneous | |
| Features | SD Card Local Storage,Day/Night,Wide Dynamic Range,Back Light Compensation (BLC),Defog,Gain Control,White Balance,Privacy Masking,Motion Detection,Digital Noise Reduction |
| Indoor/Outdoor | Outdoor |
| Ingress Protection Rating | IP67,IP66 |
| Warranty | |
| Limited Warranty | 3 Year |
[/custom-specifications]
[custom-options]
| Product | Hanwha Techwin SBP-300CM Mounting Pipe for Surveillance Camera - Ivory - Aluminum |
| SKU | SBP-300CM |
| Sale Price | $75.48 |
| Product | Hanwha Techwin SBP-300WM1 Wall Mount for PTZ Camera, Hanging Mount, Camera Housing - Ivory - Aluminum, SECC |
| SKU | SBP-300WM1 |
| Sale Price | $75.48 |
| Product | Hanwha Techwin SBP-300HM6 Mounting Adapter for Network Camera - Ivory - 1 - Aluminum |
| SKU | SBP-300HM6 |
| Sale Price | $46.84 |
| Product | Hanwha SBV-158G Mounting Box for Network Camera - Aluminum |
| SKU | SBV-158G |
| Sale Price | $81.22 |
| Product | Hanwha Techwin SBP-300B Mounting Base for Wall Mount - Ivory - Aluminum, SECC |
| SKU | SBP-300B |
| Sale Price | $85.04 |
[/custom-options]
[custom-user-manual]
Available Documentation:
User-Manual
Manufacturer-Brochure
[/custom-user-manual]
Warranty Infomartion
3 Year
