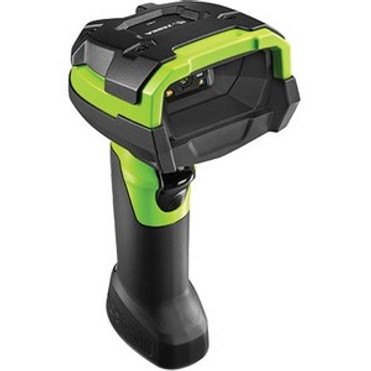

Zebra DS3678-SR Handheld Barcode Scanner - Wireless Bluetooth - 8.60" (218.44 mm) Scan - 1D/2D (DS3678-SR0F003VZWW)
Write a Review
Zebra
Zebra DS3678-SR Handheld Barcode Scanner - Wireless Bluetooth - 8.60" (218.44 mm) Scan - 1D/2D (DS3678-SR0F003VZWW)
-
Business Pricing
Volume deals available
-
IT Experts
Consulting & support
-
Config Service
From PC to server ready
-
Canada Delivery
UPS, FedEx, Purolator
- Whether you are a lefty or a righty, the symmetrically shaped mouse suits both
- USB Type A connectivity for a easy connection
- Optical LED for smoother movement and hassle-free performance
- Code 39
- Code 128
- Code 93
- Codabar/NW7
- Code 11
- MSI Plessey
- UPC/EAN, I 2 of 5
- Korean 3 of 5
- GS1 DataBar
- Base 32 (Italian Pharma)
- PDF417
- Micro PDF417
- Composite Codes
- TLC-39
- Aztec
- DataMatrix
- MaxiCode
- QR Code
- Micro QR
- Chinese Sensible (Han Xin)
- Postal Codes
- DotCode
- Digital watermark technology
- Supports IUID parsing, the ability to read and separate IUID fields per application requirement
Connectivity Technology: Wireless
Scanning Capability: 1D,2D
Barcode Symbology Supported:
1D:
2D:
Digimarc:
IUID Support:
Image Sensor Type: Imager
Scan Pattern: Omni-directional
Scanner Range: Standard Range
Scanning Distance: 8.60" (218.44 mm)
Field of View (Horizontal): 42°
Field of View (Vertical): 28°
Reading Angle (Skew): 60°
Reading Angle (Pitch): 60°
Reading Angle (Roll): 360°
Drop Specification: Withstands multiple 8.0 ft. / 2.4 m drops to concrete
Minimum Print Contrast: 15%
Minimum Element Resolution (DataMatrix): 10 mil (0.25 mm)
Maximum Element Resolution (DataMatrix): 0.20" (5.08 mm)
Bluetooth: Yes
Form Factor: Handheld
Rugged: Yes
Product Color: Industrial Green
Height: 7.30" (185.42 mm)
Width: 3" (76.20 mm)
Depth: 5.60" (142.24 mm)
Weight (Approximate): 14.40 oz (408.23 g)
Ingress Protection (IP) Rating: IP67,IP65
Application/Usage: Industrial,Warehouse,Manufacturing
- Wireless connectivity gives you the adaptability to transmit barcode data to your smart devices
- With Bluetooth technology, you can scan barcodes and then transmit data from the base
[custom-specifications]
| Specifications | |
| Manufacturer | Zebra Technologies Corporation |
| Manufacturer Part Number | DS3678-SR0F003VZWW |
| Manufacturer Website Address | http://www.zebra.com |
| Brand Name | Zebra |
| Product Series | 3600 |
| Product Model | DS3678-SR |
| Product Name | DS3678-SR Handheld Barcode Scanner |
| Product Type | Barcode Scanner |
| Technical Information | |
| Connectivity Technology | Wireless |
| Scanning Capability | 1D,2D |
| Barcode Symbology Supported | 1D:
2D:
Digimarc:
IUID Support:
|
| Image Sensor Type | Imager |
| Scan Pattern | Omni-directional |
| Scanner Range | Standard Range |
| Scanning Distance | 8.60" (218.44 mm) |
| Field of View (Horizontal) | 42° |
| Field of View (Vertical) | 28° |
| Reading Angle (Skew) | 60° |
| Reading Angle (Pitch) | 60° |
| Reading Angle (Roll) | 360° |
| Drop Specification | Withstands multiple 8.0 ft. / 2.4 m drops to concrete |
| Minimum Print Contrast | 15% |
| Minimum Element Resolution (DataMatrix) | 10 mil (0.25 mm) |
| Maximum Element Resolution (DataMatrix) | 0.20" (5.08 mm) |
| Network & Communication | |
| Bluetooth | Yes |
| Physical Characteristics | |
| Form Factor | Handheld |
| Rugged | Yes |
| Product Color | Industrial Green |
| Height | 7.30" (185.42 mm) |
| Width | 3" (76.20 mm) |
| Depth | 5.60" (142.24 mm) |
| Weight (Approximate) | 14.40 oz (408.23 g) |
| Miscellaneous | |
| Ingress Protection (IP) Rating | IP67,IP65 |
| Application/Usage | Industrial,Warehouse,Manufacturing |
[/custom-specifications]
[custom-user-manual]
Available Documentation:
Manufacturer-Brochure
[/custom-user-manual]
