Zebra SP7208 Series Single-Plane Scanner - 9 22860 mm Scan Distance - 1D 2D - LED - Imager - IBM 46XX Keyboard Wedge USB - - - SP7208-DV00004CCNA

Free Shipping*

Shipping Restrictions

Additional fees may apply for shipments to locations beyond normal service areas and heavy weight or oversize items.

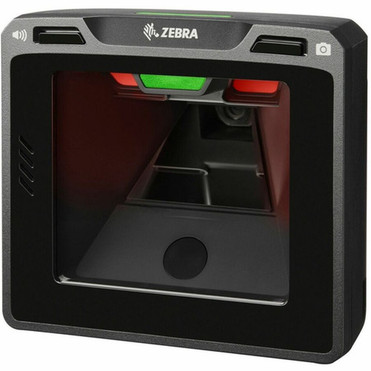

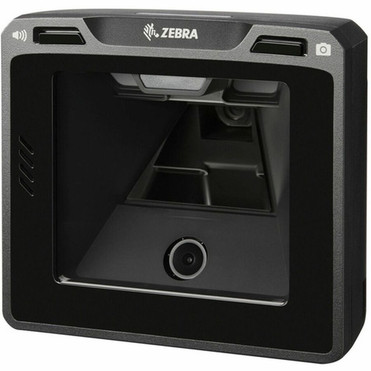

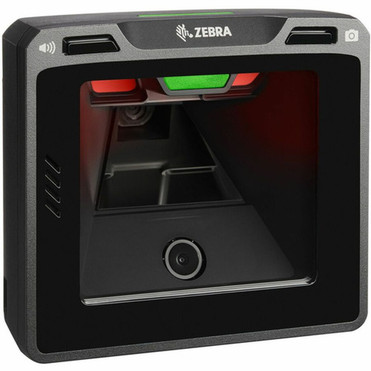

Zebra SP7208 Series Single-Plane Scanner - 9" Scan Distance - 1D, 2D LED Imager (SP7208-DV00004CCNA)

Name: Zebra SP7208 Series Single-Plane Scanner - 9" Scan Distance - 1D, 2D LED Imager (SP7208-DV00004CCNA)
Brand: Zebra
SKU: SP7208-DV00004CCNA
Price: 1220.95 CAD
Availability: OutOfStock

SKU: SP7208-DV00004CCNA

(No reviews) Write a Review

MSRP: $2,137.13

$2,140.11

$1,220.95

Save: $916.18 (42.81%)

Warranty Information: 3 Year

Weight: 1.33 LBS

Width: 15.24 (cm)

Height: 13.72 (cm)

Depth: 8.38 (cm)

Current Stock:

Ask for ETA! 🗨️

Business Pricing

Volume deals available
IT Experts

Consulting & support
Config Service

From PC to server
Canada Stocked

Toronto - Alberta - BC

Products Features

Whether you are a lefty or a righty, the symmetrically shaped mouse suits both
USB Type A connectivity for a easy connection
Optical LED for smoother movement and hassle-free performance

Description
Specifications
Options
User Manual
Highlights
Warranty Information:

Description

Scanning Capability: 1D,2D

Barcode Symbology Supported:

1D:

All major 1D barcodes including Code 39, Code 128, Code 93, Codabar/NW7, Code 11, MSI Plessey, UPC/ EAN, I 2 of 5, Korean 3 of 5, GS1 DataBar, Base 32 (Italian Pharma)

2D:

All major 2D barcodes including PDF417, Micro PDF417, Composite Codes, TLC-39, Aztec, DataMatrix, MaxiCode, QR Code, Micro QR, Han Xin, Postal Codes, SecurPharm

Digimarc:

Digimarc barcodes

Light Source: LED

Image Sensor Type: Imager

Scanner Range: Short Range

Scanning Distance: 9" (228.60 mm)

Field of View (Horizontal): 129°

Field of View (Vertical): 76°

Reading Angle (Skew): 70°

Reading Angle (Pitch): 80°

Reading Angle (Roll): 360°

Image Formats: BMP,JPEG,RAW

Maximum Ambient Light: 86100 lux

Minimum Print Contrast: 15%

Minimum Element Resolution (Code 39): 3 mil (0.08 mm)

Maximum Element Resolution (Code 39): 10 mil (0.25 mm)

Minimum Element Resolution (DataMatrix): 5 mil (0.13 mm)

Maximum Element Resolution (DataMatrix): 15 mil (0.38 mm)

Minimum Element Resolution (PDF417): 15 mil (0.38 mm)

Image Sensor Resolution: 1920 x 1200

Illumination Type: LED

Illumination Color: Red

Air Electrostatic Discharge (+/-): 15kV

Features: Sensormatic EAS,Checkpoint EAS,Beep,Data Formatter,Notification LED

Host Interface: IBM 46XX,Keyboard Wedge,USB,Serial,Multi-interface

Operating Temperature: 32°F (0°C) to 122°F (50°C)

Storage Temperature: -40°F (-40°C) to 158°F (70°C)

Humidity (Non-condensing): 20% to 95%

Form Factor: In-counter

Color Family: Black

Product Color: Midnight Black

Durability: Spill Resistant,Dust Resistant,Dust Proof

Height: 5.40" (137.16 mm)

Width: 6" (152.40 mm)

Depth: 3.30" (83.82 mm)

Weight (Approximate): 1.33 lb (602 g)

Ingress Protection (IP) Rating: IP52

Application/Usage: Retail,Pharmacy,Convenience Store,Self-checkout,Kiosk

Limited Warranty: 3 Year

[custom-highlights][/custom-highlights]

[custom-specifications]

Specifications
Manufacturer	Zebra Technologies Corporation
Manufacturer Part Number	SP7208DV00004CCNA
Manufacturer Website Address	http://www.zebra.com
Brand Name	Zebra
Product Series	SP72
Product Model	SP72-V
Product Name	SP7208 Series Single-Plane Scanner
Product Type	Barcode Scanner
Technical Information
Scanning Capability	1D,2D
Barcode Symbology Supported	1D: All major 1D barcodes including Code 39, Code 128, Code 93, Codabar/NW7, Code 11, MSI Plessey, UPC/ EAN, I 2 of 5, Korean 3 of 5, GS1 DataBar, Base 32 (Italian Pharma) 2D: All major 2D barcodes including PDF417, Micro PDF417, Composite Codes, TLC-39, Aztec, DataMatrix, MaxiCode, QR Code, Micro QR, Han Xin, Postal Codes, SecurPharm Digimarc: Digimarc barcodes
Light Source	LED
Image Sensor Type	Imager
Scanner Range	Short Range
Scanning Distance	9" (228.60 mm)
Field of View (Horizontal)	129°
Field of View (Vertical)	76°
Reading Angle (Skew)	70°
Reading Angle (Pitch)	80°
Reading Angle (Roll)	360°
Image Formats	BMP,JPEG,RAW
Maximum Ambient Light	86100 lux
Minimum Print Contrast	15%
Minimum Element Resolution (Code 39)	3 mil (0.08 mm)
Maximum Element Resolution (Code 39)	10 mil (0.25 mm)
Minimum Element Resolution (DataMatrix)	5 mil (0.13 mm)
Maximum Element Resolution (DataMatrix)	15 mil (0.38 mm)
Minimum Element Resolution (PDF417)	15 mil (0.38 mm)
Image Sensor Resolution	1920 x 1200
Illumination Type	LED
Illumination Color	Red
Air Electrostatic Discharge (+/-)	15kV
Features	Sensormatic EAS,Checkpoint EAS,Beep,Data Formatter,Notification LED
Interfaces/Ports
Host Interface	IBM 46XX,Keyboard Wedge,USB,Serial,Multi-interface
Environmental Conditions
Operating Temperature	32°F (0°C) to 122°F (50°C)
Storage Temperature	-40°F (-40°C) to 158°F (70°C)
Humidity (Non-condensing)	20% to 95%
Physical Characteristics
Form Factor	In-counter
Color Family	Black
Product Color	Midnight Black
Durability	Spill Resistant,Dust Resistant,Dust Proof
Height	5.40" (137.16 mm)
Width	6" (152.40 mm)
Depth	3.30" (83.82 mm)
Weight (Approximate)	1.33 lb (602 g)
Miscellaneous
Ingress Protection (IP) Rating	IP52
Application/Usage	Retail,Pharmacy,Convenience Store,Self-checkout,Kiosk
Warranty
Limited Warranty	3 Year
