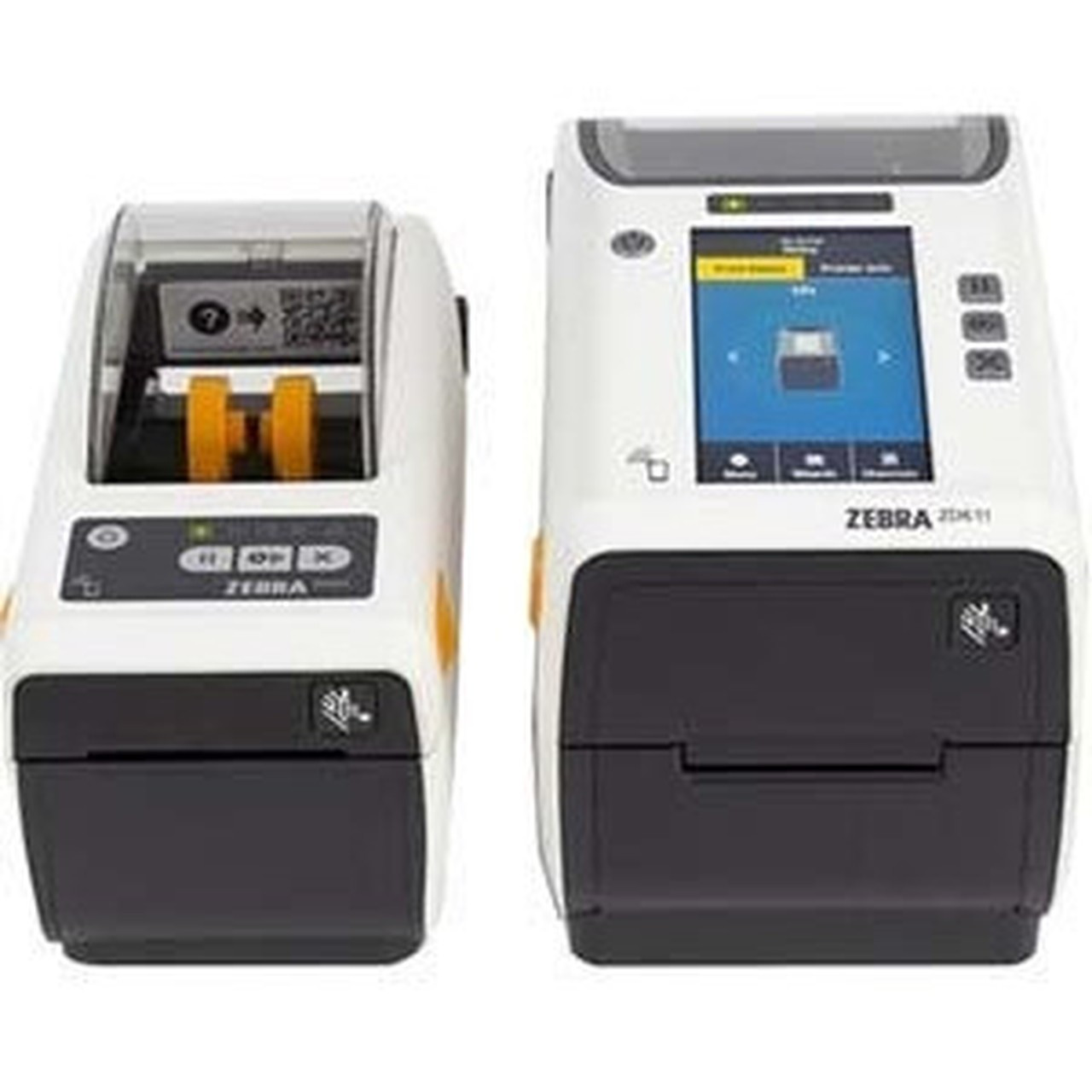

Zebra ZD611t-HC Desktop Thermal Transfer Printer - Monochrome - Label Print - Bluetooth (ZD6AH23-T01E00EZ)

Marketing Information:

Invest in the best with Zebra's premium 2-inch compact desktop printers, made for healthcare

Your Future Printing Starts Here | Technology for Today, Innovation for Tomorrow
Technology is constantly advancing and so will ZD611-HC printers. They're engineered to power future printing at the highest level with an innovative architecture that can perform more operations simultaneously and evolve with emerging technology.

Rely on the ZD611-HC to help you power through - day after day. From outstanding print quality to portability for application flexibility to emerging technology to field-installable options, the ZD611-HC stands apart. Available in direct thermal, thermal transfer and linerless models, the ZD611-HC supports a wide variety of use cases.

Purpose-built Healthcare Design | Easy to Sanitize and Safe to Power

Disinfectant-ready plastics, UV-resistant housing and a sealed-button interface make the ZD611-HC easy to clean and sanitize, which helps prevent the spread of infections in hospitals and clinics. The medical-grade power supply is IEC 60601-1 compliant for use in any healthcare facility.

Operate with Ease | Simple to Setup, Easy to Maintain

Backed by Zebra's innovative Print DNA software suite, ZD611-HC printers are incredibly simple to operate. Deploy them anywhere with setup tools, wizards and emulation capabilities. The intuitive user interface requires minimal training, while remote management capabilities and built-in security mean your infrastructure is protected from cyberattacks.

Change Media Easily

Color-coded touch points and a new media-handling design guide you through speedy media changes to keep printers operational and workers on task. Replace ribbon intuitively and quickly with less mess, hassle and training time - and fewer calls into IT.

Recommended Use: Label Print

Print Color Capability: Monochrome

Maximum Mono Print Speed: 5.98 in/s (152 mm/s)

Maximum Print Resolution (dpi): 300

Maximum Print Width: 2.13" (54 mm)

Barcode Symbology Supported: Code 39,Code 11,Code 128,ISBT-128,Code 93,Interleaved 2 of 5,UPC-A,UPC-E,UPC-A with 2 and 5 Add-on,UPC-E with EAN 2 or 5 Digit Extension,EAN-13,EAN-8,EAN-13 With 2 and 5 Digit Extension,EAN-8 With 2 or 5 Digit Extension,POSTNET,Plessey,Standard 2 of 5,Industrial 2 of 5,LOGMARS,MSI,Codabar,Planet Code,Codablock,PDF417,Code 49,Data Matrix,Maxi Code,QR Code,Micro PDF,AZTEC

Connectivity Technology: Wired

Real Time Clock: Yes

Peel Facility: Yes

Application/Usage: Desktop

Features: LCD Display,Dual Wall Frame,Compact,Dispenser

Standard Memory: 256 MB

USB Host: Yes

USB: Yes

Ethernet: Yes

Ethernet Technology: Fast Ethernet

Bluetooth: Yes

Display Screen: Yes

Screen Size: 4.3" (109.22 mm)

Display Screen Type: LCD

Media Type: Label,Fanfold,Gap,Notch,Roll Fed,Die-cut Label,Continuous Label,Tag Stock,Continuous Receipt,Wristband

Media Sensor: Moveable Reflective/Black Mark Sensor,Multi-position Transmissive/Gap Sensor

Media Thickness: 7.5 mil (0.1905 mm)

Maximum Roll Diameter: 5" (127 mm)

Maximum Label Width: 2.25" (57.15 mm)

Maximum Label Length: 39" (990.60 mm)

Language Emulation: ZPL II,EPL2,XML,ZPL,EZPL,EPL,ZBI

Operating System Supported:

Link-OS

Power Source: AC Supply

Operating Temperature: 40°F (4.4°C) - 105°F (40.6°C)

Operating Relative Humidity: 10% - 90%

Storage Temperature: -40°F (-40°C) - 140°F (60°C)

Storage Relative Humidity: 5% - 95%

Height: 6.66" (169.20 mm)

Width: 5.46" (138.70 mm)

Depth: 9.56" (242.90 mm)

Weight (Approximate): 3.59 lb (1628.40 g)

Power Cable Localization: US

Package Contents:

• ZD611t-HC Thermal Transfer Printer
• Empty Ribbon Take-up Core (0.5 in.)
• AC Power Supply
• Power Cord(s)
• USB Cable
• Quick Start Guide
• Regulatory Guide

Cables Included: AC,USB

Power Adapter Included: Yes

Optional Connectivity: Serial (RS-232),Wireless LAN

Platform Supported: PC,iOS,Android

Energy Star: Yes

Environmentally Friendly: Yes

Environmental Compliance: Registration, Evaluation, Authorization and Restriction of Chemicals (REACH),Restriction of Hazardous Substances (RoHS)

Limited Warranty: 2 Year
