Overview

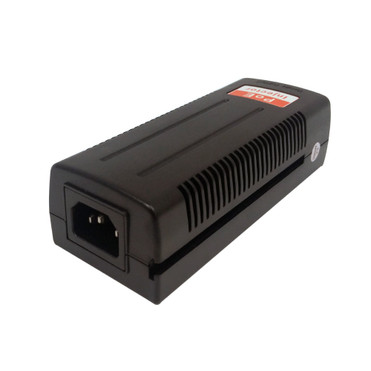

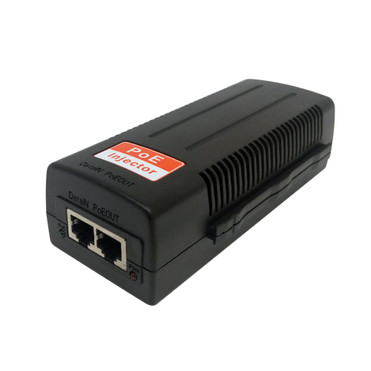

This compact 30 watts PoE injector is a single port passive PoE injector. It can convert standard 100 ~ 240V/AC power into low voltage DC that runs over existing LAN cable to power up IEEE 802.3af/at compliant network accessories and IP security cameras. No external power supply is required providing a compact, cost effective and reliable power solution over existing Ethernet infrastructure.
Features
- Up to 30W of power on 2-pairs
- Supports 100/1000 Base-T applications
- Power input LED indicators
- Internal AC/DC converter
- No need for external power supply
- Easy plug-and-play installation
- Multi-protection
Application
![](https://cdn.shopify.com/s/files/1/0628/4404/3505/files/poe-injector-application.jpg)
Specifications
Physical Characteristics
|
No. of Channels |
1 |
Body Material |
Plastic Enclosure |
Operating Temperature |
-10°C to 40°C |
Storage Temperature |
-10°C to 60°C |
Operating Humidity
|
Maximum 85% (no condensation) |
Storage Humidity |
Maximum 90% (no condensation) |
Dimensions |
145 x 60 x 40mm |
Connectors |
Shielded RJ45, EIA 568A and 568B |
Indicators |
PWR Indicator: AC Power PoE Indicator: Channel Power |
Performance
|
Pass Through Data Rates |
100/1000 Mbps |
Max Power |
30 Watts |
PoE Pin Assignment & Polarity |
1/2 (-), 3/6(+) |
PoE Output Voltage |
DC 50V, 0.6A |
User Port Power |
15.4W & 30W |
AC Input Current/Voltage |
0.5A / 100 to 240 VAC |
Power Consumption |
0.5 Watts |
Frequency |
50 to 60 Hz |
Over Current Protection |
Yes |
Over Load Protection |
Yes |
Over Voltage Protection |
Yes |
Anti-interference Protection |
Yes |
Approval
|
c(UL)us |
Yes |
CE, FCC |
Yes |
Environmental
|
RoHS |
Yes |
Warranty Information |
Warranty |
2 Years |
Packaging Information
|
Package Quantity |
1 - PoE Injector 1- 3 foot C13 to 5-15P Power Cable |
Product Weight |
0.72 lbs [0.33kg] |
