Overview

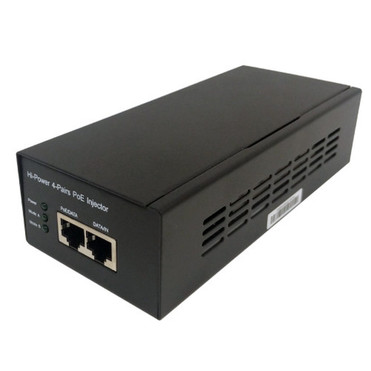

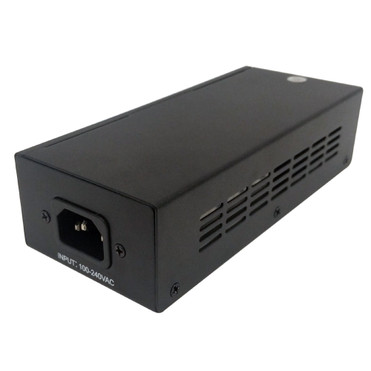

This compact 60 watts PoE injector is a single port passive PoE injector. It can convert standard 100 ~ 240V/AC power into low voltage DC that runs over existing LAN cable to power up IEEE 802.3af/at compliant network accessories and IP security cameras. No external power supply is required providing a compact, cost effective and reliable power solution over existing Ethernet infrastructure.
Features
- Up to 60W of power on 4-pairs
- Supports 10/100/1000 Base-T applications
- Power input LED indicators
- Internal AC/DC converter
- No need for external power supply
- Easy plug-and-play installation
- Multi-protection
Application
Specifications
|
Physical Characteristics
|
| No. of Channels |
1 |
| Body Material |
Metal Enclosure |
| Operating Temperature |
-0°C to 40°C |
| Storage Temperature |
-10°C to 50°C |
Operating Humidity
|
Maximum 85% (no condensation) |
| Storage Humidity |
Maximum 90% (no condensation) |
| Dimensions |
168 x 73.5 x 44mm |
| Connectors |
Shielded RJ45, EIA 568A and 568B |
| Indicators |
PWR Indicator: AC Power
PoE Indicator: Channel Power |
|
Performance
|
| Pass Through Data Rates |
10/100/1000 Mbps |
| Max Power |
60 Watts |
| PoE Pin Assignment & Polarity |
1/2 (-), 3/6(+), 4/5(+), 7/8(-) |
| PoE Output Voltage |
DC 50V, 1.2A |
| User Port Power |
30W & 60W |
| AC Input Current/Voltage |
0.5A / 100 to 240 VAC |
| Power Consumption |
1 Watts |
| Frequency |
50 to 60 Hz |
| Over Current Protection |
Yes |
| Over Load Protection |
Yes |
| Over Voltage Protection |
Yes |
| Anti-interference Protection |
Yes |
|
Approval
|
| c(UL)us |
Yes |
| CE, FCC |
Yes |
|
Environmental
|
| RoHS |
Yes |
|
Warranty Information
|
| Warranty |
2 Years |
|
Packaging Information
|
| Package Quantity |
1 - PoE Injector
1- 3 foot C13 to 5-15P Power Cable |
| Product Weight |
1.36 lbs [0.62kg] |
