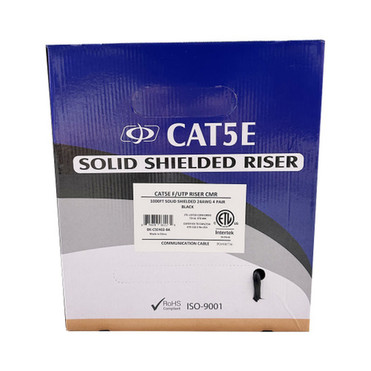

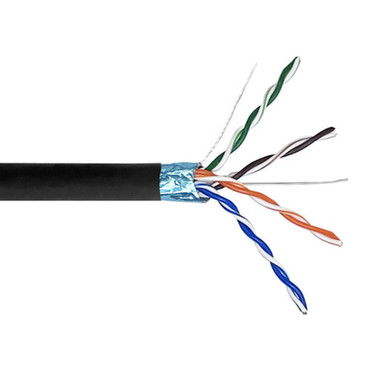

This bulk riser rated Cat5e cable is 1000 feet in length and consists of 4 pairs of 24AWG solid wires with an overall foil shield. It is typically used as in-wall premise wiring and terminated from a patch panel to a Cat5e jack. It is great for all high bandwidth applications such as high speed networks.
Physical Characteristics | |
---|---|
Cable Length | 1000ft |
Color | Black/ Blue/ White |
Number of Pairs | 4 Pairs Twisted |
Wire Gauge | 4 Pairs of 24AWG solid + 24AWG TC Drain Wire |
Conductor Material | 100% Bare Copper |
Product Standard Certification | CMR |
Jacket Material | PVC |
Jacket Rating | Riser |
Jacket Diameter | 6.7mm |
Aluminum Foil | Yes |
Rip Cord | Yes |
Cable Shielding | Aluminium Foil |
Insulation | PE |
Temperature | -20?~75? |
Performance | |
Spark Test |
2.0KV AC |
Dielectric Strength | 2500 Vdc/2secs |
Insulation Resistance | >5G?.km |
Mutual Capacitance | 5.6nF/100m nominal |
Capacitance Unbalance | 330pF/100m |
Conductor Resistance | < 9.38?/100m |
Resistance Unbalance | 2.5 % Max |
Impedance | 100±15? |
Electrical Characteristics |
Frequency (MHz) | 1 | 4 | 10 | 16 | 20 | 31.25 | 100 | 200 | 250 |
Insertion Loss (dB/100m) |
2 | 4 | 6.3 | 8 | 9 | 11.4 | 21.4 | 30.3 | 34.5 |
NEXT (dB) | 73.3 | 64.3 | 58.3 | 55.2 | 53.8 | 50.9 | 43.4 | 38.8 | 37.3 |
PSNEXT (dB) | 70.3 | 61.3 | 55.3 | 52.2 | 50.8 |
47.9 | 40.3 | 35.8 | 34.3 |
ACR-F (dB) | 78.8 | 66.8 | 58.8 | 54.7 | 52.8 | 48.9 | 38.8 | 32.8 | 30.8 |
PSACR-F (dB) | 76.8 | 64.8 | 56.8 | 52.7 | 50.8 | 46.9 | 36.8 | 30.8 | 28.8 |
Return Loss (dB) | 25 | 28 | 30 | 30 | 30 | 28.6 | 25.1 | 23 | 22.3 |
Environmental | |
---|---|
RoHS, c(ETL)us | Yes |
Packaging Information | |
Package Quantity | 1 |
Product Weight | 30.35 lbs [14kg] |
