16-Channel IP NVR - 12MP - 4K 320Mbps - 16x PoE - 2x SATA

Free Shipping*

Shipping Restrictions

Additional fees may apply for shipments to locations beyond normal service areas and heavy weight or oversize items.

16-Channel IP NVR - 12MP - 4K 320Mbps - 16x PoE - 2x SATA

Name: 16-Channel IP NVR - 12MP - 4K 320Mbps - 16x PoE - 2x SATA
Brand: Fleet Network
SKU: FN-SCD-NVR502-16B-P16
Price: 446.95 CAD
Availability: InStock

SKU: FN-SCD-NVR502-16B-P16

(No reviews) Write a Review

MSRP: $496.95

$496.95

$446.95

Save: $50.00 (10.06%)

Weight: 5.73 LBS

Width: 15.00 (cm)

Height: 3.00 (cm)

Depth: 13.00 (cm)

Current Stock:

Quantity:

Adding to cart… The item has been added

Business Pricing

Volume deals available
IT Experts

Consulting & support
Config Service

From PC to server
Canada Stocked

Toronto - Alberta - BC

Products Features

Whether you are a lefty or a righty, the symmetrically shaped mouse suits both
USB Type A connectivity for a easy connection
Optical LED for smoother movement and hassle-free performance

Description
Specifications
Options
User Manual
Highlights

Description

Overview

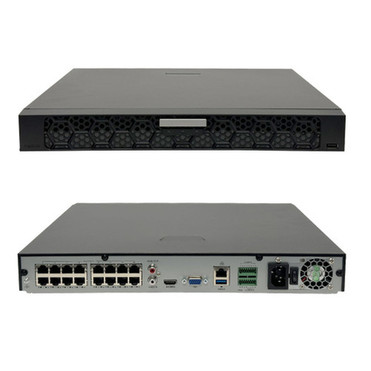

This 16 channel NVR is a network video recorder that can support up to 12MP IP cameras. It has 16 built in plug & play PoE ports to make set up simple and easy. With a space for two hard drives with capacity up to 16TB and can support Ultra 265/H.265/H.264 video format compression to put less stress on storage and bandwidth usage. A local monitor can be connected either through the HDMI or VGA ports.

Features

Support Ultra 265/H.265/H.264 video formats
16-channel input
Plug & Play with 16 independent PoE network interfaces
Support mainstream cameras of ONVIF conformance(Profile S, Profile G, Profile T) and RTSP protocols
Support 1-ch HDMI, 1-ch VGA. HDMI up to 4K (3840x2160) resolution
HDMI and VGA independent outputs provided
Up to 12 Megapixels resolution recording
2 SATA HDDs, up to 16TB for each HDD
Various fisheye dewarping modes for live view and playback for both web
interface and GUI
ANR technology to enhance the storage reliability when the network is disconnected
Support cloud upgrade

Application

Specifications

Physical Characteristics
Dimensions	380mm × 322mm × 53mm (15.0"×12.7"×2.1") (W×D×H)
Operating Temperature	-10°C~+ 55°C (+14°F~+131°F), Humidity ≤ 90% RH (non-condensing)
Power Supply	100 ~ 240 V AC
Power Consumption	≤20W (without HDD)
Video and Audio Input
IP Video Input	16-channel
Two-Way Audio Input	1-channel, RCA
Video and Audio Output
HDMI/VGA Output	HDMI: 4K (3840 x 2160)@30, 1920 x 1080p@60, 1920 x 1080p@50, 1600 x 1200@60, 1280 x 1024@60, 1280 x 720@60, 1024 x 768@60 VGA: 1920 x 1080p@60, 1920 xx 1080p@50, 1280 x 1024@60, 1280 x 720@60, 1024 x 768@60
Recording Resolution	12MP/8MP/6MP/5MP/4MP/3MP/1080p/960p/720p/D1/2CIF/CIF
Audio Output	1-channel, RCA
Two-way Audio	1-ch, RCA(Using the audio input and output)
Audio Compression	G.711A, G.711U
Synchronous Playback	16-channel
Liveview Display	1/4/6/8/9/16
Corridor Mode Screen	3/4/5/7/9/10/12/16
Network
Incoming Bandwidth	320Mbps
Outgoing Bandwidth	160Mbps
Remote Users	128
Protocols	TCP/IP, P2P, UPnP, NTP, DHCP, PPPoE, HTTP, HTTPS, DNS, DDNS, SNMP, SMTP, RTSP, IPV6
Browser	IE(IE10/11) for Windows Firefox (version 52.0 and above) for Windows Chrome(version 45 and above) for Windows Edge(version 79 and above) for Windows
Snapshot
FTP/Schedule/Event Snapshot	4-ch snapshot, up to D1 resolution
Decoding
Decoding Format	Ultra 265/H.265/H.264
Liveview/Playback	12MP/8MP/6MP/5MP/4MP/3MP/1080p/960p/720p/D1/2CIF/CIF
Capability	Ultra 265/H.265: 2 x 12MP@30, 4 x 4K@30, 6 x 5MP@30, 8 x 4MP@30, 10 x 3MP@30, 16 x 1080P@30, 32 x 960P@25 H.264: 2 x 12MP@30, 2 x 4K@30, 4 x 5MP@30, 6 x 4MP@30, 8 x 3MP@30, 14 x 1080P@30, 30 x 720P@30, 32 x D1
Hard Disk
SATA	2 SATA interfaces
Capacity	Up to 16TB for each disk
Smart
VCA Detection By Camera	Vehicle Detection, Intrusion Detection, Cross Line Detection, Enter Area, Leave Area, Temperature Detection(Fire Detection, Smoking Detection, Temperature Measurement, Smoke and Fire Detection), UMD(Ultra Motion Detection), Video Metadata, Traffic Monitoring
VCA Search	Motor Vehicle Search, Non-Motor Vehicle Search, Human Body Search, General Search, People Counting Report
People Counting	People Flow Counting, Crowd Density Monitoring
Smart Intrusion Prevention (SIP), Vehicle Detection, UMD, Video Metadata, Traffic Monitoring by Camera	All-channel
General Alarm
Network Interface	Defocus Detection, Scene Change Detection, Object Left Behind, Object Removed, Auto Tracking, Motion, Tampering, Human Body Detection, Video Loss, Alarm Input, Audio Detection
Alert Alarm	IP Conflict, Network Disconnected, Disk Offline , Disk Abnormal, Illegal Access, Hard Disk Space Low, Hard Disk Full, Recording/Snapshot Abnormal
External Interface
Network Interface	1 RJ-45 10M/100M/1000M self-adaptive Ethernet Interface
USB Interface	Front panel: 1 x USB2.0, Rear panel: 1 x USB3.0
Alarm In	8-channel
Alarm Out	2-channel
RS232	N/A
RS485	1
PoE
Interface	16 RJ-45 10M/100M self-adaptive Ethernet Interface
Max Power	Max 30W for single port Max 240W in total
Supported Standard	IEEE 802.3af/at
Certification
Certification	CE, FCC, UL, RoHS, WEEE
CE	EN 55032, EN 61000-3-3, EN IEC 61000-3-2, EN 55035
FCC	Part15 Subpart B
NDAA Compliant	Yes
Packaging Information

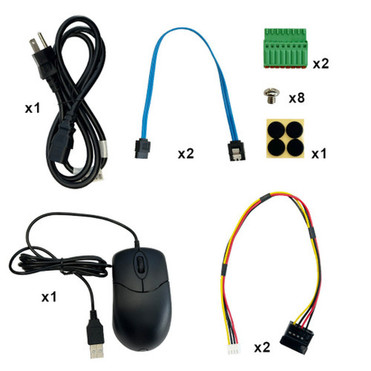

Package Contents	1 - NVR 2 - Hard Disk Data Cable 2 - Hard Disk Power Cable 1 - Power Cable 1 - Mouse 8 - Screws 1 - User Manual
Product Weight	5.73 lbs [2.6 kg]

HDD Specs

This hard disk drive is engineered to work for surveillance security systems. It is designed for high temperature, always-on, surveillance security systems to ensure reliability and quality video playback.

Features

Engineered specifically for surveillance security systems
Prioritized write-operations for maximized surveillance performance
Tuned for write-intensive, low bit-rate, high stream-count applications typical to most surveillance applications
Reduced video frame loss
TLER and ATA streaming support
Optimized performance for up to 32 high-definition surveillance cameras

Physical Characteristics
Form Factor	3.5 inch
Dimensions	€¦ 5.7" x 4.0" x 1.0" (ˆ… 147 x 102 x 26mm)
Operating Temperature	0°C to 65°C
Non-Operating Temperature	-40°C to 70°C
Performance
Formatted Capacity (Part Number)	1TB (WD10PURX)	2TB (WD20PURX)	4TB (WD40PURX)	6TB (WD62PURX)	8TB (WD84PURZ)	16TB (WD101PURP)
Cache	64MB				128MB	256MB
Data Transfer Rate	Buffer to Host - 6 GB/s Host to/from drive (sustained) - 110 MB/s	Buffer to Host - 6 GB/s Host to/from drive (sustained) - 145 MB/s	Buffer to Host - 6 GB/s Host to/from drive (sustained) - 150 MB/s	Buffer to Host - 6 GB/s Host to/from drive (sustained) - 175 MB/s	Buffer to Host - 6 GB/s Host to/from drive (sustained) - 245 MB/s	Buffer to Host - 6 GB/s Host to/from drive (sustained) - 265 MB/s
Hard Disk Interface	SATA
Rotational Speed (RPM)	IntelliPower^TM
Load/Unload Cycles	300,000				600,000
Non-Recoverable Read Errors per Bits Read	< 1 in 10¹⁴				< 1 in 10¹⁵
Power Management
Average Power Requirements	Read/Write - 3.3W Idle - 2.9W Standby and Sleep - 0.4W	Read/Write - 4.4W Idle - 4.1W Standby and Sleep - 0.4W	Read/Write - 5.1W Idle - 4.5W Standby and Sleep - 0.4W	Read/Write - 5.3W Idle - 4.9W Standby and Sleep - 0.4W	Read/Write - 8.6W Idle - 7.4W Standby and Sleep - 0.4W	Read/Write - 9W Idle - 8W Standby and Sleep - 0.5W
Approvals
RoHS	Yes
Packaging Information
Package Quantity	1
Product Weight	0.99 lbs [0.45 kg]	1.40 lbs [0.64 kg]	1.50 lbs [0.68 kg]	1.65 lbs [0.75 kg]	1.58 lbs [0.72 kg]	1.65 lbs [0.75 kg]
