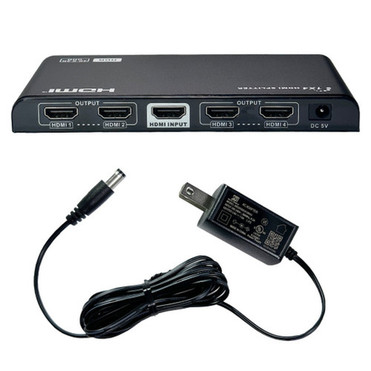

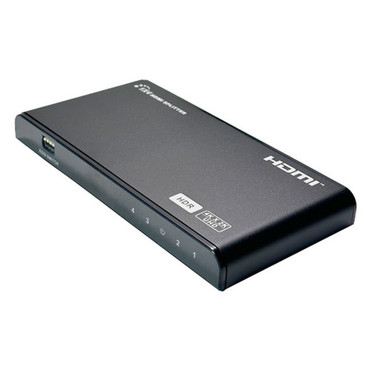

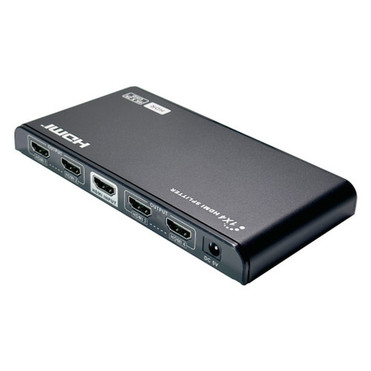

This 1x4 HDMI splitter enables you to display one HDMI device to four HDMI displays simultaneous. It is typically used to connect a HDMI source such as DVD player, Blu-ray player, satellite receiver or gaming system to HDMI displays such as HDTVs, HD projectors or HDMI monitors. The splitter performs at HDMI 2.0 resolutions - 4K at 60Hz with 4:4:4 chroma subsampling and a transmit bandwidth up to 18Gbps. It also supports HDCP 2.2 and is backward compatible with 4K 30Hz and 1080p displays.
| Physical Characteristics |
| Input Voltage |
240V |
| Power Supply |
5V/1A DC |
| Power Consumption |
<3W |
| Compatibility |
| PC to Monitor |
Yes |
| PC to TV |
Yes |
| DVD to Monitor |
Yes |
| DVD to TV |
Yes |
| Connector(s) |
| Input |
1 x HDMI Female |
| Output |
4 x HDMI Female |
| Performance |
| HDMI Resolution |
Compatible with HDMI1.4,HDMI2.0 |
| HDMI Version |
Compatible with HDMI1.4,HDMI2.0 |
| 3D Video |
Yes |
| HDCP Compliant |
Yes, Supports HDCP2.2/1.4 |
| HDR Support |
Yes |
| Audio |
Support standard audio and DSDï1/4Direct Stream Digital) and HD(HBR) audio |
| Transmission Rate |
18Gbps |
| Frequency Range |
25MHz~594MHz |
| Input and output TMDS signal |
0.7~1.2Vp-p(TMDS) |
| Input and output DDC signal |
5Vp-p(TTL) |
| EDID management |
Support smart EDID management, available to display different resolution monitors at the same time |
| Approvals |
| Power Adapter |
c(UL)us |
| Environmental |
| RoHS |
Yes |
| Certification(s) |
| CE |
Yes |
| FCC |
Yes |
| Packaging Information |
| Included in Package |
1 - HDMI Splitter |
|

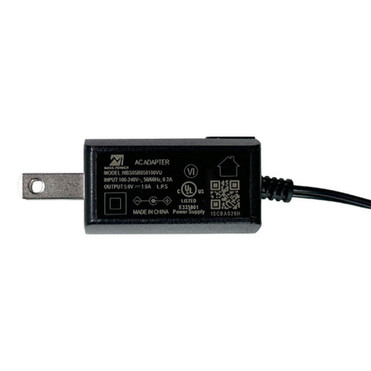

1 - DC5V Power Adapter |
|
1 - Manual |
Spec Sheets
Download attachment
EDID Settings
| Switch Status |
1 |
2 |
3 |
4 |
EDID information |
| 0 |
0 |
0 |
0 |
4K@60Hz 2CH |
| 1 |
0 |
0 |
0 |
4K@60Hz 7.1CH |
| 0 |
1 |
0 |
0 |
4K@30Hz 2CH |
| 1 |
1 |
0 |
0 |
4K@60Hz 7.1CH |
| 0 |
0 |
1 |
0 |
1080p@60Hz 2CH |
| 1 |
0 |
1 |
0 |
1080p@60Hz 7.1CH |
| 0 |
1 |
1 |
0 |
1080i@60Hz 2CH |
| 1 |
1 |
1 |
0 |
1080i@60Hz 7.1CH |
| 0 |
0 |
0 |
1 |
1080p@50Hz 2CH |
| 1 |
0 |
0 |
1 |
1080p@50Hz 7.1CH |
| 0 |
0 |
1 |
0 |
1080p@60Hz 2CH |
| 0 |
1 |
0 |
1 |
4K@30Hz HDR |
| 1 |
1 |
0 |
1 |
4K@60Hz HDR |
| 0 |
0 |
1 |
1 |
Copy once (Read the EDID of the first connected output only) |
| 1 |
0 |
1 |
1 |
MIX1 (Lowest format of audio, and lowest format of video) |
| 0 |
1 |
1 |
1 |
MIX2 (Highest format of audio, and Highest format of video) |
| 1 |
1 |
1 |
1 |
MIX3 (Lowest format of audio, and compose down scaling of video) |
[NOTE]
Switch up for "1"
Switch down for "0"
Power cycle the unit after EDID changes
