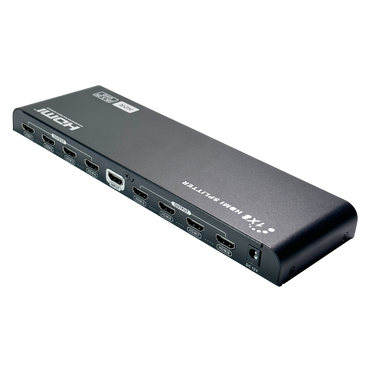

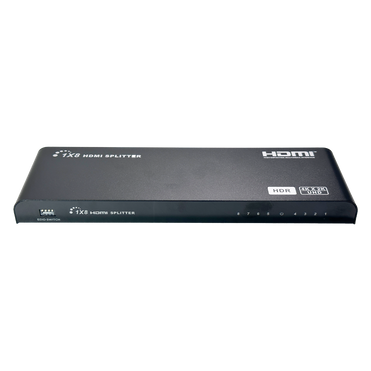

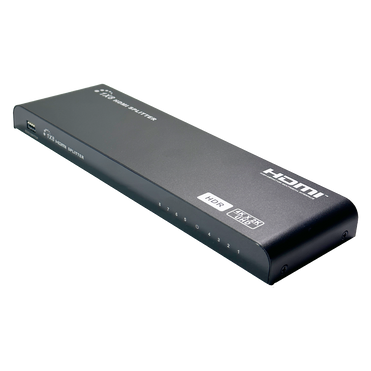

This 1x8 HDMI splitter enables you to display one HDMI device to eight HDMI displays simultaneous. It is typically used to connect a HDMI source such as DVD player, Blu-ray player, satellite receiver or gaming system to HDMI displays such as HDTVs, HD projectors or HDMI monitors. The splitter performs at HDMI 2.0 resolutions - 4K at 60Hz with 4:4:4 chroma subsampling and a transmit bandwidth up to 18Gbps. It also supports HDCP 2.2 and is backward compatible with 4K 30Hz and 1080p displays.
|
Physical Characteristics
|
| Color
|
Black
|
| Housing
|
Metal Enclosure
|
| Operating Temperature
|
0??60?
|
|
Power
|
| Input Voltage
|
240V
|
| Power Supply
|
12V/1A DC
|
| Power Consumption
|
<8W
|
|
Compatibility
|
| PC to Monitor
|
Yes
|
| PC to TV
|
Yes
|
| DVD to Monitor
|
Yes
|
| DVD to TV
|
Yes
|
|
Connector(s)
|
| Input
|
1 x HDMI Female
|
| Output
|
8 x HDMI Female
|
|
Performance
|
| HDMI Resolution
|
Compatible with HDMI1.4,HDMI2.0
|
| HDMI Version
|
Compatible with HDMI1.4,HDMI2.0
|
| 3D Video
|
Yes
|
| HDCP Compliant
|
Yes, Supports HDCP2.2/1.4
|
| HDR Support
|
Yes
|
| Audio |
Support standard audio and DSDï1/4Direct Stream Digital) and HD(HBR) audio |
| Transmission Rate |
18Gbps |
| Frequency Range |
25MHz~594MHz |
| Input and output TMDS signal |
0.7~1.2Vp-p(TMDS) |
| Input and output DDC signal |
5Vp-p(TTL) |
| EDID management |
Support smart EDID management, available to display different resolution monitors at the same time |
|
Approvals
|
| Power Adapter
|
c(UL)us
|
|
Environmental
|
| RoHS
|
Yes
|
|
Certification(s)
|
| CE
|
Yes
|
| FCC
|
Yes
|
|
Packaging Information
|
| Package Quantity
|
1
|
| Product Weight
|
1.04 lbs [0.47kg]
|
| Package Weight
|
1.81 lbs [0.83kg]
|
| Dimensions |
262mm(L) x 81.6mm(W) x 23.5mm(H) |
|
Contents
|
| Included in Package
|
1 - HDMI Splitter
|
|
|
1 - DC12V Power Adapter
|
|
|
1 - Manual
|
