Overview

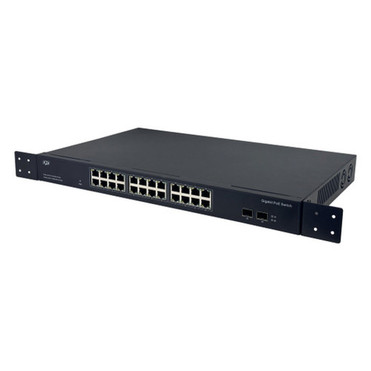

This is a 24+2-port gigabit Ethernet switch, providing 24x 10/100/1000Mbps PoE+ ports and two SFP ports. The switch provides power and network to PoE+ compatible devices such as access points, CCTV cameras, voice over IP phone, etc., eliminating the need to power the devices separately.
Features
- 24 x 10/100/1000M unmanaged PoE+ ports - IEEE802.3af/at
- Ports 1-24 supports IEEE802.3af/at - Max. 30W
- 2 x Uplink Gigabit SFP port
- Internal power supply
- Support auto MDI/MDIX
- Network Topology: Star/Bus/Tree Topology
- Solid high-strength metal shell
Application
Specifications
|
Physical Characteristics
|
| Dimensions |
440 x 44 x 280 mm |
| Shell |
Metal Material |
| Height |
1U |
| Operating Temperature |
-10°C to 50°C |
| Storage Temperature |
-40°C to 70°C |
Operating Humidity /
Storage Humidity |
5% to 95% (no condensation) |
| Thermal Methods |
Fan cooling |
| Power Supply |
100 to 240 VAC, 50/60 Hz
|
| Total Power consumption |
?400W |
| Main board power |
<15W |
| Ports |
24 x Gigabit PoE+ ports |
| Uplink Ports |
2 x Gigabit SFP fiber optical port |
| Port Type |
RJ45 port, Full duplex, MDI/MDI-X adaptive |
| PoE Power Supply |
PoE Standard: IEEE 802.3af, IEEE 802.3at
PoE Power Pin: Support 4-core power supply, and Ethernet cable 1/2+/3/6- provide power supply.
PoE Port: Ports 1 to 24
PoE Output: 52V/0.6A Max.
Maximum Port Power: 30 W
PoE Power Budget: 375 W
SFP Port Module: 3.3V/ 300mA
|
| Cable type & Transmission Distance |
Twisted-pair: 0-100m
Singlemode Optical Fiber: 20/40/60/80/100km
Multimode Optical Fiber: 550m
|
| Mounting Ears |
Yes |
| Network Topology |
Ring Topology: Not support
Star/ Bus/ Tree Topology: Support
|
|
Performance
|
| Network Standard |
IEEE 802.3, IEEE 802.3u, IEEE 802.3x, IEEE 802.3ab, IEEE 802.3z |
| MAC Address Table |
8K |
| Transfer Mode |
Store-and-forward switching |
| Forwarding Delay |
<10us |
| Switching Capacity |
52 Gbps |
| Packet Forwarding Rate |
38.6 Mpps |
| Internal Cache/ Buffer |
4.1 Mbits |
| MDI/MDIX |
Support |
| Jumbo Frame |
10Kbytes |
| MTBF |
100000 hours |
| Surge protection of Ethernet port |
IEC 61000-4-5 Level 4 (6/2KV) (10/700us) |
| DIP |
IEC 61000-4-11 Level 3 (10V) |
| ESD |
IEC 61000-4-2 Level 4 (8K/15K) |
| Free Fall |
0.5m |
|
SFP Compatibility
|
| TR-SFP-1G-LXG |
1000base-LX SFP 1310nm SM LC Transceiver, 10km |
| TR-SFP-1G-SXG |
1000base-SX SFP 850nm MM LC Transceiver, 500m |
| TR-GLC-T |
Cisco® GLC-T Compatible 1000BASE-T SFP Copper RJ45 Transceiver |
|
Approval
|
c(ETL)us
|
Yes |
|
Environmental
|
| RoHS |
Yes |
| FCC, CE |
Yes |
|
Packaging Information
|
| Package Quantity |
1 |
| Product Weight |
8.25 lbs [3.74kg] |
