2MP Turret TVI Camera - 6mm Fixed Lens - Ultra Lowlight IR with 130ft Range - Outdoor IP67 Rated - White
Have questions?
Proud Canadian team since 2007
Consulting & Technicians services
From VoiP phone to Cluster servers
Shipped Trough UPS & Purolator

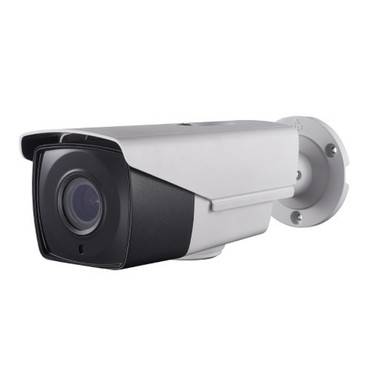

This 2MP outdoor, TVI based bullet camera provides a sharp, high definition images in daylight or nighttime settings. The camera has a 2.7 to 13 mm motorized varifocal lens which delivers 103° to 32.1° horizontal field of view. Its maximum resolution is 1080p at 30 fps NTSC or 1080p at 25 fps PAL. Using TurboHD technology, the high definition video analog signal can be sent over existing coaxial cable, eliminating the need to run new cables. Its housing is IP67 rated for outdoor use and has 130 feet of night vision using Ultra-Low Light EXIR technology for high definition analog output.
Features
Camera
|
|
---|---|
Image Sensor | 2.0 MP progressive scan CMOS |
Signal System | PAL/NTSC |
Frame Rate | PAL: 1080p @ 25 fps; NTSC: 1080p @ 30 fps |
Resolution | 1920 (H) x 1080 (V) |
Minimum Illumination | Color: 0.005 lux @ (/1.2, AGC on), 0 lux with IR |
Shutter Time | PAL: 1/25 s to 1/50,000 s; NTSC: 1/30 s to 1/50,000 s |
Slow Shutter | Maximum 16 times |
Lens | 2.7 mm to 13 mm motorized vari-focal lens |
Horizontal Field of View |
32.1° to 103° |
Lens Mount | ¬14 |
Day and Night | IR cut filter |
Angle Adjustment | Pan: 0° to 360°, tilt:0° to 90°, rotate: 0° to 360° |
Synchronization | Internal synchronization |
WDR (Wide Dynamic Range) | > 120 dB |
Menu
|
|
AGC | Supported |
Day and Night Mode | Auto/Color/BW (Black and White) |
White Balance | ATW/MANUAL |
Privacy Mask | ON/OFF, 4 programmable privacy masks |
Motion Detection | 4 programmable motion areas |
Backlight Compensation | WDR/BLC/HLC/OFF |
3D DNR (Digital Noise Reduction) | Level 1 to 10 |
Language | English |
Functions | Brightness, sharpness, mirror, Smart IR |
Interface
|
|
Video Output | 1 HD analog output |
General
|
|
Operating Conditions | -40° F to 140° F (-40° C to 60° C), humidity: 90% or less (non-condensation) |
Power Supply | 12 VDC ± 25%, 24 VAC ± 25% |
Power Consumption | Maximum 9 W |
Ingress Protection | IP67 |
Material | Metal and Plastic |
IR Range | Up to 130 ft (40 m) |
Communication | Up-the-Coax, Protocol: HIKVISION-C (TVI output) |
Dimensions | 3.62" x 3.5" x 3.34" (92 mm x 89 mm x 269.6 mm) |
Weight | Approximately 1.98 lbs (900 g) |
Approvals
|
|
c(UL)us | Yes |
CE | Yes |
FCC | Yes |
ONVIF | Yes |
CA-B2100-WH | Wall Mounting Bracket with Junction Box for Turret Cameras - White |
CA-DS-1273ZJ-130-TRL-WH | Wall Mounting Bracket for Turret Cameras - White |
CA-DS-1280ZJ-DM8-WH | Junction Box Mounting Bracket for Turret Cameras - White |
CA-DS-1280ZJ-DM8-GY | Junction Box Mounting Bracket for Turret Cameras - Grey |
CA-DS-1272ZJ-110-TRS-WH | Wall Mounting Bracket for Turret Camera - White |
CN-DCM-S | DC Power Connector Male 2.1mm x 5.5mm Screw Down |
CN-DCM | DC Power Connector Male 2.1mm x 5.5mm Plastic Shell |
CN-DCM-8IN | DC Power Connector Male 2.1mm x 5.5mm (8 inch Pigtail, 22AWG) |
CN-CBNCM-59-10 | BNC Male Compression Connector for RG59 - Pack of 10 |
CN-CBNCM-59-10PL | BNC Male Compression Connector for RG59 Plenum - Pack of 10 |
CN-30-734A | BNC Male Crimp Connector for RG59 (734A) |
CN-30-RG59P | BNC Male Crimp Connector for RG59 Plenum Cable |
CN-30-S | BNC Male Screw Down Connector, 75 Ohm |
CN-TBNC-59 | BNC Male Twist-On Connector for RG59 |
