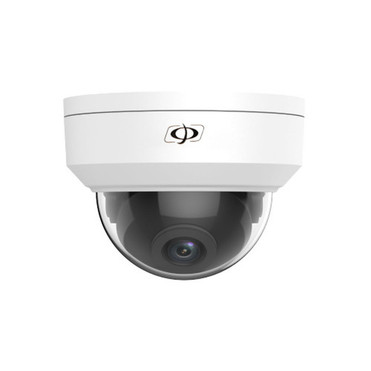

This 2MP indoor/outdoor, TVI based dome camera provides a sharp, high definition images in daylight or nighttime settings. The camera has a 2.8mm or 3.6mm fixed lens. Its maximum resolution is 1080p. The high definition video analog signal can be sent over existing coaxial cable, eliminating the need to run new cables. Its housing is IK10 vandal-resistant, IP66 rated and has 65 feet of night vision for high definition analog output.
Note: Dome cameras are best suited for indoor applications or outdoor applications which are sheltered from direct sunlight and any other adjusted light sources, as the curvature of the dome can cause reflections and glares on the camera lens. Turret cameras are best suited for outdoor applications which are directly exposed to the elements.
|
Camera
|
|
|---|---|
| Image Sensor | 2.0 MP CMOS image sensor |
| Resolution | 1920 (H) x 1080 (V) |
| S/N Ratio | More than 48dB |
| Minimum Illumination | 0Lux |
| Auto Electronic Shutter | PAL:1/50s-1/10000s;NTSC:1/60s-1/10000s |
| IR Distance | 20m (with 12 unit infrared LED) |
| IR Status | Under 10 Lux by CDS |
| IR Power On | CDS Auto Control |
| Field of View (H) | 2.8mm: 93° 3.6mm: 79° |
| Field of View (V) | 2.8mm: 51° 3.6mm: 43° |
| Field of View (D) | 2.8mm: 111° 3.6mm: 94° |
| Gamma Characteristic | 0.45 |
|
Menu
|
|
| Auto Gain Control | Supported |
| Auto Electronic Shutter | Supported |
| Day and Night Conversion | ICR Mechanical Switch |
| White Balance | Auto |
| Scanning Mode | NTSC or PAL mode |
|
Interface
|
|
| Video Output | AHD/CVI/TVI/CVBS |
|
General
|
|
| Storage Temperature | -30~ +60 deg C |
| Operating Temperature | -10~ +55 deg C |
| Water Resistance | IP66 |
| Power/Current | 12VDC (+/-10%)/ 250mA |
| Dimension | ?110×85mm |
| Weight | Approximately 0.83 lbs (380 g) |
| SCA-JB01D | Junction Box Mounting Bracket for Analog Dome Cameras |
| CN-DCM-S | DC Power Connector Male 2.1mm x 5.5mm Screw Down |
| CN-DCM | DC Power Connector Male 2.1mm x 5.5mm Plastic Shell |
| CN-DCM-8IN | DC Power Connector Male 2.1mm x 5.5mm (8 inch Pigtail, 22AWG) |
| CN-CBNCM-59-10 | BNC Male Compression Connector for RG59 - Pack of 10 |
| CN-CBNCM-59-10PL | BNC Male Compression Connector for RG59 Plenum - Pack of 10 |
| CN-30-734A | BNC Male Crimp Connector for RG59 (734A) |
| CN-30-RG59P | BNC Male Crimp Connector for RG59 Plenum Cable |
| CN-30-S | BNC Male Screw Down Connector, 75 Ohm |
| CN-TBNC-59 | BNC Male Twist-On Connector for RG59 |
Phantom Camview iOS App
Supports iOS 8.0 or later & requires macOS 11.0 or later and a Mac with the Apple M1 chip or later. Compatible with iPhone, iPad, iPod touch and Mac.
