2MP Dome TVI or CVBS Camera - Varifocal Lens - Ultra Lowlight IR with 130ft Range - 12V or 24V Power - IP67 Rated - White

(No reviews) Write a Review
$133.20
$133.00
SKU: FN-CA-AC344D-OD4Z-WH
Availability: Stock Toronto
Weight: 3.53 LBS
Adding to cart… The item has been added

Overview

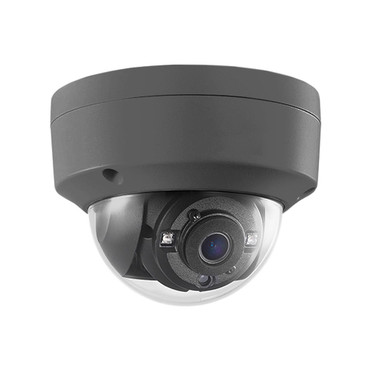

This 2MP indoor/outdoor, TVI or CVBS based dome camera provides a sharp, high definition images in daylight or nighttime settings. The camera has a 2.8to 12 mm motorized varifocal lens which delivers 103° to 32.1° horizontal field of view. Its maximum resolution is 1080p at 30 fps NTSC or 1080p at 25 fps PAL. Using TurboHD technology, the high definition video analog signal can be sent over existing coaxial cable, eliminating the need to run new cables. The camera supports both 12VDC or 24VAC power. Its housing is IP67 rated for outdoor use and has 130 feet of night vision using Ultra-Low Light EXIR technology for high definition analog output.

Features

  • 2M Smart FSI CMOS Sensor
  • TVI or CVBS based camera via dip switch selection
  • Supports both 12VDC or 24VAC power
  • EXIR, 60m IR
  • Outdoor EXIR Auto-Focus Dome
  • ICR
  • 0.003 Lux/F1.2
  • Smart IR
  • 3D DNR
  • OSD Menu(Up the Coax)
  • 130dB True WDR
  • Auto-Focus,IP67
  • Vandal Proof
  • 2.7~13.5mm Auto-Focus Lens
  • Support Gang box Installation

Application

Specifications

Camera
Image Sensor 2.0 MP progressive scan CMOS
Signal System PAL/NTSC
Frame Rate PAL: 1080p @ 25 fps; NTSC: 1080p @ 30 fps
Resolution 1920 (H) x 1080 (V)
Minimum Illumination Color: 0.005 lux @ (ƒ/1.2, AGC on), 0 lux with IR
Shutter Time PAL: 1/25 s to 1/50,000 s; NTSC: 1/30 s to 1/50,000 s
Slow Shutter Maximum 16 times
Lens 2.8 mm to 12 mm motorized vari-focal lens
Horizontal Field of View
 32.1° to 103°
Lens Mount ?14
Day and Night IR cut filter
Angle Adjustment Pan: 0° to 340°, tilt:0° to 75°, rotate: 0° to 355°
Synchronization Internal synchronization
WDR (Wide Dynamic Range) > 120 dB
Menu
AGC Supported
Day and Night Mode Auto/Color/BW (Black and White)
White Balance ATW/MANUAL
Privacy Mask ON/OFF, 4 programmable privacy masks
Motion Detection 4 programmable motion areas
Backlight Compensation WDR/BLC/HLC/OFF
3D DNR (Digital Noise Reduction) Level 1 to 10
Language English
Functions Brightness, sharpness, mirror, Smart IR
Interface
Video Output 1 HD analog output
General
Operating Conditions -40° F to 140° F (-40° C to 60° C), humidity: 90% or less (non-condensation)
Power Supply 12 VDC ±25%, 24 VAC ±25%
Power Consumption Maximum 7 W
Ingress Protection IP67, IK8
Material Plastic
IR Range Up to 130 ft (40 m)
Communication Up-the-Coax, Protocol: HIKVISION-C (TVI output)
Dimensions ?5.72" x 4.89" (?145.2 mm x 124.1 mm)
Weight Approximately 3.53 lbs (1.6 kg)
Approvals
c(UL)us Yes
CE Yes
FCC Yes
ONVIF Yes

Compatible Products

Compatible Mounts

CA-B1400-WH Wall Mounting Bracket with Junction Box for Varifocal Dome TVI Cameras - White

Compatible Baluns

VE-BNC-006 BNC Passive Video Extender - RJ45 (1000ft)
VE-BNC-009 BNC Balun - 1000ft Passive Video Extender - Push Button
VE-BNC-010 BNC Balun - 1000ft Passive Video Extender - Screw Down
VE-BNC-011 BNC + Power Balun - 1000ft Passive Video Extender - RJ45

Compatible DC Power Supplies

PDC-12V1A-01 DC Power Supply - Input 120V ~ 240V - Output 12V 1A - c(UL)us
PDC-12V5A-04 DC Power Supply 4CH - Input 120V ~ 240V - Output 12V 5A - c(UL)us
PDC-12V10A-09 DC Power Supply 9CH - Input 120V ~ 240V - Output 12V 10A - c(UL)us
PDC-12V18A-18 DC Power Supply 18CH - Input 120V ~ 240V - Output 12V 18A - c(UL)us

Compatible DC Power Connectors

CN-DCM-S DC Power Connector Male 2.1mm x 5.5mm Screw Down
CN-DCM DC Power Connector Male 2.1mm x 5.5mm Plastic Shell
CN-DCM-8IN DC Power Connector Male 2.1mm x 5.5mm (8 inch Pigtail, 22AWG)

Compatible BNC Connectors

CN-CBNCM-59-10 BNC Male Compression Connector for RG59 - Pack of 10
CN-CBNCM-59-10PL BNC Male Compression Connector for RG59 Plenum - Pack of 10
CN-30-734A BNC Male Crimp Connector for RG59 (734A)
CN-30-RG59P BNC Male Crimp Connector for RG59 Plenum Cable
CN-30-S BNC Male Screw Down Connector, 75 Ohm
CN-TBNC-59 BNC Male Twist-On Connector for RG59
