Overview

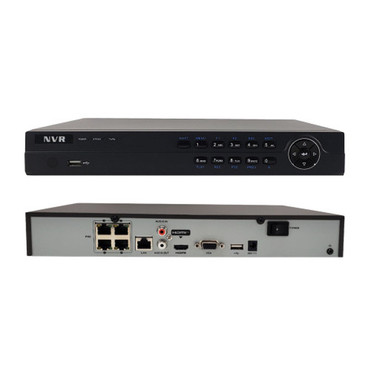

This 4 channel NVR is a network video recorder that can support up to 8MP IP cameras. It has 4 built in plug & play PoE ports to make set up simple and easy. With a space for one hard drive with capacity up to 6TB and can support H.265/H.264/MPEG4 video format compression to put less stress on storage and bandwidth usage. A local monitor can be connected either through the HDMI or VGA ports. (Hard drive sold separately).
NVR Features
- Third-party network cameras supported
- Up to 8 Megapixels resolution recording
- Support 1-ch HDMI, 1-ch VGA, HMDI at up to 4K(3840x2160) resolution
- 4-ch network cameras can be connected with 40M incoming bandwidth
- Support dual-os to ensure high reliability of system running
- Plug & Play with up to 4 independent PoE network interfaces
- Support various VCA detection alarm and VCA search
- Support H.265/H.264/MPEG4 video formats
Application
Specifications
|
Video/Audio Input and Output
|
| Two-way audio input |
1-ch, RCA (2.0 Vp-p, 1?) |
| IP video input |
4-ch |
| HDMI Output |
1-ch, resolution:4K (3840 x 2160)/30Hz,1920 x 1080/60Hz, 1600 x 1200/60Hz, 1280 x1024/60Hz, 1280 x 720/60Hz, 1024 x 768/60Hz |
| Recording Resolution |
8MP/6MP/5MP/4MP/3MP/1080p/UXGA/720p/VGA/4CIF/DCIF/2CIF/CIF/QCIF |
| Audio Output |
1-ch, RCA (Linear, 1?) |
| VGA Output |
1-ch, resolution: 1920*1080P/60Hz, 1280*1024/60Hz, 1280*720/60Hz, 1024*768/60Hz |
|
Network
|
Network Interface
|
1 RJ-45 10 / 100 Mbps self adaptive Ethernet interface |
POE Interface
|
4 independent 10 /100 Mbps PoE Ethernet interfaces |
| Incoming bandwidth |
40Mbps |
| Outgoing bandwidth |
80Mbps |
|
Decoding
|
| Capability |
4-ch@1080P |
| Live view / Playback |
8MP/6MP/5MP/3MP/1080p/UXGA/720p/VGA/4CIF/DCIF/2CIF/CIF/QCIF80Mbps |
|
Hard Disk and External Interface
|
SATA
|
1 SATA interface for 1 HDD
|
Capacity
|
Up to 6TB capacity for each HDD
|
USB Interface
|
2 x USB2.0
|
|
General
|
| Power Supply |
48 VDC |
| Consumption(without hard disk and POE) |
?10 W |
| Working Temperature |
-10°C ~ +55°C (+14°F~ + 131°F) |
| Working Humidity |
10 % ~ 90 % |
| Chassis |
315 mm chassis |
| Dimensions |
315 x 240 x 48 mm (12.4" x 9.4" x 1.9") |
| Weight(without HDD)Communication |
? 1 kg (2.2 lb) |
|
Approvals
|
| c(UL)us |
Yes
|
| FCC |
Yes
|
| CE |
Yes |
HDD Specs
This hard disk drive is engineered to work for surveillance security systems. It is designed for high temperature, always-on, surveillance security systems to ensure reliability and quality video playback.
HDD Features
- Engineered specifically for surveillance security systems
- Prioritized write-operations for maximized surveillance performance
- Tuned for write-intensive, low bit-rate, high stream-count applications typical to most surveillance applications
- Reduced video frame loss
- TLER and ATA streaming support
- Optimized performance for up to 32 high-definition surveillance cameras
|
Physical Characteristics
|
| Form Factor |
3.5 inch |
| Dimensions |
?5.7" x 4.0" x 1.0" (?147 x 102 x 26mm) |
| Operating Temperature |
0°C to 65°C |
| Non-Operating Temperature |
-40°C to 70°C |
|
Performance
|
| Formatted Capacity (Part Number) |
1TB (WD10PURX) |
2TB (WD20PURX) |
4TB (WD40PURX) |
6TB (WD62PURX) |
8TB (WD84PURZ) |
10TB (WD101PURP) |
| Cache |
64MB |
128MB |
256MB |
| Data Transfer Rate |
Buffer to Host - 6 GB/s
Host to/from drive (sustained) - 110 MB/s |
Buffer to Host - 6 GB/s
Host to/from drive (sustained) - 145 MB/s |
Buffer to Host - 6 GB/s
Host to/from drive (sustained) - 150 MB/s |
Buffer to Host - 6 GB/s
Host to/from drive (sustained) - 175 MB/s |
Buffer to Host - 6 GB/s
Host to/from drive (sustained) - 245 MB/s |
Buffer to Host - 6 GB/s
Host to/from drive (sustained) - 265 MB/s |
| Hard Disk Interface |
SATA |
| Rotational Speed (RPM) |
IntelliPower
|
| Load/Unload Cycles |
300,000 |
600,000 |
| Non-Recoverable Read Errors per Bits Read |
< 1 in 1014
|
< 1 in 1015
|
|
Power Management
|
| Average Power Requirements |
Read/Write - 3.3W
Idle - 2.9W
Standby and Sleep - 0.4W |
Read/Write - 4.4W
Idle - 4.1W
Standby and Sleep - 0.4W |
Read/Write - 5.1W
Idle - 4.5W
Standby and Sleep - 0.4W |
Read/Write - 5.3W
Idle - 4.9W
Standby and Sleep - 0.4W |
Read/Write - 8.6W
Idle - 7.4W
Standby and Sleep - 0.4W |
Read/Write - 9W
Idle - 8W
Standby and Sleep - 0.5W |
|
Approvals
|
| RoHS |
Yes |
|
Packaging Information
|
| Package Quantity |
1 |
| Product Weight |
0.99 lbs [0.45 kg] |
1.40 lbs [0.64 kg] |
1.50 lbs [0.68 kg] |
1.65 lbs [0.75 kg] |
1.58 lbs [0.72 kg] |
1.65 lbs [0.75 kg] |
Downloads
User Manual
Password Reset Instructions
Latest firmware V4.30.005_210226
Web Portal Remote Access
Register/login with your Guarding Vision account for access to all devices in your account remotely from the browser. Supports Internet Explorer 8+, Chrome 41.0 to 44, Firefox 30.0 to 51 and Safari 8.0 to 11
Guarding vision Android app
Supports Android 4.1 and up
Guarding vision iOS app
Supports iOS 8.0 or later. Compatible with iPhone, iPad and iPod touch
iVMS-4200 video management software for the DVRs, NVRs and IP cameras
Supports macOS version 10.12,10.13 and 10.14 (64-bit)
iVMS-4200 video management software for the DVRs, NVRs and IP cameras
Supports Microsoft Windows 7/Windows 8.1/Windows 10 (32-bit or 64-bit)/Windows XP SP3 (32-bit)/Windows 2008 R2/Windows Server 2012 (64-bit)
SADP Tool V3.1.0.8
Search, activate devices on the network and modify the basic network information
