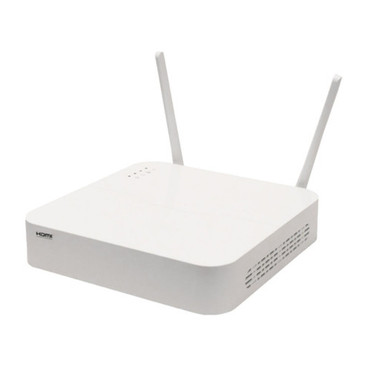

4-Channel Wireless NVR With 4x 2MP Wireless Cameras

Have questions?

  • Canadian distributor

    Proud Canadian business since 2007

  • IT experts available

    Consulting & Technicial services

  • Pre-configuration services

    From VoiP phone to Clustered servers

  • Delivering across Canada

    Shipping UPS Fedex & Purolator

Free Shipping*

Write a Review
MSRP: $627.95
$627.95
$564.95
Save: $63.00 (10.03%)
SKU: FN-SC-WIFI-KIT4-2MP
Weight: 6.85 LBS
Shipping: Calculated at Checkout
Adding to cart… The item has been added

Overview

This wireless camera kit includes 4-channel high-performance and high stability wireless NVR with 4 2MP 2.8mm fixed lens. Its maximum resolution is 1920 x 1080 at 30/25 fps and supports Ultra H.265 video compression technology, which assures savings in bandwidth and storage. Its housing is IP67 rated for outdoor use.

Features

NVR

  • Embedded WiFi Module with high-performance and high stability
  • Support CCMP encryption and WPA2-PSK authentication, Support IP cameras with WiFi in access
  • Support Ultra 265/H.265/H.264 video formats
  • 4-channel input
  • Support mainstream cameras of ONVIF conformance(Profile S, Profile G, Profile T ) and RTSP protocols
  • Support 1-ch HDMI, 1-ch VGA
  • HDMI and VGA synchronous outputs provided
  • Up to 1080P resolution recording
  • 1 SATA HDD, Up to 6TB for each HDD
  • Support cloud upgrade

Camera

  • High quality image with 2MP, 1/2.9"CMOS sensor
  • 2MP (1920*1080)@30/25fps; 720P (1280*720)@30/25fps
  • Ultra 265, H.265, H.264, MJPEG
  • Built-in Mic
  • Smart IR, up to 30m (98ft) IR distance
  • Supports 128 G Micro SD card
  • IP67 protection
  • 3-Axis

Specifications

NVR Specifications

Physical Characteristics
Dimensions 205mm × 205mm × 47mm (8.1" ×8.1"×1.7")
Operating Temperature -10°C to 55°C (14°F to 131°F);
Humidity 90% RH (non-condensing)
Power Supply 12V DC
Power Consumption ≤ 9 W( without HDD )
Video and Audio Input
IP Video Input 4-channel
Video and Audio Output
HDMI/VGA Output HDMI:
1920x1080p /60Hz, 1920x1080p /50Hz, 1600x1200 /60Hz, 1280x1024 /60Hz, 1280x720 /60Hz, 1024x768 /60Hz
VGA:
1920x1080p /60Hz, 1920x1080p /50Hz, 1600x1200 /60Hz, 1280x1024 /60Hz, 1280x720 /60Hz, 1024x768 /60Hz
Recording Resolution 1080P/960P/720P/D1/2CIF/CIF
Audio Output 1-ch, RCA
Audio Compression G.711A, G.711U
Synchronous Playback 4-channel
Liveview Display 1/4
Corridor Mode Screen 3/4
Network
Incoming Bandwidth 40Mbps
Outgoing Bandwidth 40Mbps
Remote Users 128
Protocols TCP/IP, P2P, UPnP, NTP, DHCP, PPPoE, HTTP, HTTPS, DNS, DDNS
Snapshot
Event Snapshot 1-ch snapshot, up to D1 resolution
Decoding
Decoding Format Ultra 265/H.265/H.264
Liveview/Playback 1080P/960P/720P/D1/2CIF/CIF
Capability 4 x 1080P@30
Hard Disk
SATA 1 SATA Interface
Capacity Up to 6TB for each HDD
General Alarm
Network Interface Motion, Tampering, Human Body Detection, Video Loss, Alarm Input
Alert Alarm IP Conflict, Network Disconnected, Disk Offline , Disk Abnormal, Illegal Access, Hard Disk Space Low, Hard Disk Full, Recording/Snapshot Abnormal
External Interface
Network Interface 1 RJ45 10M/100M self-adaptive Ethernet Interface
USB Interface Rear panel:2 x USB2.0
RS232, RS485, Alarm In, Alarm Out N/A
Wi-Fi
Frequency 2.4GHz
Transmission Rate 150Mbps
Wireless Standards IEEE 802.11b/g/n
Certification
Certification CE, FCC, UL, RoHS, WEEE
CE EN 55032: 2015, EN 61000-3-3: 2013, EN IEC 61000-3-2: 2019, EN 55035: 2017
FCC Part15 Subpart B, ANSI C63.4
NDAA Compliant Yes

Camera Specifications

Camera
Image Sensor 1/2.9", 2.0 megapixel, progressive scan, CMOS
Minimum Illumination Colour: 0.01 Lux (F2.0 AGC ON)
0 Lux with IR on
Day/Night IR-cut filter with auto switch (ICR)
Shutter Auto/Manual, 1 ~ 1/100000s
Adjustment Angle Pan: 0° to 360°, Tilt: 0° to 90°, Rotate: 0° to 360°
S/N >52dB
WDR DWDR
Lens
Lens Type 2.8mm @2.0, Fixed-focal
Lens Mount M12
Angle of View (H) 83.7°
Angle of View (V) 44.6°
Angle of View (O) 89.1°
DORI
DORI Distance Detect(m): 64.3
Observe(m): 25.7
Recognize(m): 12.9
Identify(m): 6.4
Illuminator
LED Distance(IR) Up to 30m (98ft)
Wavelength 850nm
LED On/Off Control Auto/Manual
Video
Video Compression Ultra 265, H.265, H.264, MJPEG
H.264 Code Profile Baseline profile, Main profile, High profile
Frame Rate Main Stream: 1080P (1920*1080), Max 30fps; 720P (1280*720), Max 30fps; Sub Stream: 720P (1280*720), Max 30fps; D1 (720*576), Max 30fps; 640*360,Max 30fps; 2CIF(704*288), Max 30fps; CIF(352*288), Max 30fps;
Video Bit Rate 128 Kbps~6 Mbps
OSD Up to 4 OSDs
Privacy Mask Up to 4 areas
ROI Up to 8 areas
Motion Detection Up to 4 areas
White Balance Auto/Outdoor/Fine Tune/Sodium Lamp/Locked/Auto2
Image Setting Image rotation, brightness, saturation, contrast, sharpness, gain adjustable by web browser
Digital Noise Reduction 2D/3D DNR
Smart IR Support
Flip Normal/Vertical/Horizontal/180°
Dewarping N/A
HLC Support
BLC Support
Defog Digital Defog
Intelligent
Smart Intrusion Prevention Support false alarm filtering: Cross Line detection, Intrusion detection, Enter Area detection, Leave Area detection
Statistical Analysis People counting, support people flow counting and crowd density monitoring
Events
Basic Detection Motion detection, Ultra motion detection, Tampering alarm, Audio detection
General Function
