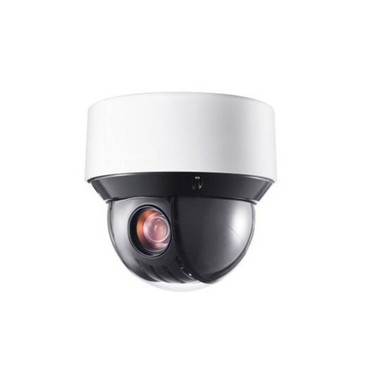

4MP PTZ IP Camera - 4.8~120mm - 25x Optical Zoom - Two-Way Audio - IP67 IK10 Rated - White
Have questions?
Proud Canadian team since 2007
Consulting & Technicians services
From VoiP phone to Cluster servers
Shipped Trough UPS & Purolator
Free Shipping*
Shipping Restrictions
Additional fees may apply for shipments to locations beyond normal service areas and heavy weight or oversize items.
This 4MP PTZ indoor/outdoor, IP based dome camera provides a sharp, high definition images in daylight or nighttime settings. The camera has a focal length of 4.8 mm to 120 mm lens with 25x optical zoom and 16x digital zoom which delivers 57.6° to 2.5° (Wide-Tele) horizontal field of view. Its maximum resolution is 2560 x 1440 and supports H.265+ video compression technology, which assures savings in bandwidth and storage. The camera is IP based with integrated PoE technology which makes for a quick and easy installation over a single CAT5e/CAT6 cable. Its housing is IP66 rated for outdoor use and has 164 feet of night vision using an IR cut filter and IR LEDs.
Features
|
The typical application for most security cameras networks is to connect the IP cameras to a NVR/DVR for simplified playback and additional storage space. Alternatively you can use an IP cameras as a standalone camera and not part of a network by connecting it directly to a POE switch and save the recording on a micro SD card.
NVR Setup
Camera
|
|
---|---|
Material | ADC12, PC, PC+ABS, SUS304, POM |
Image Sensor | 1/2.5" progressive scan CMOS |
Minimum Illumination | Color: 0.005 Lux @(F1.6, AGC ON) B/W: 0.001 Lux @(F1.6, AGC ON) 0 Lux with IR |
White Balance | Auto/Manual/ATW (Auto-tracking White Balance)/Indoor/Outdoor/Fluorescent Lamp/Sodium Lamp |
Shutter Time | 1/1 s to 1/30,000 s |
Day /Night | IR cut filter |
Digital Zoom | 16x |
Digital Noise Reduction | 3D DNR |
Privacy Mask | 24 programmable privacy masks |
WDR | 120dB |
Focus Mode |
Auto/Semi-automatic/Manual |
Lens
|
|
Focal Length | 4.8 mm to 120 mm, 25 optical zoom |
Zoom Speed |
Approx. 3.2 s (optical lens, wide-tele) |
FOV | Horizontal field of view: 57.6° to 2.5° (Wide-Tele) Vertical field of view: 34.4° to 1.4° (Wide-Tele) Diagonal field of view: 64.5° to 2.9° (Wide-Tele) |
Working Distance |
10 mm to 1500 mm (wide-tele) |
Aperture Range | F1.6 to F3.5 |
PTZ
|
|
Pan / Tilt Range | 360° endless / From -5° to 90° (auto-flip) |
Pan Speed |
Configurable, from 0.1°/s to 300°/s, Preset speed: 350°/s |
Tilt Speed |
Configurable, from 0.1°/s to 160°/s Preset Speed: 200°/s |
Proportional Zoom | Support |
Presets | 300 |
Park Action | Preset/Pattern Scan/Patrol Scan/Auto Scan/Tilt Scan/Random Scan/Frame Scan/Panorama Scan |
Power-off Memory | Support |
PTZ Position Display | Support |
Preset Freezing | Support |
IR
|
|
IR Range | Up to 164 ft (50 m) |
Smart IR |
Support |
Compression Standard
|
|
Video Compression | Main Stream: H.265+/H.265/H.264+/H.264 Sub-stream: H.265/H.264/MJPEG Third Stream: H.265/H.264/MJPEG |
H.264 Type | Baseline Profile/Main Profile/High Profile |
H.264+ | Support |
H.265 Type | Baseline Profile/Main Profile/High Profile |
H.265+ | Support |
Video Bit Rate | 32 Kbps to 16384 Kbps |
Audio Compression | G.711alaw/G.711ulaw/G.722.1/G.726/MP2L2/PCM |
Audio Bit rate | 64 Kbps (G.711)/16 Kbps (G.722.1)/16 Kbps (G.726)/32 Kbps to 160 Kbps(MP2L2) |
SVC | Support |
Smart Features
|
|
Basic Event |
Motion Detection, Video Tampering Detection, Alarm Input, Alarm Output, Exception |
Smart Event |
Audio Exception Detection, Face Detection, Intrusion Detection, Line Crossing Detection, Region Entrance Detection, Region Exiting Detection, Unattended Baggage Detection, Object Removal Detection |
Region of Interest | Main stream, sub-stream, and third stream respectively support two fixed areas |
Smart Record | ANR (Automatic Network Replenishment), Dual-VCA |
Alarm Trigger | Alarm actions, such as Memory Card Video Record, Trigger Recording, Notify Surveillance Center, Upload to FTP/Memory Card/NAS, Send Email, etc. |
Alarm Interface | 2-ch alarm input and 2-ch alarm output |
|
|
Maximum Resolution | 2560 1440 |
Main Stream | 50Hz: 25fps (2560 1440, 2048 1536, 1920 1080, 1280 960, 1280 720) 60Hz: 24fps (2560 1440), 30fps (2048 1536, 1920 1080, 1280 960, 1280 720) |
Sub-Stream | 50Hz: 25fps (704 576, 640 480, 352 288) 60Hz: 30fps (704 480, 640 480, 352 240) |
Third Stream | 50Hz: 25fps (1280 720, 704 576, 640 480, 352 288) 60Hz: 30fps (1280 720, 704 480, 640 480, 352 240) |
Image Enhancement | 3D DNR, HLC, BLC, EIS, Regional Exposure, Regional Focus |
Network
|
|
Network Storage | Built-in memory card slot, support Micro SD/SDHC/SDXC, up to 256 GB; NAS (NPS, SMB/CIPS), ANR |
Protocols | IPv4/IPv6, HTTP, HTTPS, 802.1x, Qos, FTP, SMTP, UPnP, SNMP, DNS, DDNS, NTP, RTSP, RTCP, RTP, TCP/IP, UDP, IGMP, ICMP, DHCP, PPPoE, Bonjour |
General Function | One-key reset, anti-flicker, three streams, heartbeat, mirror, password protection, privacy mask, watermark, IP address filter |
API | Open-ended, support ONVIF, ISAPI, support SDK and Third-Party Management Platform |
Security Measures | User authentication (ID and PW), Host authentication (MAC address); HTTPS encryption; IEEE 802.1x port-based network access control; IP address filtering |
Simultaneous Live View | Up to 20 channels |
User / Host | Up to 32 users; three levels: administrator, operator, and user |
Client | iVMS-4200, Guarding Vision |
Web Browser | IE 8 to 11, Chrome 31.0 to 44, Firefox 30.0 to 51, Safari 8.0+ |
Interface
|
|
Communication Interface | 1-port RJ-45 10M/100M Ethernet interface; PoE+ (802.3 at, class4) |
On-board storage | Built-in microSD/SDHC/SDXC slot, up to 256 GB; NAS (NPS, SMB / CIPS), ANR |
SVC | H.264 and H.265 encoding |
Audio Interface |
1-ch audio input and 1-ch audio output |
General
|
|
Operating Conditions | -30°C to 65°C (-22°F to 149°F); humidity: 90% or less (non-condensing) |
Power | 12 VDC & PoE+ (803.2 at, class4); Max.: 18 W (Max. 5 W for IR) |
Protection Level | IP66 Standard, IK10, TVS 4000V Lightning Protection, Surge Protection and Voltage Transient Protection |
Material | Aluminum alloy, PC, PC+ABS |
Dimensions | Camera: 6.65" x 6.34" ( 169 mm x 161 mm) |
Weight | Camera: 5.40 lbs (2.45 kg) |
Approvals
|
|
c(UL)us | Yes |
CE | Yes |
FCC | Yes |
ONVIF | Yes |
CA-DS-1280ZJ-SD11 |
Junction Box Mounting Bracket for PTZ Dome Camera - White |
Data Sheet
RJ45 pin out diagram
Web Portal Remote Access
Register/login with your Guarding Vision account for access to all devices in your account remotely from the browser. Supports Internet Explorer 8+, Chrome 41.0 to 44, Firefox 30.0 to 51 and Safari 8.0 to 11
Guarding vision Android app
Supports Android 4.1 and up
Guarding vision iOS app
Supports iOS 8.0 or later. Compatible with iPhone, iPad and iPod touch
iVMS-4200 video management software for the DVRs, NVRs and IP cameras
Supports macOS version 10.12,10.13 and 10.14 (64-bit)
iVMS-4200 video management software for the DVRs, NVRs and IP cameras
Supports Microsoft Windows 7/Windows 8.1/Windows 10 (32-bit or 64-bit)/Windows XP SP3 (32-bit)/Windows 2008 R2/Windows Server 2012 (64-bit)
SADP Tool V3.1.0.8
Search, activate devices on the network and modify the basic network information
