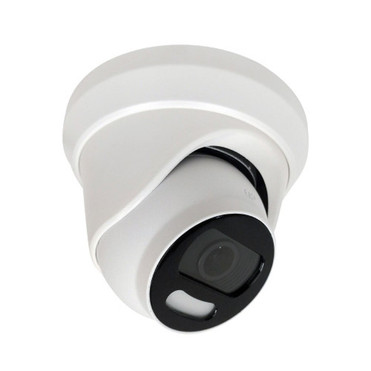

5MP Turret TVI, CVI, AHD, CVBS Camera - 2.8mm Fixed Lens - Color Night Vision - IP67 Rated - White
5MP Turret TVI, CVI, AHD, CVBS Camera - 2.8mm Fixed Lens - Color Night Vision - IP67 Rated - White

Have questions?

1-844-836-8268

Ask an Experts

  • Canadian Distributor

    Proud Canadian team since 2007

  • IT experts available

    Consulting & Technicians services

  • Configuration services available

    From VoiP phone to Cluster servers

  • Fast Delivery

    Shipped Trough UPS & Purolator

5MP Turret TVI, CVI, AHD, CVBS Camera - 2.8mm Fixed Lens - Color Night Vision - IP67 Rated - White

(No reviews) Write a Review
$97.04
$97.00
SKU: FN-CA-AC346-FDF-2WH
Weight: 0.77 LBS
Adding to cart… The item has been added

Overview

This 5MP color night vision, indoor/outdoor, TVI based turret camera features maximum light gathering capability to provide full color imaging in extremely dark settings. The camera comes with a 2.8mm fixed lens which delivers a 99.7° horizontal field of view. Its maximum resolution is 2560 x 1944. Using TurboHD technology, the high definition video analog signal can be sent over existing coaxial cable, eliminating the need to run new cables. Its housing is IP67 rated for outdoor use.

Features

  • 24/7 Full Time Color
  • 5MP High Performance CMOS Sensor
  • Up to 2560 x 1944 Resolution
  • 2.8 mm Fixed Lens
  • 3D DNR, OSD Menu (Up the Coax)
  • Up to 65 ft (20 m) White Light Range
  • 130 dB True WDR
  • Multiprotocol Output: TVI/AHD/CVI/CVBS
  • IP67

Application

Specifications

Camera
Image Sensor 5.0 MP CMOS image sensor
Signal System NTSC
Frame Rate TVI: 5 MP @ 20 fps, 4 MP @ 30 fps, 4 MP @ 25 fps, 1080p @ 30 fps, 1080p @ 25 fps
CVI: 4 MP @ 30 fps, 4 MP @ 25 fps
AHD: 5 MP @ 20 fps, 4 MP @ 30 fps, 4 MP @ 25 fps
CVBS: NTSC
Resolution 2560 (H) x 1944 (V)
Minimum Illumination Color: 0.0005 lux @ (ƒ/1.0, AGC on), 0 lux with white light
Shutter Time 1/30 s to 1/50,000 s
Lens 2.8 mm fixed focal lens
Field of View Horizontal FOV: 99.7°, vertical FOV: 72°, diagonal FOV: 139.8°
Lens Mount M16
Strobe Light Alarm Yes
Day and Night Color
Angle Adjustment Pan: 0° to 360°, Tilt: 0° to 75°, Rotate: 0° to 360°
WDR
 130 dB
Menu
White Light Auto/off
Image Mode STD/HIGH SAT
AGC Supported
Day and Night Mode Color
White Balance Auto/manual
Auto Exposure Mode WDR/BLC/HLC/Global/ HLS/Anti-Banding
Motion Detection
 4 programmable areas
Noise Reduction
 3D DNR
Language English
Functions Brightness, sharpness, mirror, smart light
Interface
Video Output 1 HD analog output
Switch Button TVI/AHD/CVI/CVBS
General
Operating Conditions -40° F to 140° F (-40° C to 60° C), humidity: 90% or less (non-condensation)
Power Supply 12 VDC ± 25%
Power Consumption Maximum 3.5 W
Ingress Protection IP67
Material Enclosure: Plastic
Main Body: Metal
White Light Range
 Up to 65 ft (20 m)
Communication Up the coax, Protocol: UTC-C (TVI output)
Dimensions ˜4.32" x 3.37" (˜109.82 mm x 85.56 mm)
Weight Approximately 0.77 lbs (350 g)
Approvals
c(UL)us Yes
CE Yes
FCC Yes
ONVIF Yes

Compatible Products

Compatible Mounts

CA-B2100-WH Wall Mounting Bracket with Junction Box for Turret Cameras - White
CA-DS-1273ZJ-130-TRL-WH Wall Mounting Bracket for Turret Cameras - White
CA-DS-1280ZJ-DM8-WH Junction Box Mounting Bracket for Turret Cameras - White
CA-DS-1280ZJ-DM8-GY Junction Box Mounting Bracket for Turret Cameras - Grey
CA-DS-1272ZJ-110-TRS-WH Wall Mounting Bracket for Turret Camera - White

Compatible Baluns

VE-BNC-006 BNC Passive Video Extender - RJ45 (1000ft)
VE-BNC-009 BNC Balun - 1000ft Passive Video Extender - Push Button
VE-BNC-010 BNC Balun - 1000ft Passive Video Extender - Screw Down
VE-BNC-011 BNC + Power Balun - 1000ft Passive Video Extender - RJ45

Compatible DC Power Supplies

PDC-12V1A-01 DC Power Supply - Input 120V ~ 240V - Output 12V 1A - c(UL)us
PDC-12V5A-04 DC Power Supply 4CH - Input 120V ~ 240V - Output 12V 5A - c(UL)us
PDC-12V10A-09 DC Power Supply 9CH - Input 120V ~ 240V - Output 12V 10A - c(UL)us
PDC-12V18A-18 DC Power Supply 18CH - Input 120V ~ 240V - Output 12V 18A - c(UL)us

Compatible DC Power Connectors

CN-DCM-S DC Power Connector Male 2.1mm x 5.5mm Screw Down
CN-DCM DC Power Connector Male 2.1mm x 5.5mm Plastic Shell
CN-DCM-8IN DC Power Connector Male 2.1mm x 5.5mm (8 inch Pigtail, 22AWG)

Compatible BNC Connectors

CN-CBNCM-59-10 BNC Male Compression Connector for RG59 - Pack of 10
CN-CBNCM-59-10PL BNC Male Compression Connector for RG59 Plenum - Pack of 10
CN-30-734A BNC Male Crimp Connector for RG59 (734A)
CN-30-RG59P BNC Male Crimp Connector for RG59 Plenum Cable
CN-30-S BNC Male Screw Down Connector, 75 Ohm
CN-TBNC-59 BNC Male Twist-On Connector for RG59
