10ft Hospital Grade 6-20P to C19 Power Cable 12AWG SJT (250V 20A) (FN-PW-H141-10)
Have questions?
Proud Canadian team since 2007
Consulting & Technicians services
From VoiP phone to Cluster servers
Shipped Trough UPS & Purolator

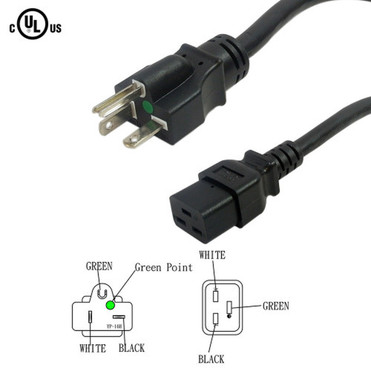

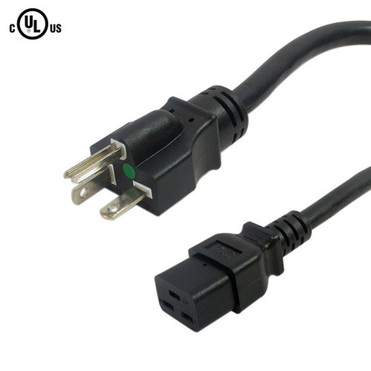

This power cord consists of a 6-20P hospital grade male on one end and a C19 female on the other end. It is typically used to connect hospital equipment to a wall outlet. These cables are constructed with UL mandated inner plastic frame molds to enhance terminal alignment and produce a high quality connector. The connectors premium quality ensures a snug fit with receptacles. Each assembly is 100% continuity tested and 100% HVT (High Voltage) tested and inspected before shipping.
Physical Characteristics | |
---|---|
Cable Length | 6 foot [1.8m] |
Color | Black |
Number of Conductors | 3 Conductor |
Wire Gauge | 12 AWG |
Jacket | Heavy Duty SJT |
Jacket Material | 100% Virgin PVC - Polyvinyl Chloride |
Jacket Fire Rating | FT2 |
Strain Relief | Molded 100% Virgin PVC |
Temperature Rating | -20 deg C to 105 deg C |
Connector(s) | |
Connector A | IEC 60320 C19 |
Connector B | NEMA 6-20P Hospital Grade |
Performance | |
Power Rating | 20 Amp / 250 Volt |
Approvals | |
C19 | (UL) |
6-20P | (UL) |
Cable | c(UL)us, CSA |
ISO | ISO 9001:2000, ISO 14000 |
Environmental | |
RoHS | Yes |
Reach | Yes |
Conflict Minerals | Yes |
Packaging Information | |
Package Quantity | 1 |
Product Weight | 1.03 lbs [0.46kg] |
Warranty Information | |
Warranty | Limited Lifetime |
