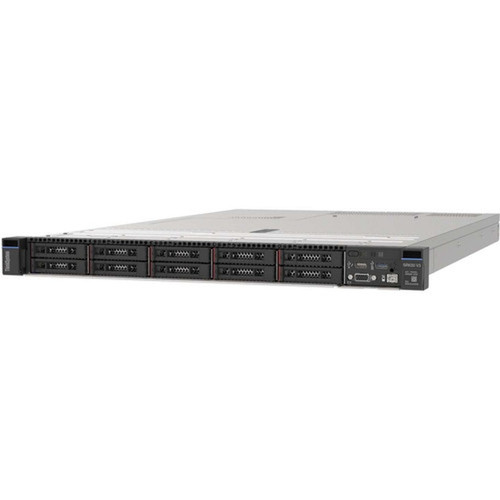

Lenovo ThinkSystem SR630 Rack Server Single Xeon Silver 2.60 GHz 32 GB RAM Serial ATA 600 Controller Intel ATA/600 7D73A05LNA
Write a Review
Lenovo
Lenovo ThinkSystem SR630 Rack Server Single Xeon Silver 2.60 GHz 32 GB RAM Serial ATA 600 Controller Intel ATA/600 7D73A05LNA
B2B Pricing
Business volume discounts
IT Experts
Technical guidance
IT Configuration
Preparation & staging
Canada Stock
QC · ON · AB · BC
- Whether you are a lefty or a righty, the symmetrically shaped mouse suits both
- USB Type A connectivity for a easy connection
- Optical LED for smoother movement and hassle-free performance
- ThinkSystem SR630 V3 7D73A05LNA Server

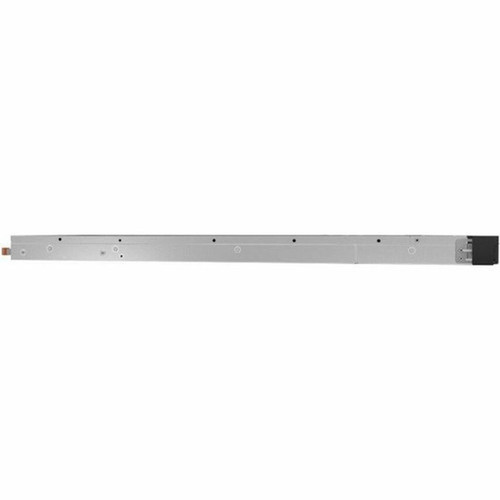

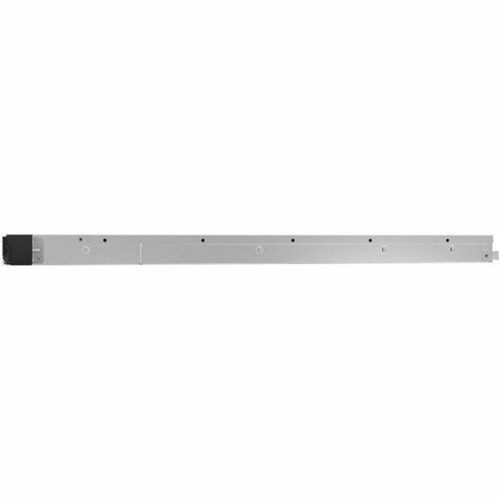

- Toolless Slide Rail Kit
- Chassis intrusion switch
- Power-on password
- Administrator's password
- Root of Trust module supporting TPM 2.0
- Platform Firmware Resiliency (PFR)
Number of Processors Supported: 2
Number of Processors Installed: 1
Processor Type: Xeon Silver
Processor Generation: 5th Gen
Processor Model: 4509Y
Processor Core: Octa-core (8 Core)
Processor Speed: 2.60 GHz
Cache: 22.50 MB
Chipset Manufacturer: Intel
Chipset Model: C741
Standard Memory: 32 GB
Maximum Memory Supported: 8 TB
Memory Technology: TruDDR5
Memory Clock Speed: 4.40 GHz
Total Number of Memory Slots: 32
Number of Occupied Memory Slots: 1
Intel Optane Memory Ready: No
Error Checking: ECC
Signal Processing: Registered (Buffered)
Controller Type: Serial ATA/600
Controller Model: 940-8i
RAID Supported: Yes
RAID Levels: 0, 1, 5, 10, JBOD
Number of Total Expansion Bays: 8
Number of Internal 2.5" Bays: 8
Number of SFF Bays: 8
Hot Swappable Bays: Yes
Total Number of Expansion Slots: 2
PCI Express Details: 2x LP Gen5
Graphics Memory Capacity: 16 MB
Total Number of USB Ports: 6
Number of USB 2.0 Ports: 1
Network (RJ-45): Yes
VGA: Yes
Remote Management: Yes
Remote Management Controller: XClarity Controller (XCC) Standard
Operating System Supported: Windows Server 2019,Windows Server 2022,Red Hat Enterprise Linux 8.6,Red Hat Enterprise Linux 8.7,Red Hat Enterprise Linux 8.8,Red Hat Enterprise Linux 8.9,Red Hat Enterprise Linux 8.10,Red Hat Enterprise Linux 9.0,Red Hat Enterprise Linux 9.1,Red Hat Enterprise Linux 9.2,Red Hat Enterprise Linux 9.3,Red Hat Enterprise Linux 9.4,SUSE Linux Enterprise Server 15 SP4,SUSE Linux Enterprise Server 15 SP5,Ubuntu 22.04 LTS x64
Input Voltage: 120 V AC,230 V AC
Number of Power Supplies Supported: 2
Number of Power Supplies Installed: 1
Plug/Connector Type: C13
Maximum Power Supply Wattage: 750 W
Hot Swappable Power Supply: Yes
Package Contents:
Security Features:
Energy Star: Yes
Environmentally Friendly: Yes
Environmental Certification: China Environmental Labeling Program (CELP),Electronic Product Environmental Assessment Tool Bronze (EPEAT Bronze),GREENGUARD
Energy Efficiency Certification: China Energy Conservation Program (CECP),ENERGY STAR 4.0
Energy Efficiency Compliance: Energy-related Products Directive Lot 9 (ErP Lot 9)
Environmental Compliance: Restriction of Hazardous Substances (RoHS)
Form Factor: Rack
Rack Height: 1U
Height: 1.70" (43.18 mm)
Width: 17.30" (439.42 mm)
Depth: 30.40" (772.16 mm)
Weight (Approximate): 45.86 lb (20800 g)
Limited Warranty: 3 Year
Additional Warranty Information:
Three-year customer-replaceable unit and onsite limited warranty with 9x5 next business day (NBD).
- With 32 GB memory, improve system performance to execute complex applications
- RAID provides data reliability, fault tolerance and improves overall performance
- 1 x 750 W power supply unit (PSU) for your system's power requirements
[custom-specifications]
| Specifications | |
| Manufacturer | Lenovo Group Limited |
| Manufacturer Part Number | 7D73A05LNA |
| Manufacturer Website Address | http://www.lenovo.com |
| Brand Name | Lenovo |
| Product Line | ThinkSystem |
| Product Series | SR630 V3 |
| Product Model | 7D73A05LNA |
| Product Name | ThinkSystem SR630 V3 7D73A05LNA Server |
| Product Type | Server |
| Processor | |
| Number of Processors Supported | 2 |
| Number of Processors Installed | 1 |
| Processor Type | Xeon Silver |
| Processor Generation | 5th Gen |
| Processor Model | 4509Y |
| Processor Core | Octa-core (8 Core) |
| Processor Speed | 2.60 GHz |
| Cache | 22.50 MB |
| Chipset | |
| Chipset Manufacturer | Intel |
| Chipset Model | C741 |
| Memory | |
| Standard Memory | 32 GB |
| Maximum Memory Supported | 8 TB |
| Memory Technology | TruDDR5 |
| Memory Clock Speed | 4.40 GHz |
| Total Number of Memory Slots | 32 |
| Number of Occupied Memory Slots | 1 |
| Intel Optane Memory Ready | No |
| Error Checking | ECC |
| Signal Processing | Registered (Buffered) |
| Controllers | |
| Controller Type | Serial ATA/600 |
| Controller Model | 940-8i |
| RAID Supported | Yes |
| RAID Levels | 0, 1, 5, 10, JBOD |
| I/O Expansions | |
| Number of Total Expansion Bays | 8 |
| Number of Internal 2.5" Bays | 8 |
| Number of SFF Bays | 8 |
| Hot Swappable Bays | Yes |
| Total Number of Expansion Slots | 2 |
| PCI Express Details | 2x LP Gen5 |
| Display & Graphics | |
| Graphics Memory Capacity | 16 MB |
| Interfaces/Ports | |
| Total Number of USB Ports | 6 |
| Number of USB 2.0 Ports | 1 |
| Network (RJ-45) | Yes |
| VGA | Yes |
| Remote Management | Yes |
| Remote Management Controller | XClarity Controller (XCC) Standard |
| Operating System | |
| Operating System Supported | Windows Server 2019,Windows Server 2022,Red Hat Enterprise Linux 8.6,Red Hat Enterprise Linux 8.7,Red Hat Enterprise Linux 8.8,Red Hat Enterprise Linux 8.9,Red Hat Enterprise Linux 8.10,Red Hat Enterprise Linux 9.0,Red Hat Enterprise Linux 9.1,Red Hat Enterprise Linux 9.2,Red Hat Enterprise Linux 9.3,Red Hat Enterprise Linux 9.4,SUSE Linux Enterprise Server 15 SP4,SUSE Linux Enterprise Server 15 SP5,Ubuntu 22.04 LTS x64 |
| Power Description | |
| Input Voltage | 120 V AC,230 V AC |
| Number of Power Supplies Supported | 2 |
| Number of Power Supplies Installed | 1 |
| Plug/Connector Type | C13 |
| Maximum Power Supply Wattage | 750 W |
| Hot Swappable Power Supply | Yes |
| Miscellaneous | |
| Package Contents |
|
| Security Features |
|
| Energy Star | Yes |
| Environmentally Friendly | Yes |
| Environmental Certification | China Environmental Labeling Program (CELP),Electronic Product Environmental Assessment Tool Bronze (EPEAT Bronze),GREENGUARD |
| Energy Efficiency Certification | China Energy Conservation Program (CECP),ENERGY STAR 4.0 |
| Energy Efficiency Compliance | Energy-related Products Directive Lot 9 (ErP Lot 9) |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS) |
| Physical Characteristics | |
| Form Factor | Rack |
| Rack Height | 1U |
| Height | 1.70" (43.18 mm) |
| Width | 17.30" (439.42 mm) |
| Depth | 30.40" (772.16 mm) |
| Weight (Approximate) | 45.86 lb (20800 g) |
| Warranty | |
| Limited Warranty | 3 Year |
| Additional Warranty Information | Three-year customer-replaceable unit and onsite limited warranty with 9x5 next business day (NBD). |
[/custom-specifications]
[custom-options]
| Product | Lenovo 16 TB Hard Drive - 3.5" - SATA (SATA/600) - Server Device Supported - 7200rpm - Hot Swappable - 512e Format |
| SKU | 4XB7A13914 |
| Sale Price | $1754.05 |
| Product | Lenovo 2 TB Hard Drive - 3.5" Internal - SATA (SATA/600) - 7200rpm - Hot Swappable |
| SKU | 7XB7A00050 |
| Sale Price | $443.18 |
| Product | Lenovo ThinkSystem Broadcom 57508 100GbE QSFP56 2-Port OCP Ethernet Adapter - Broadcom 57508 - 2 Port(s) - Optical Fiber - OCP Bracket Height - QSFP56 |
| SKU | 4XC7A08243 |
| Sale Price | $2140.49 |
| Product | Lenovo ThinkSystem V3 Management NIC Adapter Kit |
| SKU | 4XC7A85319 |
| Sale Price | $167.40 |
[/custom-options]
[custom-user-manual]
Available Documentation:
User-Manual
Manufacturer-Brochure
Additional-pdf1
Additional-pdf2
[/custom-user-manual]
Warranty Information
3 Year| Qty | Price | Available |
|---|
