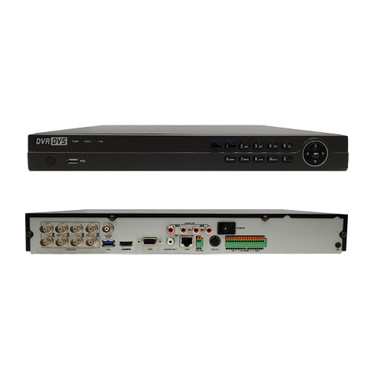

This DVR can support a maximum of 8 analog channels or a maximum of 16 IP channels for a total of 16 cameras in any combination (when Enhanced IP Mode is enabled). The analog cameras connect directly to the DVR and can support AHD, CVI and CVBS surveillance camera formats. IP cameras can be connected through a PoE switch only. Long distance transmission is supported over UTP and coaxial cables. The DVR can output video simultaneously using the HDMI and VGA ports. (Hard drive sold separately).
Features
Physical Characteristics
|
|
---|---|
Dimensions | ¬ 12.4" x 9.5" x 1.8" (¬ 315 x 242 x 45mm) |
Operating Temperature | -10°C to 55°C (14°F to 131°F); Humidity 10% to 90% |
Power Supply | 12V DC |
Power Consumption | °¤ 20W(without hard disks) |
Video and Audio
|
|
HDMI/VGA Output | HDMI: 1-channel, 4K (3840 2160)/30Hz, 2K (2560 1440)/60Hz, 1920 1080/60Hz, 1280 1024/60Hz, 1280 720/60Hz, 1024 768/60Hz VGA: 1-channel, 1920 1080/60Hz, 1280 1024/60Hz, 1280 720/60Hz, 1024 768/60Hz |
CVBS Output | 1-channel, BNC (1.0 Vp-p, 75?), PAL Resolution: 704 x 576 NTSC Resolution: 704 x 480 |
Recording Resolution | 8 MP/5 MP/4 MP/3 MP/1080p/720p/WD1/4CIF/VGA/CIF |
Frame Rate | Main stream: 8 MP@8fps/5 MP@12fps/4 MP@15fps/3 MP@18fps 1080p/720p/WD1/4CIF/VGA/CIF@25fps (P)/30fps (N) Sub stream: WD1/4CIF/CIF@25fps (P)/30fps (N) |
Video Compression | H.265 Pro+ / H.265 Pro / H.265 / H.264+ / H.264 |
Analog Video Input | 4-channel, BNC interface (1.0Vp-p. 75?) connection, Supporting Coaxiton Connection |
Supported Camera Types | Support HDTVI input: 8 MP, 5 MP, 4 MP, 3 MP, 1080p30, 1080p25, 720p60, 720p50, 720p30, 720p25 Support AHD input: 5 MP, 4 MP, 1080p25, 1080p30, 720p25, 720p30 Support HDCVI input: 4 MP, 1080p25, 1080p30, 720p25, 720p30 Support CVBS input: PAL/NTSC |
Video Input Interface | BNC (1.0 Vp-p, 75?) |
Video Bit Rate | 32 Kbps-10 Mbps |
Stream Type | Video / Video & Audio |
Audio Input |
4-channel, RCA (Vp-p, 1 K?) |
Audio Output |
1-channel, RCA (Linear, 1?) |
Audio Compression |
G.711u |
Audio Input Interface |
4-channel, RCA (2.0 Vp-p, 1 ?) |
Audio Bit Rate |
64kbps |
Two-way Audio |
1-channel, RCA (2.0 Vp-p 1 ?) - Using the 1st channel of audio input |
Dual Stream |
Support |
Synchronous Playback |
8-channel |
Network Management
|
|
Remote Connections | 64 |
Network Protocols | TCP/IP, PPPoE, DHCP, DNS, DDNS, Guarding Vision, NTP, SADP, NFS, iSCSI, UPnP¢, HTTPS, ONVIF |
Hard Disk Driver
|
|
Interface Type | 2 SATA Interface |
Capacity | Up to 10TB capacity for each disk |
External Interface
|
|
Network Interface | 1; RJ45 10M/100M/1000M self-adaptive Ethernet interface |
USB Interface | Front panel: 1 x USB 2.0 Rear panel: 1 x USB 3.0 |
Serial Interface | 1 standard RS-485 serial interface, half-duplex |
Alarm In/Out | 8/4 |
Approvals
|
|
RoHS | Yes |
c(UL)us | Yes |
FCC | Yes |
CE | Yes |
Packaging Information
|
|
Package Quantity | 1 |
Product Weight | 3.9 lbs [1.78 kg] |
This hard disk drive is engineered to work for surveillance security systems. It is designed for high temperature, always-on, surveillance security systems to ensure reliability and quality video playback.
Features
Physical Characteristics
|
|||||||
---|---|---|---|---|---|---|---|
Form Factor | 3.5 inch | ||||||
Dimensions | ¦ 5.7" x 4.0" x 1.0" (¦ 147 x 102 x 26mm) | ||||||
Operating Temperature | 0°C to 65°C | ||||||
Non-Operating Temperature | -40°C to 70°C | ||||||
Performance
|
|||||||
Formatted Capacity (Part Number) | 1TB (WD10PURX) | 2TB (WD20PURX) | 4TB (WD40PURX) | 6TB (WD62PURX) | 8TB (WD84PURZ) | 10TB (WD101PURP) | |
Cache | 64MB | 128MB | 256MB | ||||
Data Transfer Rate | Buffer to Host - 6 GB/s Host to/from drive (sustained) - 110 MB/s |
Buffer to Host - 6 GB/s Host to/from drive (sustained) - 145 MB/s |
Buffer to Host - 6 GB/s Host to/from drive (sustained) - 150 MB/s |
Buffer to Host - 6 GB/s Host to/from drive (sustained) - 175 MB/s |
Buffer to Host - 6 GB/s Host to/from drive (sustained) - 245 MB/s |
Buffer to Host - 6 GB/s Host to/from drive (sustained) - 265 MB/s |
|
Hard Disk Interface | SATA | ||||||
Rotational Speed (RPM) | IntelliPowerTM | ||||||
Load/Unload Cycles | 300,000 | 600,000 | |||||
Non-Recoverable Read Errors per Bits Read | < 1 in 1014 | < 1 in 1015 | |||||
Power Management
|
|||||||
Average Power Requirements | Read/Write - 3.3W Idle - 2.9W Standby and Sleep - 0.4W |
Read/Write - 4.4W Idle - 4.1W Standby and Sleep - 0.4W |
Read/Write - 5.1W Idle - 4.5W Standby and Sleep - 0.4W |
Read/Write - 5.3W Idle - 4.9W Standby and Sleep - 0.4W |
Read/Write - 8.6W Idle - 7.4W Standby and Sleep - 0.4W |
Read/Write - 9W Idle - 8W Standby and Sleep - 0.5W |
|
Approvals
|
|||||||
RoHS | Yes | ||||||
Packaging Information
|
|||||||
Package Quantity | 1 | ||||||
Product Weight | 0.99 lbs [0.45 kg] | 1.40 lbs [0.64 kg] | 1.50 lbs [0.68 kg] | 1.65 lbs [0.75 kg] | 1.58 lbs [0.72 kg] | 1.65 lbs [0.75 kg] |
How to Increase Maximum IP Cameras on DVR
Latest firmware V4.21.100_200925
Web Portal Remote Access
Register/login with your Guarding Vision account for access to all devices in your account remotely from the browser. Supports Internet Explorer 8+, Chrome 41.0 to 44, Firefox 30.0 to 51 and Safari 8.0 to 11
Guarding vision Android app
Supports Android 4.1 and up
Guarding vision iOS app
Supports iOS 8.0 or later. Compatible with iPhone, iPad and iPod touch
iVMS-4200 video management software for the DVRs, NVRs and IP cameras
Supports macOS version 10.12,10.13 and 10.14 (64-bit)
iVMS-4200 video management software for the DVRs, NVRs and IP cameras
Supports Microsoft Windows 7/Windows 8.1/Windows 10 (32-bit or 64-bit)/Windows XP SP3 (32-bit)/Windows 2008 R2/Windows Server 2012 (64-bit)
SADP Tool V3.1.0.8
Search, activate devices on the network and modify the basic network information
