Overview
This is a 8+2-port gigabit Ethernet switch, providing 8x 10/100/1000Mbps PoE+ ports, and two RJ45 uplink ports. The switch provides power and network to PoE+ compatible devices such as access points, CCTV cameras, voice over IP phone, etc., eliminating the need to power the devices separately.
Features
- 8 x 10/100/1000M unmanaged PoE+ ports - IEEE802.3af/at
- Ports 1-8 supports IEEE802.3af/at - Max. 30W
- 2 x RJ45 Gigabit Uplink Ports
- Power Budget: 120W
- Support auto MDI/MDIX
- Network Topology: Star/Bus/Tree Topology
- Solid high-strength metal shell
Application
Specifications
|
Physical Characteristics
|
| Dimensions |
270 x 44 x 181 mm |
| Shell |
Metal Material, Fan-Free Design |
| Operating Temperature |
-10°C to 50°C |
| Storage Temperature |
-40°C to 70°C |
Operating Humidity /
Storage Humidity |
10% to 90% (no condensation) |
| Thermal Method |
Natural cooling |
| Power Supply |
100 - 240 VAC ~ 50/60Hz |
| Total Power Consumption |
?150W |
| Main Board Power |
<6W |
| Ports |
8 x Gigabit PoE+ ports
2 x Gigabit RJ45 port - Uplink
|
| Port Type |
RJ45 port, Full duplex, MDI/MDI-X adaptive |
| PoE Power Supply |
PoE Standard: IEEE 802.3af, IEEE 802.3at
PoE Power Pin: Support 4-core power supply, and Ethernet cable 1/2+/3/6- provide power supply.
PoE Port: Ports 1 to 8
PoE Output: 52V/0.6A Max.
Maximum Port Power: 30 W
PoE Power Budget: 120 W
|
| Cable Type |
Twisted-pair: 0-100m |
| Network Topology |
Ring Topology: Not Support
Star/ Bus/ Tree Topology: Support
|
|
Performance
|
| Network Standard |
IEEE 802.3, IEEE 802.3u, IEEE 802.3x, IEEE 802.3ab, IEEE 802.3z |
| MAC Address Table |
4K |
| Forwarding Delay |
<10us |
| Transfer Mode |
Store-and-forward switching |
| Switching Capacity |
20 Gbps |
| Packet Forwarding Rate |
14.88 Mpps |
| MDI/MDIX |
Support |
| Jumbo Frame |
9Kbytes |
| Internal Cache/ Buffer |
2 Mbits |
| MTBF |
100000 hours |
| Surge protection of Ethernet port |
IEC 61000-4-5 Level 4 (6/2KV) (10/700us) |
| DIP |
IEC 61000-4-11 Level 3 (10V) |
| ESD |
IEC 61000-4-2 Level 4 (8K/15K) |
| Free Fall |
0.5m |
|
Approval
|
c(ETL)us
|
Yes |
|
Environmental
|
| RoHS |
Yes |
| FCC, CE |
Yes |
|
Packaging Information
|
| Package Quantity |
1x Ethernet Switch

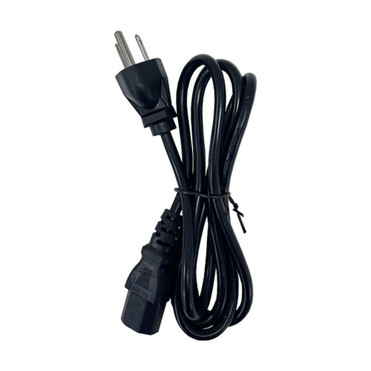

1x 5ft power cord
1x Manual
|
| Product Weight |
2.8 lbs |
