This KVM switch enables you to control eight PCs with one PS/2 keyboard, PS/2 mouse and VGA monitor.
- Easy to install - No software required
- Superior video quality - Up to 1920 x 1440, DDC, DDC2, DDC2B, DDC2AB, 200MHz
- Supports selecting PC by mouse clicking
- Real mouse identification function
- 3 ways for PC selection - Push-button switch, hot key or mouse clicking
- Hot Pluggable
- Integral keyboard and mouse emulation for PC booting error free
- Auto scan function to monitor PCs
- Auto skips over the power-off PC
- Supports the Windows, Linux and Macintosh
- Beep sound and multi selection ways on/off option for port selection
- 1U rack design
Physical Characteristics |
|---|
| Color | Silver |
| Housing | Metal Enclosure |
Connector(s) |
|---|

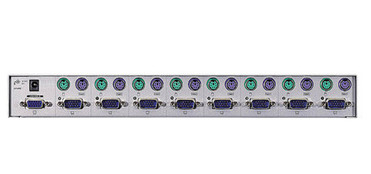

| CPU Port | 8 x 6 pin mini-DIN Female (PS/2 Mouse)
8 x 6 pin mini-DIN Female (PS/2 Keyboard)
8 x HD-15 Male (VGA/SVGA) |
| Console Port | 1 x 6 pin mini-DIN Female (PS/2 Mouse)
1 x 6 pin mini-DIN Female (PS/2 Mouse)
1 x HD-15 Female (VGA/SVGA) |
Performance |
|---|
| Video Resolution | 1920 x 1440 Max @ 200MHz |
Environmental |
|---|
| RoHS | Yes |
Certification(s) |
|---|
| CE | Yes |
| FCC | Yes |
Packaging Information |
|---|
| Package Quantity | 1 |
| Product Weight | 3.2 lbs [1.5kg] |
| Package Weight | 4.3 lbs [2kg] |
Contents |
|---|
| Included in Package | 1 - KVM Switch |
| 1 - DC9V Power Adapter |
| 2 - Rack Rails |
| 8 - Screws |
| 1 - Manual |
