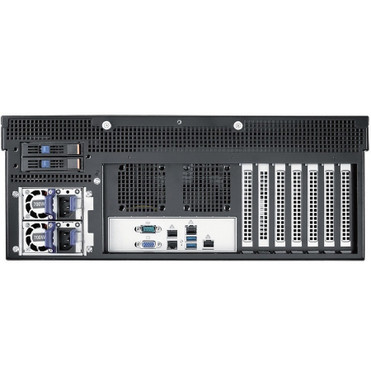

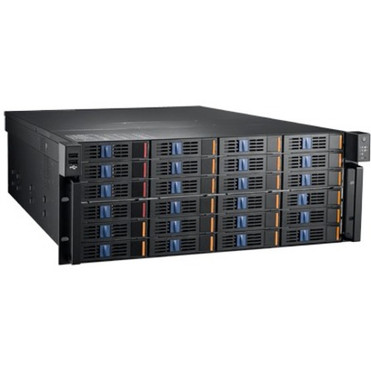

Advantech 4U Storage Chassis for ATX/EATX Serverboard with 24 Hot-swap Drive Bays - Rack-mountable - 4U - 26 x Bay - 2 x 800 W - Power (HPC-8424SE-R8A1E)
Write a Review
Advantech
Advantech 4U Storage Chassis for ATX/EATX Serverboard with 24 Hot-swap Drive Bays - Rack-mountable - 4U - 26 x Bay - 2 x 800 W - Power (HPC-8424SE-R8A1E)
-
Business Pricing
Volume deals available
-
IT Experts
Consulting & support
-
Config Service
From PC to server
-
Canada Stocked
Toronto - Alberta - BC
- Whether you are a lefty or a righty, the symmetrically shaped mouse suits both
- USB Type A connectivity for a easy connection
- Optical LED for smoother movement and hassle-free performance
- 4U Storage Chassis for ATX/EATX Serverboard with 24 Hot-swap Drive Bays
- 1 x Slide Rail Kit
Motherboard Supported: ATX,EATX,Micro ATX
Number of Fans Installed: 4
Installed Fan Size: 3.15" (80 mm)
Number of External 2.5" Bays: 2
Number of External 2.5"/3.5" Bays: 24
Number of Total Expansion Bays: 26
Total Number of Expansion Slots: 6
Total Number of USB Ports: 2
Power Supply Installed: Yes
Number of Power Supplies Supported: 2
Number of Power Supplies Installed: 2
Power Supply Wattage: 800 W
Compatible Rack Unit: 4U
Form Factor: Rack-mountable
Height: 6.93" (176.02 mm)
Width: 17.24" (437.90 mm)
Depth: 24.41" (620.01 mm)
Weight (Approximate): 68.34 lb (31000 g)
Package Contents:
Country of Origin: China
- Supports micro ATX motherboard to provide a significant number of PCI slots, expansion slots and peripheral ports with enhanced heat dissipation capability
- 26 expansion bays provide enough space to lodge numerous PC components
- Conveniently install a rack. 4U rack units to enable operational activities on the go.
[custom-specifications]
| Specifications | |
| Manufacturer | Advantech Co., Ltd |
| Manufacturer Part Number | HPC-8424SE-R8A1E |
| Manufacturer Website Address | http://www.advantech.com |
| Brand Name | Advantech |
| Product Model | HPC-8424 |
| Product Name | 4U Storage Chassis for ATX/EATX Serverboard with 24 Hot-swap Drive Bays |
| Product Type | Server Case |
| Technical Information | |
| Motherboard Supported | ATX,EATX,Micro ATX |
| Number of Fans Installed | 4 |
| Installed Fan Size | 3.15" (80 mm) |
| Bays | |
| Number of External 2.5" Bays | 2 |
| Number of External 2.5"/3.5" Bays | 24 |
| Number of Total Expansion Bays | 26 |
| I/O Expansions | |
| Total Number of Expansion Slots | 6 |
| Interfaces/Ports | |
| Total Number of USB Ports | 2 |
| Power Description | |
| Power Supply Installed | Yes |
| Number of Power Supplies Supported | 2 |
| Number of Power Supplies Installed | 2 |
| Power Supply Wattage | 800 W |
| Physical Characteristics | |
| Compatible Rack Unit | 4U |
| Form Factor | Rack-mountable |
| Height | 6.93" (176.02 mm) |
| Width | 17.24" (437.90 mm) |
| Depth | 24.41" (620.01 mm) |
| Weight (Approximate) | 68.34 lb (31000 g) |
| Miscellaneous | |
| Package Contents |
|
| Country of Origin | China |
[/custom-specifications]
[custom-user-manual]
Available Documentation:
User-Manual
Manufacturer-Brochure
[/custom-user-manual]
