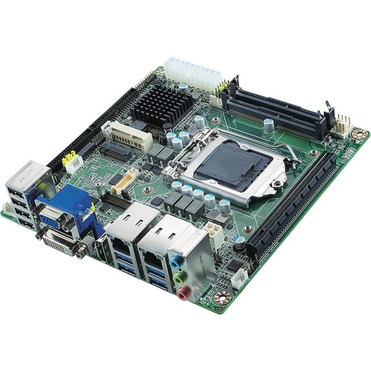

Advantech AIMB-205 Desktop Motherboard - Intel H110 Chipset - Socket H4 LGA-1151 - Mini ITX - 32 GB DDR4 SDRAM Maximum RAM - SoDIMM - (AIMB-205G2-00A1E)
Write a Review
Advantech
Advantech AIMB-205 Desktop Motherboard - Intel H110 Chipset - Socket H4 LGA-1151 - Mini ITX - 32 GB DDR4 SDRAM Maximum RAM - SoDIMM - (AIMB-205G2-00A1E)
-
Business Pricing
Volume deals available
-
IT Experts
Consulting & support
-
Config Service
From PC to server
-
Canada Delivery
UPS, FedEx, Purolator
- Whether you are a lefty or a righty, the symmetrically shaped mouse suits both
- USB Type A connectivity for a easy connection
- Optical LED for smoother movement and hassle-free performance
- AIMB-205 Desktop Motherboard
- 1 x SATA HDD Cable
- 2 x 1-to-4 Serial Ports, 35 cm
- 1 x I/O Port Bracket
- 1 x Startup Manual
Chipset Manufacturer: Intel
Chipset Model: H110
Total Processor Supported: 1
Processor Socket: Socket H4 LGA-1151
Processor Supported: Core i3,Core i5,Core i7,Celeron,Pentium
Number of Memory Slots: 2
Memory Form Factor: SoDIMM
Maximum Memory Supported: 32 GB
Memory Speed Supported: 2400 MHz,2133 MHz
Memory Technology: DDR4 SDRAM
Controller Type: Serial ATA/600
Onboard Video: CPU Dependent Video
Audio Channels: 7.1
Gigabit Ethernet: Yes
Total Number of Expansion Slots: 2
Total Number of PCI Express Slots: 2
Number of PCI Express x16 Slots: 1
Total Number of USB Ports: 8
Number of USB 2.0 Ports: 4
Number of USB 3.0 Ports: 4
VGA: Yes
DisplayPort: Yes
DVI: Yes
Number of Network (RJ-45) Ports: 2
Number of SATA Interfaces: 2
Number of M.2 Interfaces: 1
Total Number of Onboard USB Ports: 6
Number of Onboard USB 2.0 Ports: 6
Form Factor: Mini ITX
Width: 6.70" (170.18 mm)
Depth: 6.70" (170.18 mm)
Package Contents:
Environmentally Friendly: Yes
Environmental Compliance: Restriction of Hazardous Substances (RoHS),Waste Electrical and Electronic Equipment Directive (WEEE)
Country of Origin: China
- Supports Intel® 7th Gen Core™ & 6th Gen Core™ i processor /Pentium / Celeron (LGA1151) with Intel H110 chipset
- Two 260-pin SO-DIMM up to 32GB DDR4 2400/2133 MHz SDRAM
- Supports Dual display configuration by multiple interface: DP/DVI-D/VGA/ LVDS(eDP)
- Supports DirectX 12, OpenGL 4.4, OpenCL 2.0 and outstanding 3D graphics performance
- Supports 1 F/S MiniPCIe and 1 M.2 2242 (B key for SSD)
[custom-specifications]
| Specifications | |
| Manufacturer | Advantech Co., Ltd |
| Manufacturer Part Number | AIMB-205G2-00A1E |
| Manufacturer Website Address | http://www.advantech.com |
| Brand Name | Advantech |
| Product Model | AIMB-205 |
| Product Name | AIMB-205 Desktop Motherboard |
| Product Type | Desktop Motherboard |
| Processor & Chipset | |
| Chipset Manufacturer | Intel |
| Chipset Model | H110 |
| Total Processor Supported | 1 |
| Processor Socket | Socket H4 LGA-1151 |
| Processor Supported | Core i3,Core i5,Core i7,Celeron,Pentium |
| Memory | |
| Number of Memory Slots | 2 |
| Memory Form Factor | SoDIMM |
| Maximum Memory Supported | 32 GB |
| Memory Speed Supported | 2400 MHz,2133 MHz |
| Memory Technology | DDR4 SDRAM |
| I/O Controller | |
| Controller Type | Serial ATA/600 |
| Video | |
| Onboard Video | CPU Dependent Video |
| Audio | |
| Audio Channels | 7.1 |
| Network & Communication | |
| Gigabit Ethernet | Yes |
| I/O Expansions | |
| Total Number of Expansion Slots | 2 |
| Total Number of PCI Express Slots | 2 |
| Number of PCI Express x16 Slots | 1 |
| Interfaces/Ports | |
| Total Number of USB Ports | 8 |
| Number of USB 2.0 Ports | 4 |
| Number of USB 3.0 Ports | 4 |
| VGA | Yes |
| DisplayPort | Yes |
| DVI | Yes |
| Number of Network (RJ-45) Ports | 2 |
| Onboard Interfaces | |
| Number of SATA Interfaces | 2 |
| Number of M.2 Interfaces | 1 |
| Total Number of Onboard USB Ports | 6 |
| Number of Onboard USB 2.0 Ports | 6 |
| Physical Characteristics | |
| Form Factor | Mini ITX |
| Width | 6.70" (170.18 mm) |
| Depth | 6.70" (170.18 mm) |
| Miscellaneous | |
| Package Contents |
|
| Environmentally Friendly | Yes |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS),Waste Electrical and Electronic Equipment Directive (WEEE) |
| Country of Origin | China |
[/custom-specifications]
