Aiphone Video Guard Station - 3.5" TFT LCDFull-duplex - 2-wire - Gate Entrance, Intercom System, Indoor (Fleet Network)
Aiphone Video Guard Station - 3.5" TFT LCDFull-duplex - 2-wire - Gate Entrance, Intercom System, Indoor (GT-MKB-N)
Aiphone Video Guard Station - 3.5" TFT LCDFull-duplex - 2-wire - Gate Entrance, Intercom System, Indoor (Fleet Network)
Aiphone Video Guard Station - 3.5" TFT LCDFull-duplex - 2-wire - Gate Entrance, Intercom System, Indoor (GT-MKB-N)

Have questions?

1-844-836-8268

Ask an Experts

  • Canadian Distributor

    Proud Canadian team since 2007

  • IT experts available

    Consulting & Technicians services

  • Configuration services available

    From VoiP phone to Cluster servers

  • Fast Delivery

    Shipped Trough UPS & Purolator

Free Shipping*

Shipping Restrictions

Additional fees may apply for shipments to locations beyond normal service areas and heavy weight or oversize items.

Aiphone Video Guard Station - 3.5" TFT LCDFull-duplex - 2-wire - Gate Entrance, Intercom System, Indoor (GT-MKB-N)

(No reviews) Write a Review
$1,410.41
$1,372.96
$736.01
(You save $674.40 )
SKU: GT-MKB-N
Weight: 4.55 LBS

Pre-order! 🗨️📞

  • Handset for private communication or open voice hands-free for quick communication
  • Standard and emergency calls
  • Communicate to entrance and tenant stations
  • Visitor screening with video
  • Caller ID with call back
  • Full system connectivity
  • Input for an optional video door station (JO-DV)
  • Service button
  • External signaling (requires GT-RY)
  • Surface mount to wall or 3-gang box or desk mount using included stand

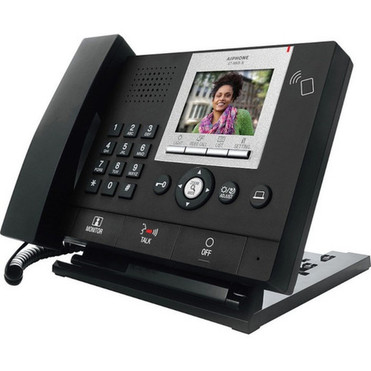

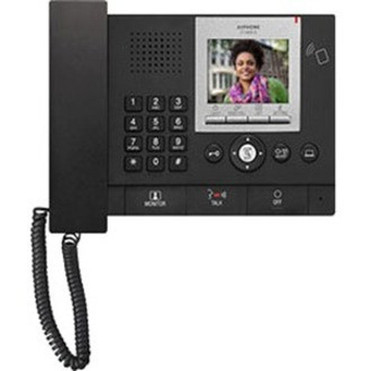

    Marketing Information: The GT-MKB-N is a video guard station for the GT Series multi-tenant video intercom system. It can be surface mounted to the wall or a 3-gang electrical box, or may be desk mounted using the included desk stand. The GT-MKB-N features a keypad for calling both tenant and entrance stations. There is also a handset for private communication. There are up and down buttons to search for a tenant name via the directory, and a door release button to selectively open the entrance where communication is established.

    The GT-MKB-N has two calling modes, standard (via tenant station) and emergency (via GFK-PS). When a standard call is placed, a normal call tone is heard and the name and number of the caller are displayed on screen. When an emergency call is placed, an urgent call tone is heard and the "EMERGENCY" screen with the name and number of the caller is displayed on screen. A standard call is reset by hanging up the GT-MKB-N handset and an emergency call must be reset at the tenant location.

    The GT-MKB-N can be programmed manually, programmed via a PC using the supplied USB cable, or programmed via an Android™ device using NFC. A standard GT Series system will support 2 GT-MKB-Ns while an expanded system will support 4 GT-MKB-Ns.

    The system has one talk path. When the system is occupied, a busy tone will be heard if another call is attempted.
    Communication Mode: Full-duplex
    Wiring Type: 2-wire
    Display Screen Type: TFT LCD
    Input Voltage: 24 V DC
    Height: 6.38" (161.93 mm)
    Width: 9.81" (249.24 mm)
    Depth: 1.50" (38.10 mm)
    Package Contents:
    • Video Guard Station
    • Desk Stand
    • USB Cable

    Application/Usage:
    • Gate Entrance
    • Intercom System
    • Indoor

[custom-specifications]

Specifications
Manufacturer: Aiphone Co., Ltd
Manufacturer Part Number: GT-MKB-N
Manufacturer Website Address: http://www.aiphone.com
Brand Name: Aiphone
Product Model: GT-MKB-N
Product Name: Video Guard Station
Product Type: Video Master Station
Technical Information
Communication Mode: Full-duplex
Wiring Type: 2-wire
Display & Graphics
Display Screen Type: TFT LCD
Power Description
Input Voltage: 24 V DC
Physical Characteristics
Height: 6.38" (161.93 mm)
Width: 9.81" (249.24 mm)
Depth: 1.50" (38.10 mm)
Miscellaneous
Package Contents:
  • Video Guard Station
  • Desk Stand
  • USB Cable

Application/Usage:
  • Gate Entrance
  • Intercom System
  • Indoor

[/custom-specifications]
