- Comprehensive Connectivity
- 100W Power Delivery/Charging
- No Driver Required
- 2 year warranty

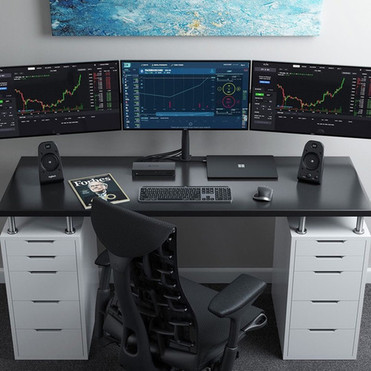

Marketing Information: Triple Display- The dock will support extension or mirroring across the three external displays when used with a Windows Laptop.

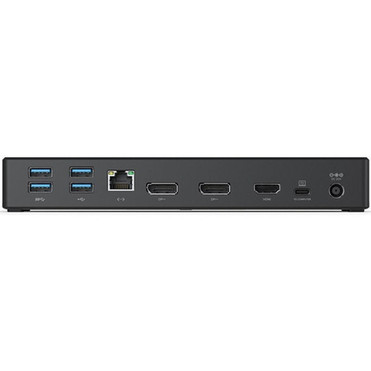

Comprehensive Connectivity- The MA3 dock supports up to three displays at resolutions of up to 4K.The dock provides access to a full range of connections with USB 3.1 Gen 2/10G USB-C and USB 3.1 Gen 1 and USB 2.0 USB-A Ports, Gigabit Ethernet, 3.5mm Combo Jack and SD Card .
100W Laptop Charging/Power Delivery- The dock charges your laptop with up to 100W of power when in use. This allows for a perfect single cable solution to add multiple displays, USB accessories, gigabit ethernet, headphone/Mic and charge the laptop all at the same time.
Connectivity Technology: WiredNumber of Displays Supported: 3Supported Resolutions: 3840 x 2160Screen Mode Supported: 4KMemory Card Reader: YesMemory Card Supported: SDDevice Supported: Notebook/MonitorHost Interface: USB Type CNumber of USB 2.0 Ports: 2Number of USB 3.1 Gen 1 Type-A Ports: 2USB Type-C: YesUSB Type-C Detail: 2 x USB-C 3.1 Gen 2 (10G) BC 1.2Number of RJ-45 Ports: 1Network (RJ-45): YesNumber of DisplayPorts: 2DisplayPort: YesHeadphone/Microphone Combo Port: YesNumber of HDMI Ports: 1HDMI: YesMaximum Power Supply Wattage: 100 WProduct Color: BlackHeight: 11.42" (290 mm)Width: 34.65" (880 mm)Weight (Approximate): 360 gPackage Contents: - Docking Station
- 1 x 170W AC Power Adapter
- Power Cords:
- 1 x US
- 1 x UK
- 1 x EU
- 1 x AY
- 1 x User Manual
Environmentally Friendly: YesCountry of Origin: ChinaLimited Warranty: 2 Year
[custom-specifications]
SpecificationsManufacturer: Alogic
Manufacturer Part Number: DUCMA3
Manufacturer Website Address: http://www.alogic.co
Brand Name: Alogic
Product Name: USB-C Triple DisplayDock - MA3 - with 100W Laptop Charging
Packaged Quantity: 1
Product Type: Docking Station
Technical InformationConnectivity Technology: Wired
Number of Displays Supported: 3
Supported Resolutions: 3840 x 2160
Screen Mode Supported: 4K
Memory Card Reader: Yes
Memory Card Supported: SD
Device Supported: Notebook/Monitor
Interfaces/PortsHost Interface: USB Type C
Number of USB 2.0 Ports: 2
Number of USB 3.1 Gen 1 Type-A Ports: 2
USB Type-C: Yes
USB Type-C Detail: 2 x USB-C 3.1 Gen 2 (10G) BC 1.2
Number of RJ-45 Ports: 1
Network (RJ-45): Yes
Number of DisplayPorts: 2
DisplayPort: Yes
Headphone/Microphone Combo Port: Yes
Number of HDMI Ports: 1
HDMI: Yes
Power DescriptionMaximum Power Supply Wattage: 100 W
Physical CharacteristicsProduct Color: Black
Height: 11.42" (290 mm)
Width: 34.65" (880 mm)
Weight (Approximate): 360 g
MiscellaneousPackage Contents:
- Docking Station
- 1 x 170W AC Power Adapter
- Power Cords:
- 1 x US
- 1 x UK
- 1 x EU
- 1 x AY
- 1 x User Manual
Environmentally Friendly: Yes
Country of Origin: China
WarrantyLimited Warranty: 2 Year
