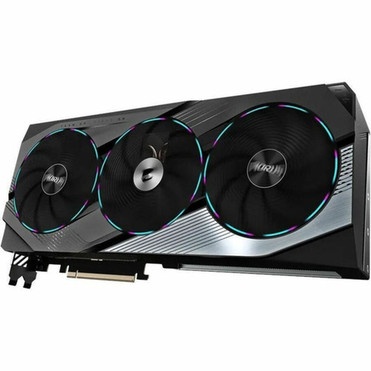

Aorus NVIDIA GeForce RTX 4070 SUPER Graphic Card - 12 GB GDDR6X - 7680 x 4320 - 2.66 GHz Core - 192 bit Bus Width - PCI Express 4.0 - (GV-N407SAORUS M-12GD)

Marketing Information:

NVIDIA Ada Lovelace Architecture | Designed to Give You Superpowers

New Streaming Multiprocessors

Up to 2X performance and power efficiency

Fourth-Gen Tensor Cores

Up to 4X performance with DLSS 3 vs. brute-force rendering

Third-Gen RT Cores

Up to 2X ray tracing performance

WINDFORCE COOLING SYSTEM | THE EVOLVING POWER OF WINDFORCE

The WINDFORCE cooling system features three 108mm newly designed bionic shark fans, alternate spinning, 9 composite copper heat pipes, a large vapor chamber directly touches the GPU, 3D active fans and Screen cooling, which together provide high efficiency heat dissipation

COOLING, UPSCALED. | AORUS BIONIC FAN TECH

The sharks' dermal denticles surrounding their body grant them significant advantages in fluid dynamics. Now AORUS features new Bionic Fan Tech that mimics the scale micro-surfacing and efficiently increases airflow by reducing micro turbulence.

DIRECTLY. SO FAST. LARGE VAPOR CHAMBER & HEAT-PIPE

The large vapor chamber directly contacts the GPU, coupled with the composite heat pipes, which quickly transfers the heat of the GPU and VRAM to the heatsink

THE OTHER WAY AROUND. | ALTERNATE SPINNING

Each fan rotates in different direction to the adjacent one. This special mechanism reduces turbulence and increases air pressure by minimizing the offset occurred between airflows.

CHANNELED AIRFLOW. | ANGULAR FIN DESIGN

The angular and unequal fins height can channel the airflow through the fins and enlarge the contact surface.

MAKE ROOM FOR THE AIRFLOW. | SCREEN COOLING

To create more space for airflow to pass through, the heatsink extends over the PCB and therefore increase the ventilation. This Screen Cooling design provides better heat dissipation

RGB FUSION

The legendary three-ring lighting provides excellent visual enjoyment. You can choose any lighting effect or synchronize with other devices in GIGABYTE CONTROL CENTER .

BUILT STRONG

EXTREME OVERCLOCKING

The graphics card features excellent power phase design to allow the MOSFETs to operate at lower temperatures and provide a more stable voltage output. Load balancing of each MOSFET can effectively improve the overclocking performance and extend the life of the card.

ULTRA DURABLE

Ultra Durable certified highest-grade metal chokes, lower ESR solid capacitors, 2oz copper PCB, and lower RDS(on) MOSFETs, plus over-temperature design to deliver superior performance and longer system life.

FRIENDLY PCB DESIGN

Fully automated production process ensures top quality of the circuit boards and eliminates sharp protrusions of the solder connectors seen on the conventional PCB surface. This friendly design prevents your hands from getting cut or inadvertently damaging components when making your build.

4-YEAR WARRANTY

We want you to experience the best service you have ever had. This is why, on top of our standard 3-year warranty, we would like to offer you an additional 1 year of protection to your graphics card free of charge. You can enjoy a 4-year warranty by registering on the website within 30 days of purchas

API Supported: DirectX 12 Ultimate,OpenGL 4.6

Number of Monitors Supported: 4

Maximum Digital Display Resolution: 7680 x 4320

CUDA Cores: 7168

Features: Triple-fan Cooler,Factory Overclocked

AI-powered: Yes

Chipset Manufacturer: NVIDIA

Chipset Line: GeForce

Chipset Series: RTX

Chipset Model: RTX 4070 SUPER

GPU Clock: 2.66 GHz

Standard Memory: 12 GB

Memory Technology: GDDR6X

Bus Width: 192 bit

Host Interface: PCI Express 4.0

DisplayPort: Yes

Number of DisplayPort Outputs: 3

HDMI: Yes

Number of HDMI Outputs: 1

Power Supply Wattage: 700 W

Power Connector: 1x 16-pin

Form Factor: Plug-in Card

Cooler Type: Fan Cooler

Height: 2.78" (70.60 mm)

Width: 6.02" (153 mm)

Length: 13.46" (342 mm)

Platform Supported: PC
