Marketing Information: Extremely reliable service bypass panels designed for APC InfraStruXure® Type A, Smart-UPS, and Symmetra UPS products.Plug/Connector Type: NEMA L6-30PReceptacles: - 2 x NEMA L6-20R
- 2 x NEMA L6-30R
Protection Type: OverloadLoad Capacity (VA): 5 kWInput Voltage: Output Voltage: Current: 24 AColor Family: BlackProduct Color: BlackForm Factor: Rack-mountableRack Height: 2UHeight: 3.50" (89 mm)Width: 17.01" (432 mm)Depth: 25.98" (660 mm)Weight (Approximate): 13.64 kgPackage Contents: - 19" Rack Mountable 24A Maintenance Bypass Panel
- Installation guide
- Rack mounting brackets
- User manual
Environmentally Friendly: YesEnvironmental Compliance: Restriction of Hazardous Substances (RoHS)Limited Warranty: 2 YearAdditional Warranty Information: 2 years (parts only)
[custom-specifications]
SpecificationsManufacturer: Schneider Electric SA
Manufacturer Part Number: SBP5000RMT2U
Manufacturer Website Address: http://www.schneider-electric.com
Brand Name: APC by Schneider Electric

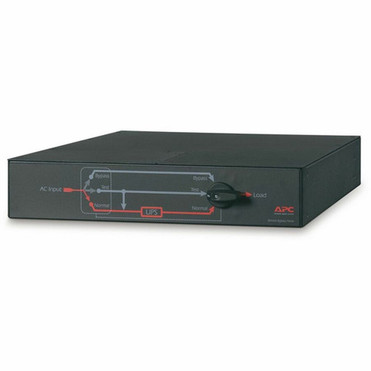

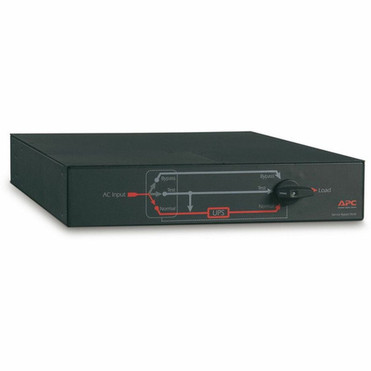

Product Name: 19" Rack Mountable 24A Maintenance Bypass Panel
Product Type: Bypass Panel
Technical InformationPlug/Connector Type: NEMA L6-30P
Receptacles:
- 2 x NEMA L6-20R
- 2 x NEMA L6-30R
Protection Type: Overload
Power DescriptionLoad Capacity (VA): 5 kW
Input Voltage:
Output Voltage:
Current: 24 A
Physical CharacteristicsColor Family: Black
Product Color: Black
Form Factor: Rack-mountable
Rack Height: 2U
Height: 3.50" (89 mm)
Width: 17.01" (432 mm)
Depth: 25.98" (660 mm)
Weight (Approximate): 13.64 kg
MiscellaneousPackage Contents:
19" Rack Mountable 24A Maintenance Bypass Panel Installation guideRack mounting bracketsUser manualEnvironmentally Friendly: Yes
Environmental Compliance: Restriction of Hazardous Substances (RoHS)
WarrantyLimited Warranty: 2 Year
Additional Warranty Information: 2 years (parts only)
