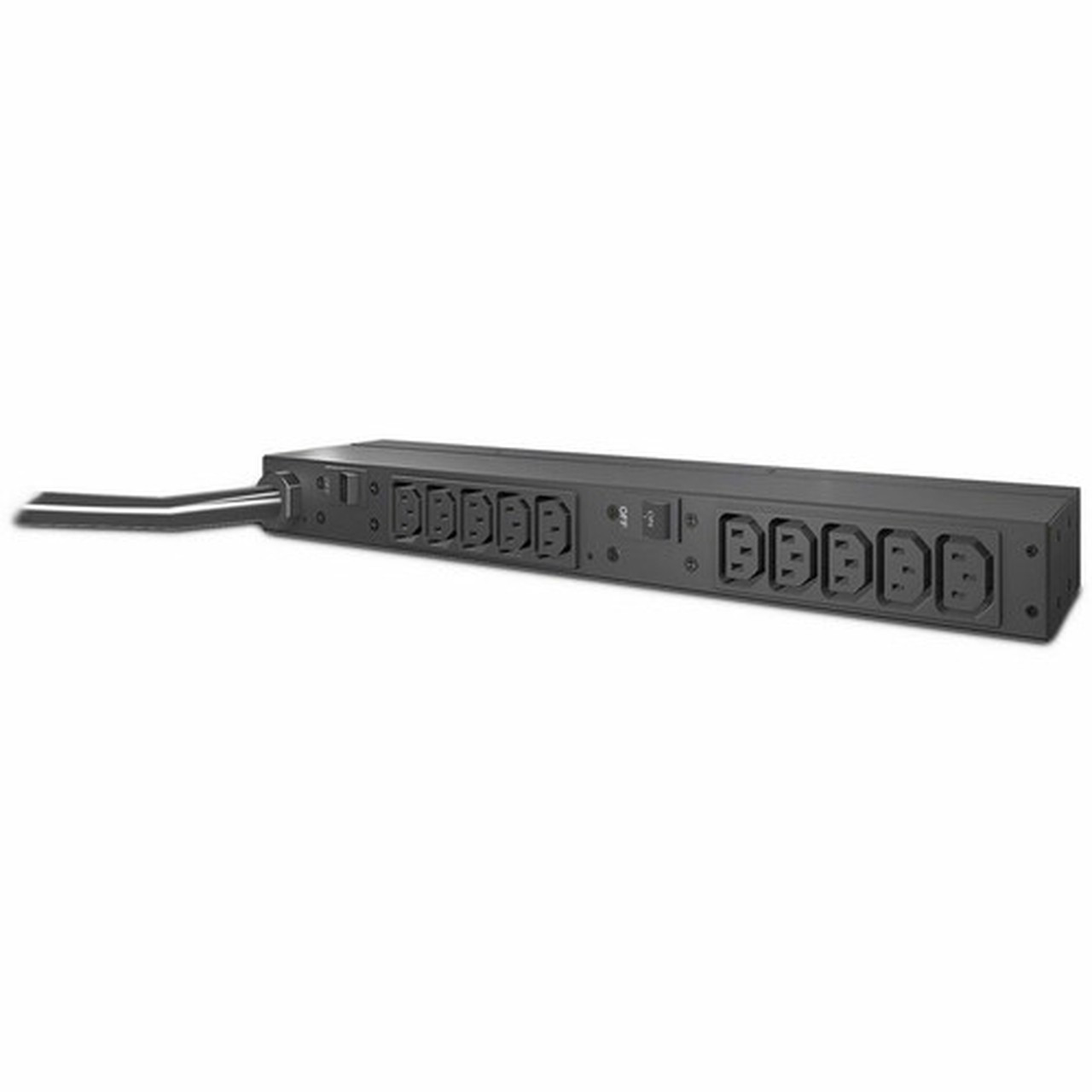

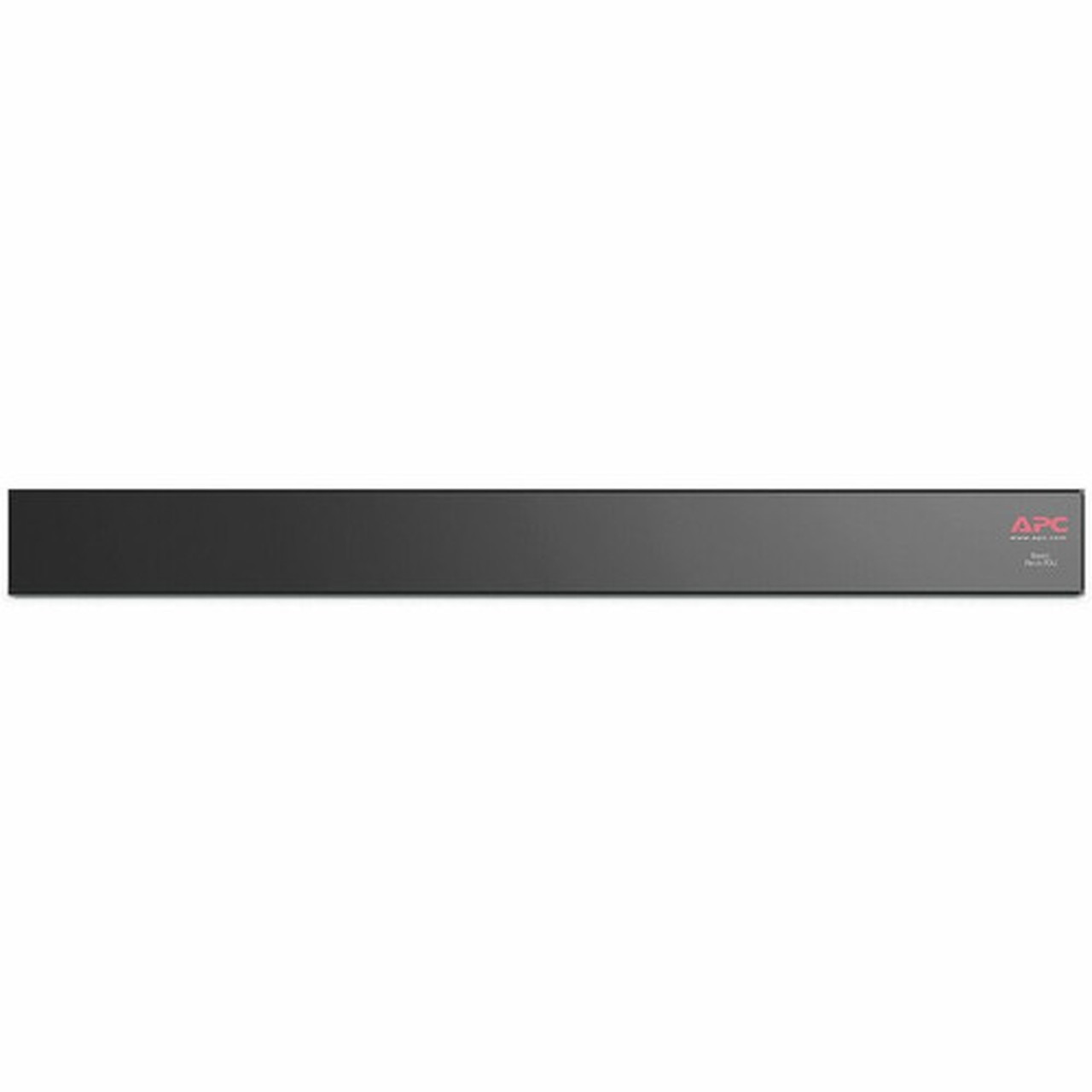

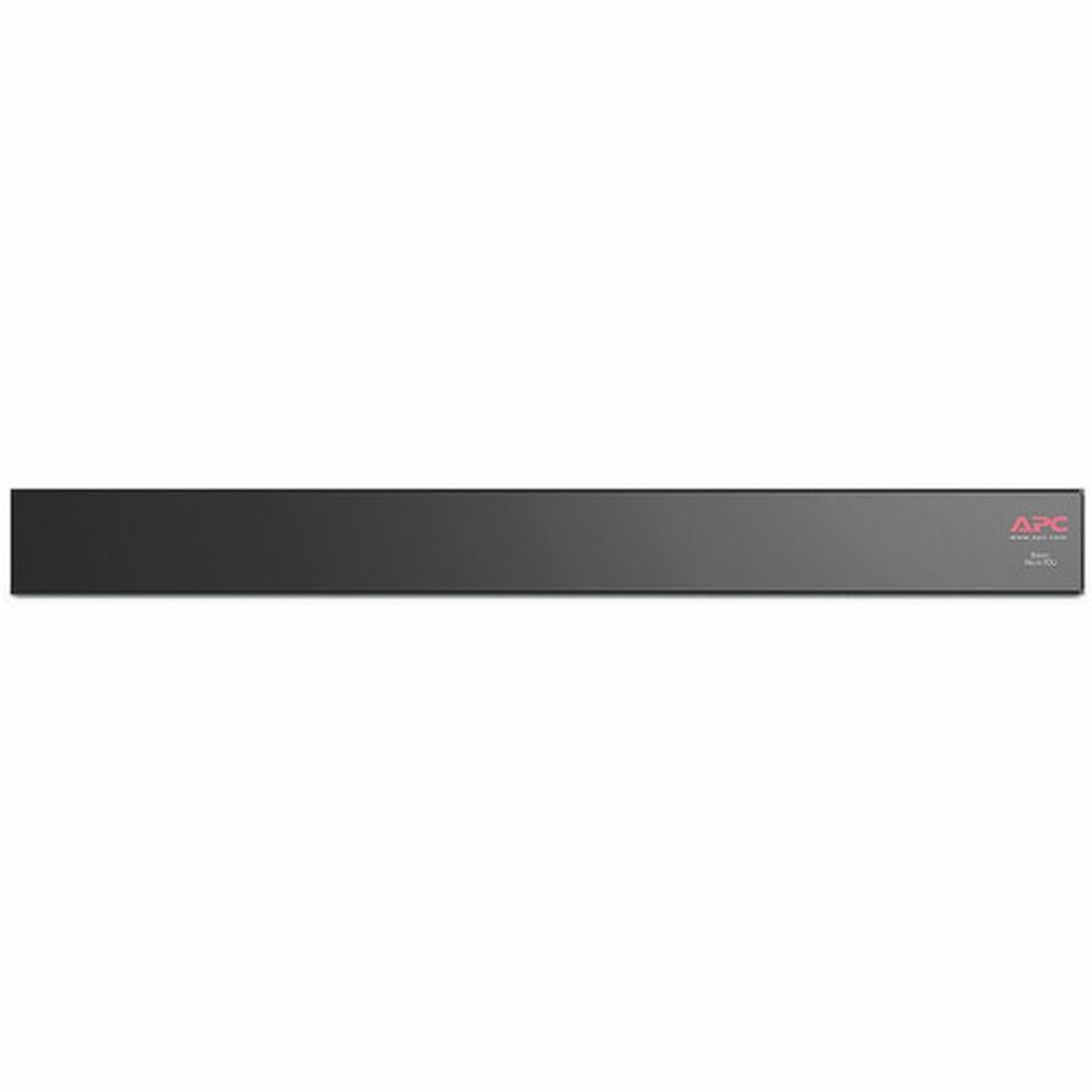

APC Basic Rack 10-Outlets 4.99 kVA PDU - Reliable Rack Power Distribution (AP9571A)
- Basic Rack 10-Outlets 4.99 kVA PDU
- Installation guide
- Rack mounting brackets
- User manual
Marketing Information: Reliable rack power distribution designed to increase manageability and efficiency in the data center The output and input connections are (10) C13 Real-time remote monitoring of connected loads User-defined alarms warn IT and data center managers of potential circuit overloads to prevent accidental power loss to critical equipment.
PDU Type: Basic
Plug/Connector Type: NEMA L6-30P
Receptacle Detail: 10
Input Voltage: 200 V,208 V,230 V
Input Voltage Range: 200 V AC - 240 V AC
Output Voltage: 208 V AC
Power Rating (VA): 4.99 kVA
Mounting Orientation: Horizontal
Mount Type: Rack-mountable
Rack Height: 1U
Cord Length: 12 ft
Height: 1.73" (44 mm)
Width: 17.52" (445 mm)
Depth: 3.03" (77 mm)
Weight (Approximate): 2.55 kg
Package Contents:
Environmentally Friendly: Yes
Environmental Compliance: Restriction of Hazardous Substances (RoHS)
Limited Warranty: 2 Year
Additional Warranty Information: 2 years repair or replace
- PDU provides power control as remote controlled relay & load monitoring
- Basic PDU deliver power to wiring closets, server rooms & equipment racks in a cost-effective way
[custom-specifications]
| Specifications | |
| Manufacturer | Schneider Electric SA |
| Manufacturer Part Number | AP9571A |
| Manufacturer Website Address | http://www.schneider-electric.com |
| Brand Name | APC by Schneider Electric |
| Product Line | Basic Rack |
| Product Name | Basic Rack 10-Outlets 4.99 kVA PDU |
| Product Type | PDU |
| Technical Information | |
| PDU Type | Basic |
| Plug/Connector Type | NEMA L6-30P |
| Receptacle Detail | 10 |
| Power Description | |
| Input Voltage | 200 V,208 V,230 V |
| Input Voltage Range | 200 V AC - 240 V AC |
| Output Voltage | 208 V AC |
| Power Rating (VA) | 4.99 kVA |
| Physical Characteristics | |
| Mounting Orientation | Horizontal |
| Mount Type | Rack-mountable |
| Rack Height | 1U |
| Cord Length | 12 ft |
| Height | 1.73" (44 mm) |
| Width | 17.52" (445 mm) |
| Depth | 3.03" (77 mm) |
| Weight (Approximate) | 2.55 kg |
| Miscellaneous | |
| Package Contents | |
| Environmentally Friendly | Yes |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS) |
| Warranty | |
| Limited Warranty | 2 Year |
| Additional Warranty Information | 2 years repair or replace |
[/custom-specifications]
